Initial Inspection & Site Condition

What initially appeared to be a minor bathroom leak quickly raised concerns during our first visit.

These images capture the condition of the property at the time of inspection — where visible moisture, concealed pipework, and early signs of system stress indicated that the issue extended far beyond a simple leak.

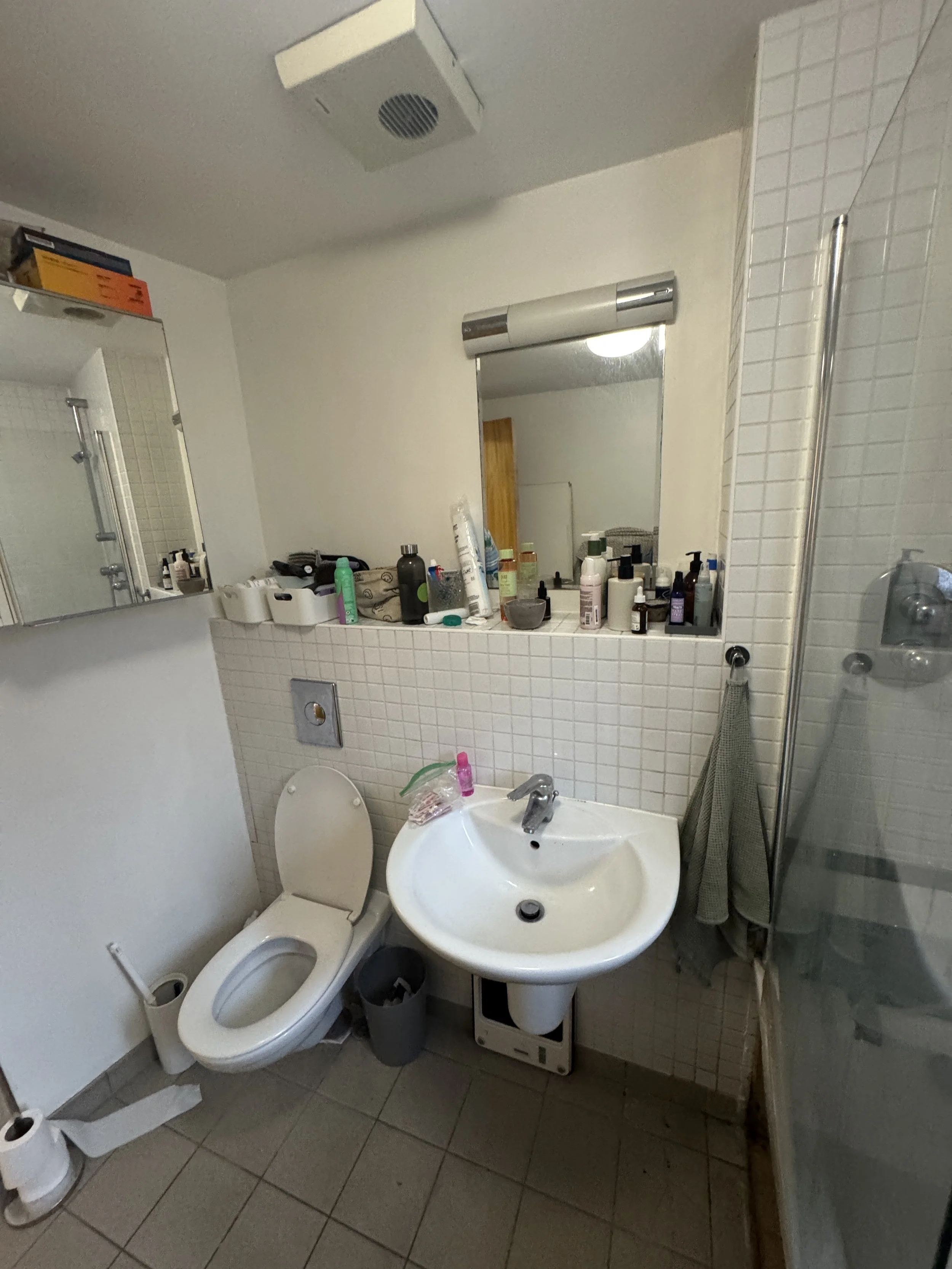

A small bathroom with a toilet, a white sink, a mirror above the sink, and a shower with glass doors. The counter has various toiletries, and a towel hangs on a hook near the shower.

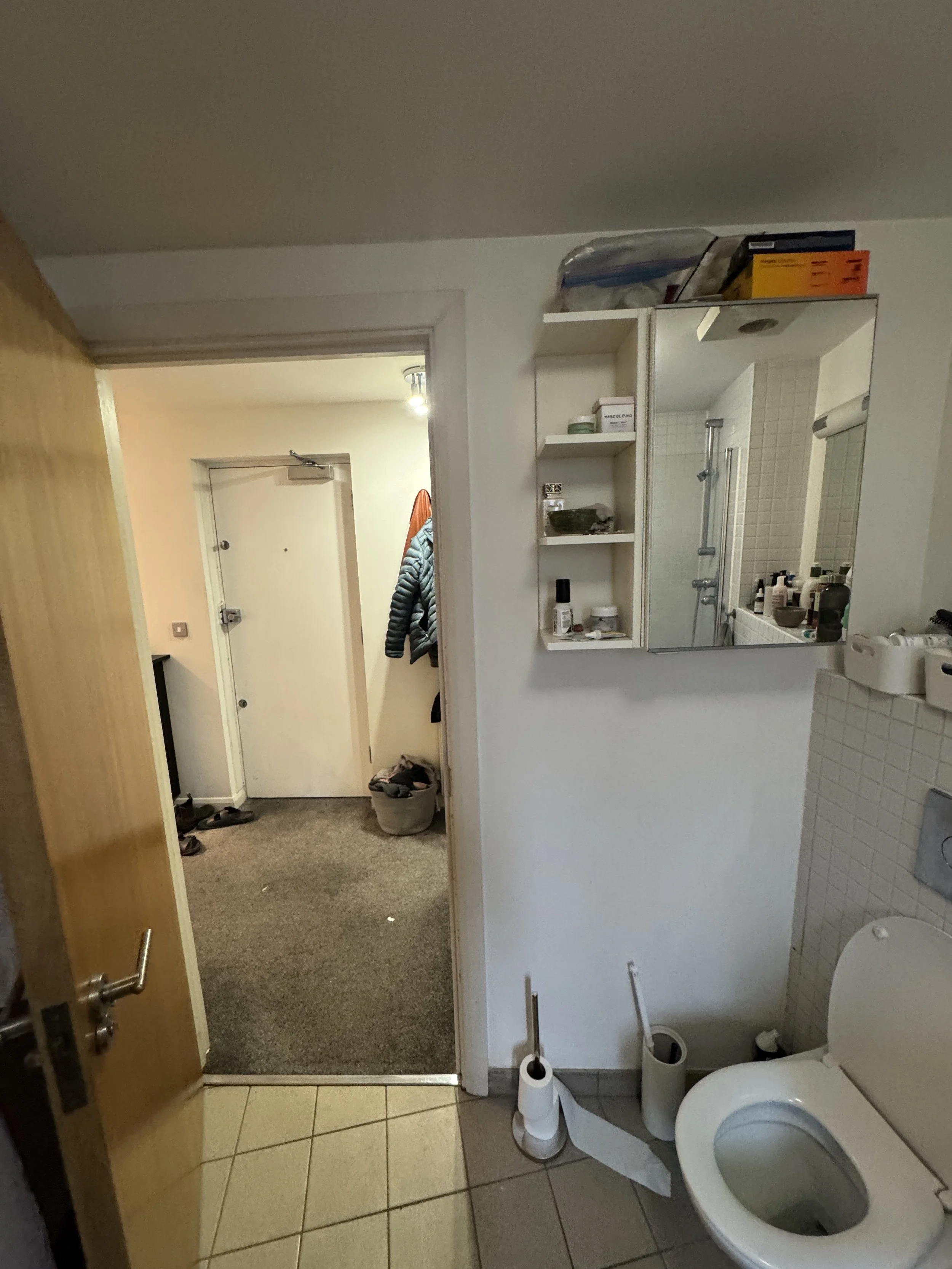

A small bathroom with a white toilet, and a mirrored cabinet above the sink. Toilet paper rolls and cleaning supplies are on the floor beside the toilet. To the right of the mirror, part of a shower stall with a glass door can be seen. The bathroom i

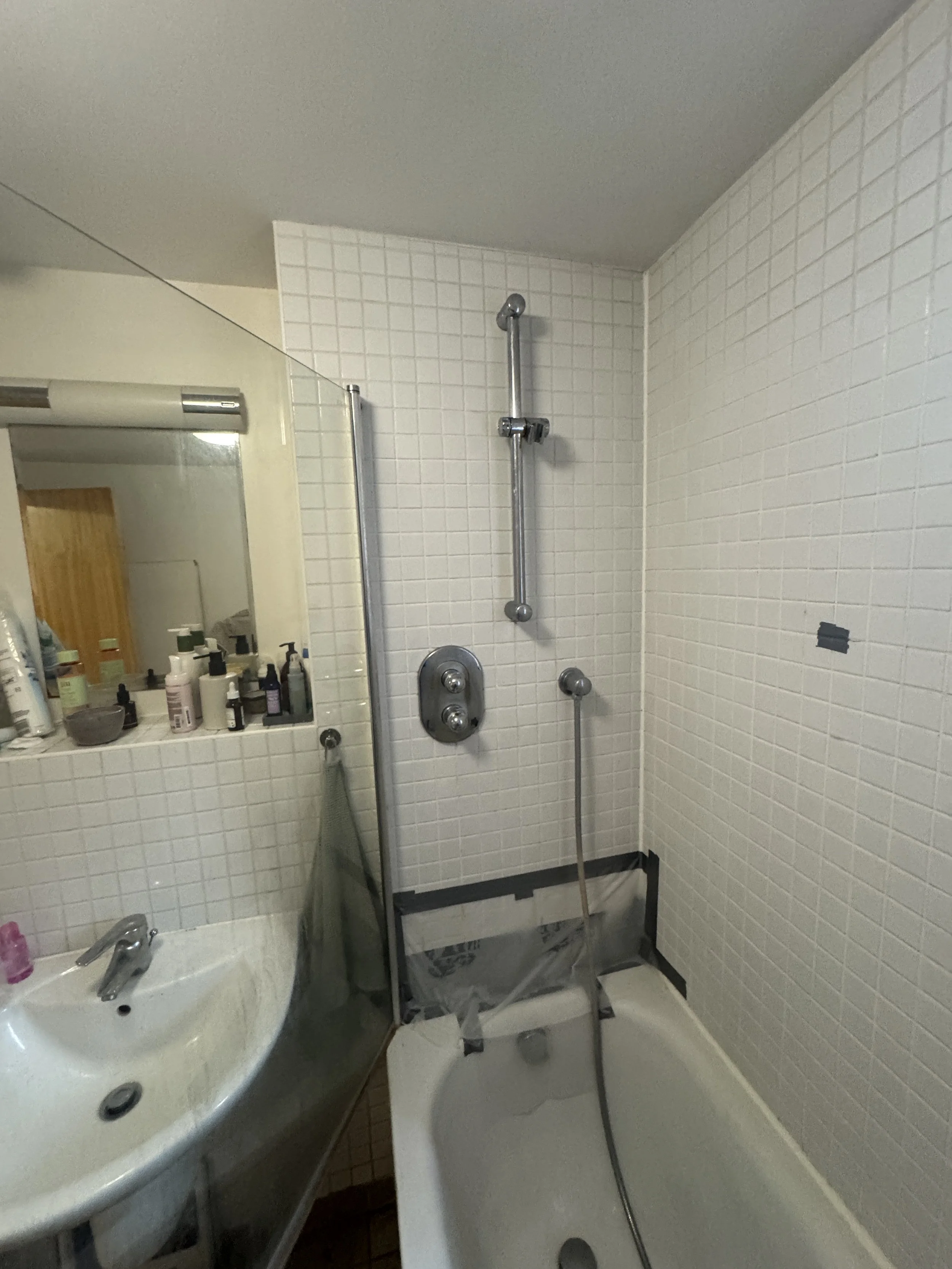

Bathroom with a shower chair, grab bars, a small white bathtub, a sink with toiletries, and a mirror.

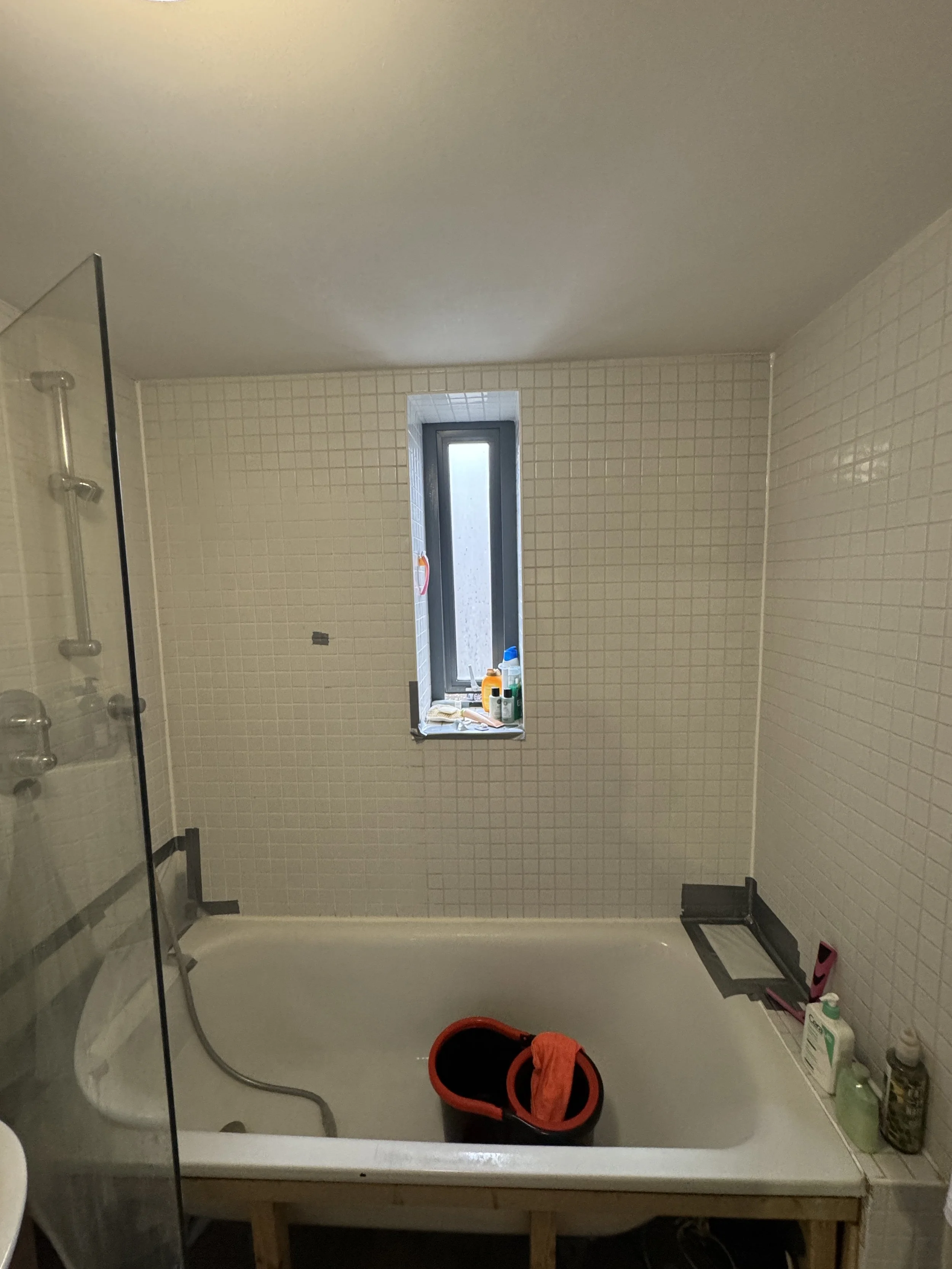

Bathroom with a small window, beige tiled walls, and a shower enclosure with a glass door. There are cleaning supplies and personal care items on the windowsill, and a small trash bin on the floor. The image is slightly tilted, showing the bathroom f

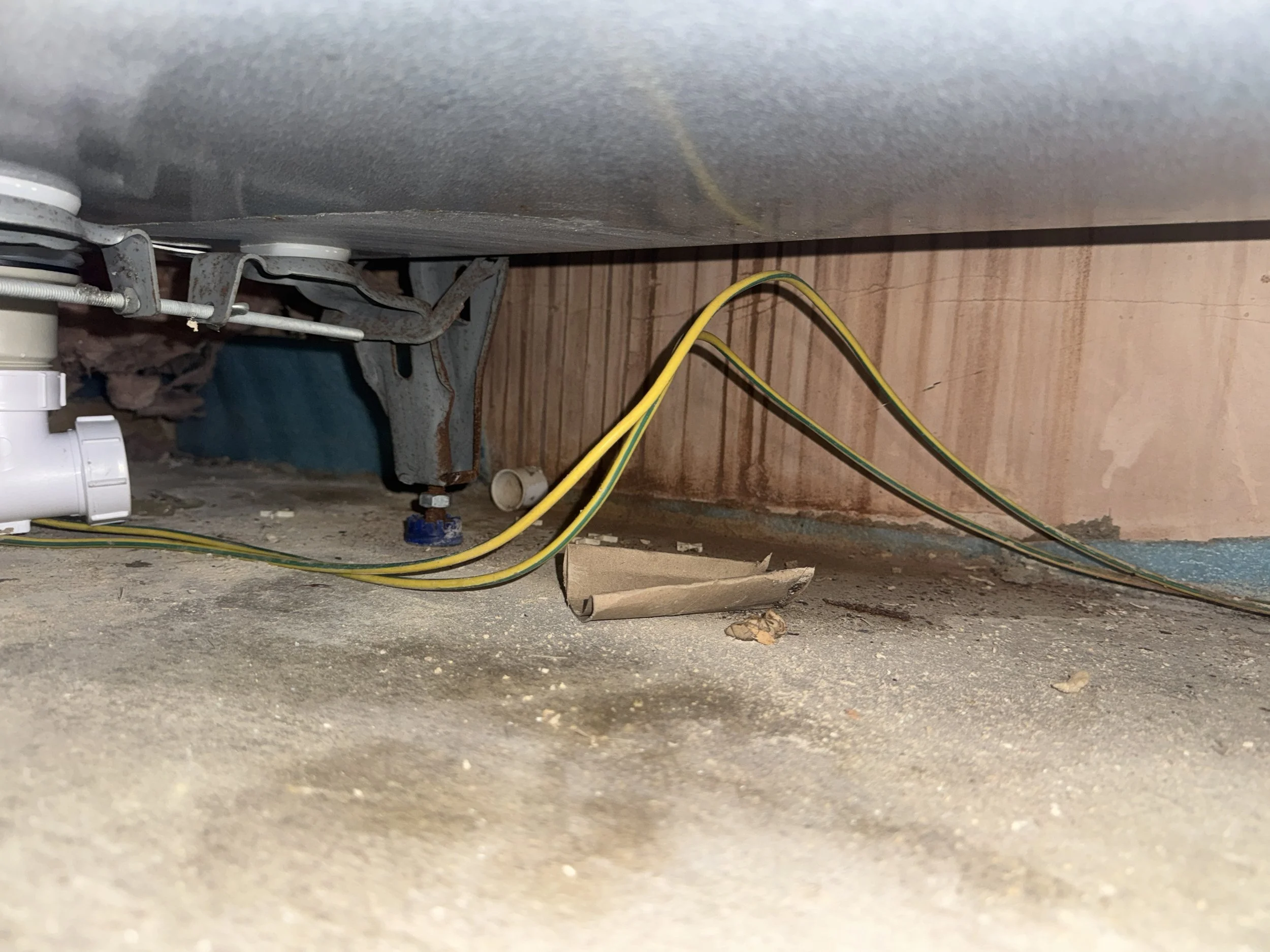

Underneath a kitchen sink showing the pipes, plumbing, and electrical wires attached to the wall and floor.

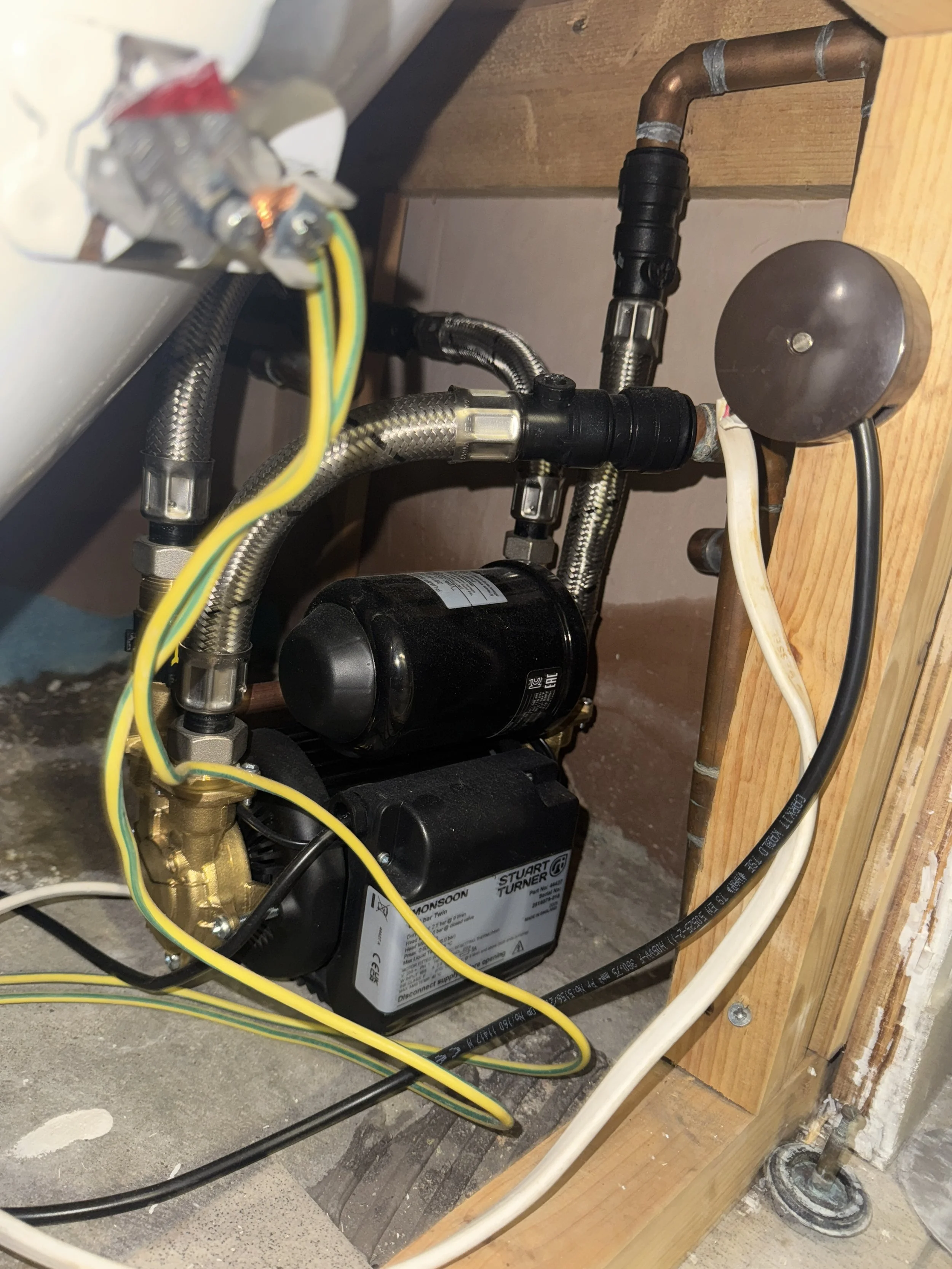

Various pipes, hoses, and a black water pump with a label, mounted on a wooden board in a plumbing installation.

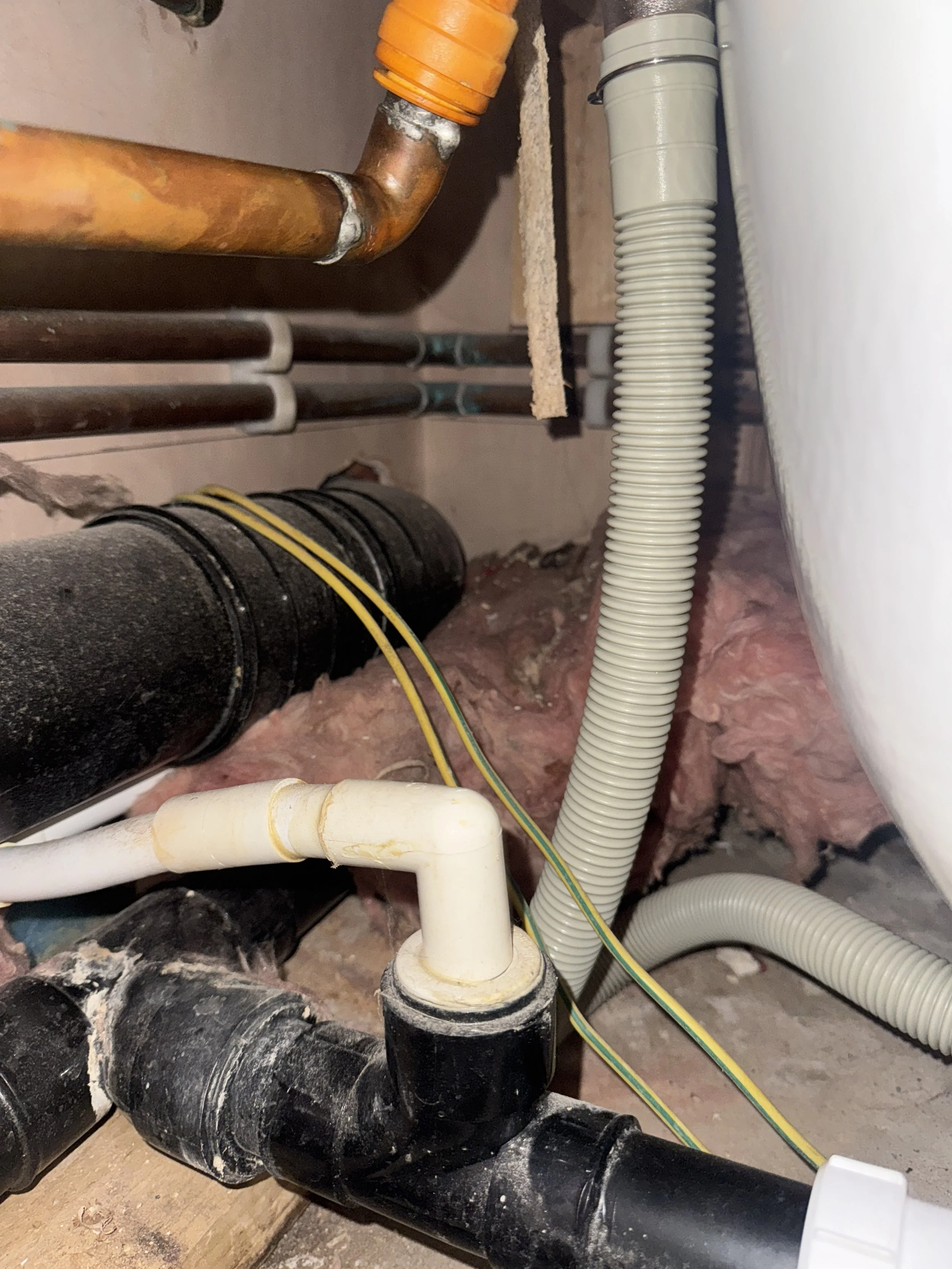

A close-up view of plumbing pipes and tubing under a sink or toilet, including black, white, and metallic pipes and flexible tubing, with some corrosion and dusty debris.

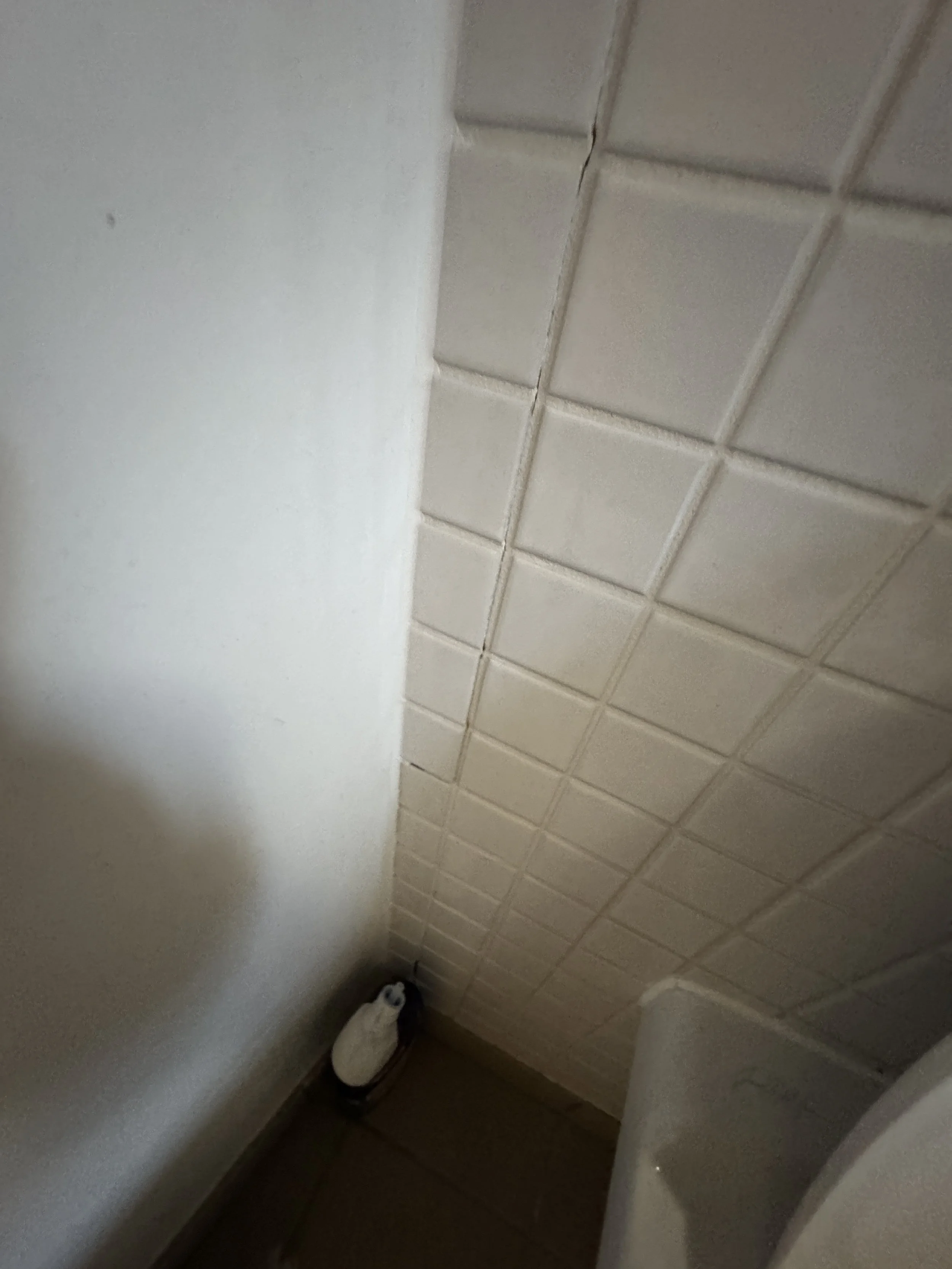

A bathroom corner with tiled wall, a white toilet paper roll, tissue box on the floor, and part of a toilet bowl.

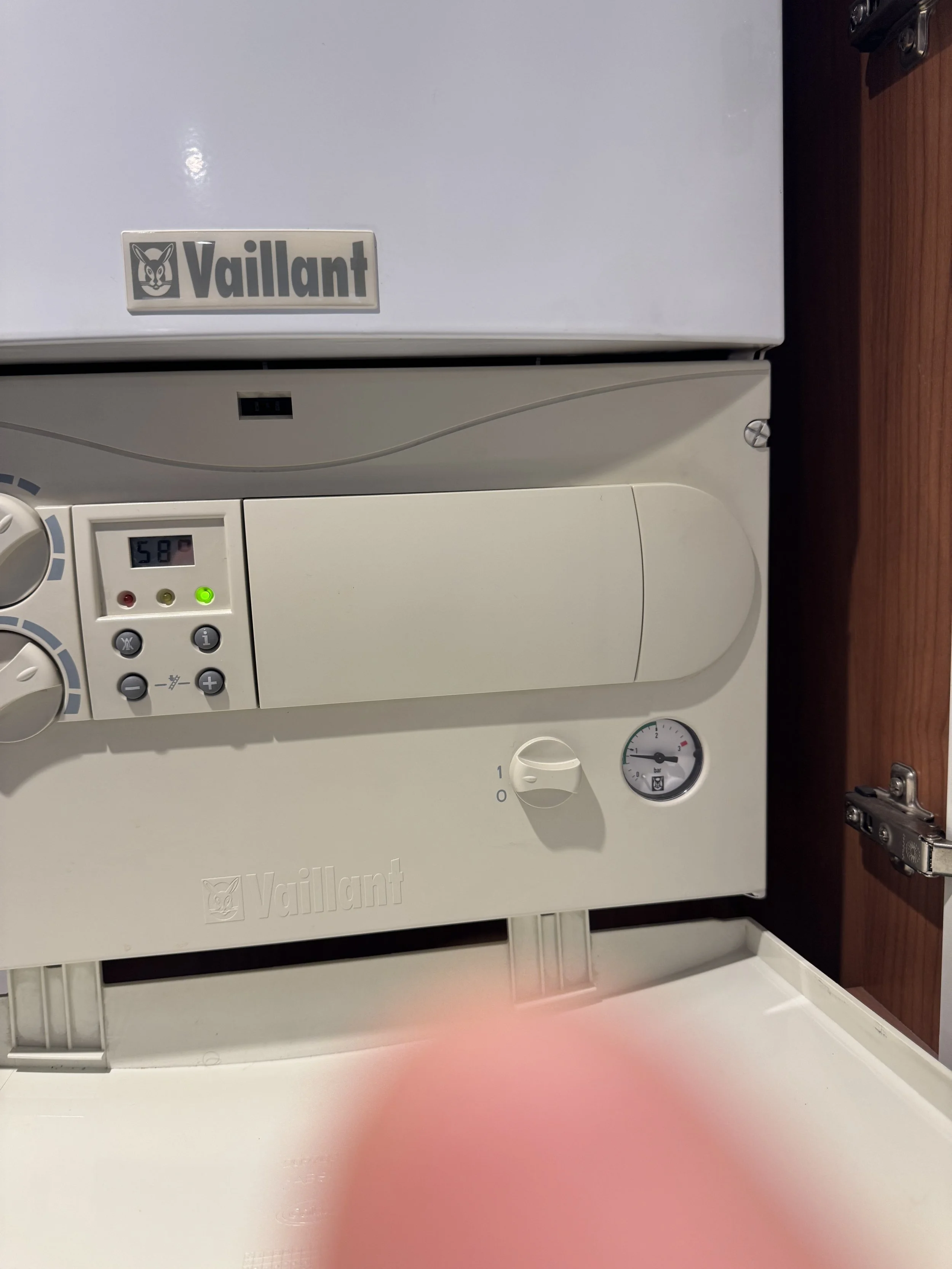

A close-up of a Vaillant boiler mounted on a wall with a wooden panel nearby.

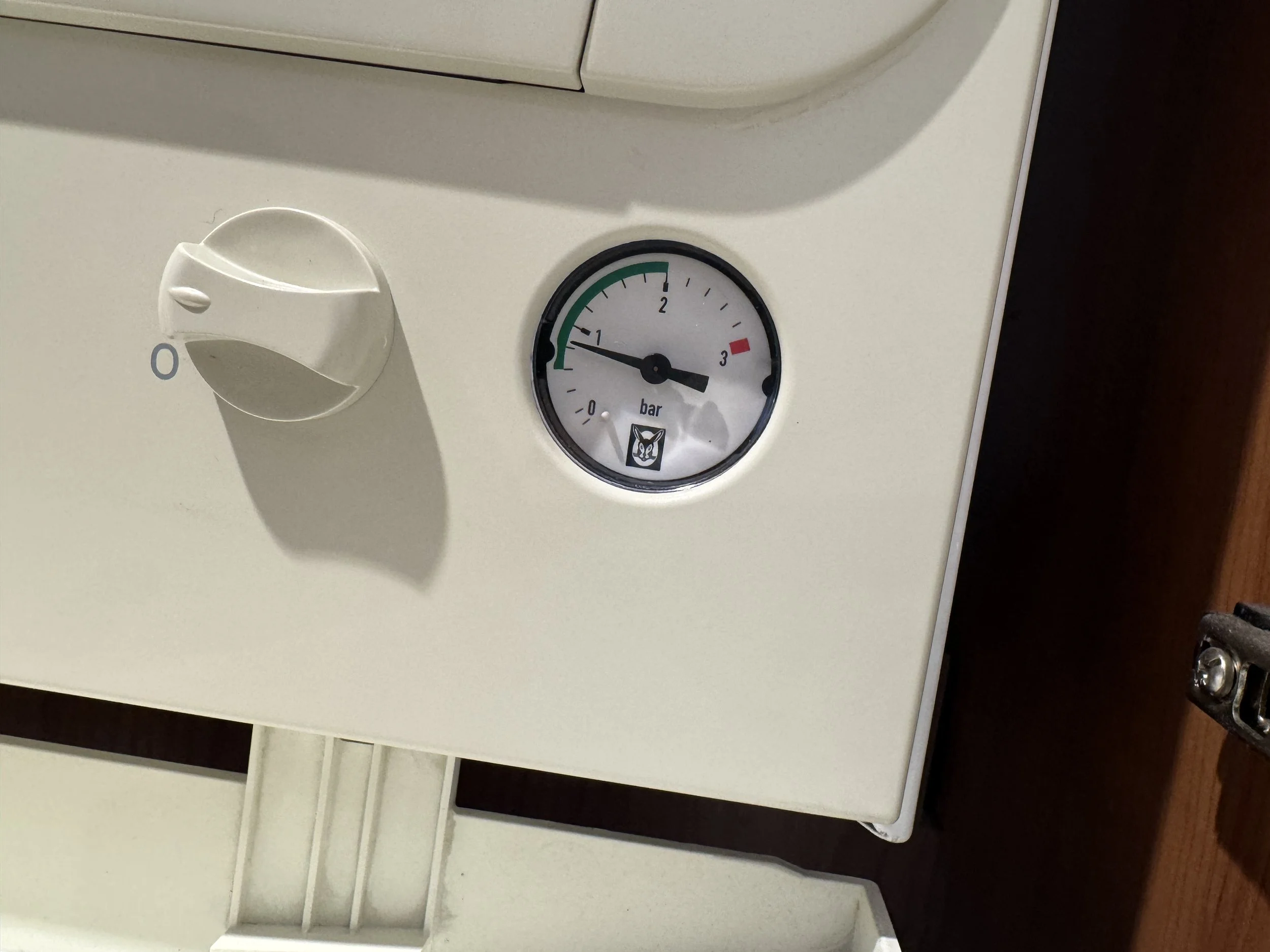

Close-up of a white electronic device with a pressure gauge and a control knob.

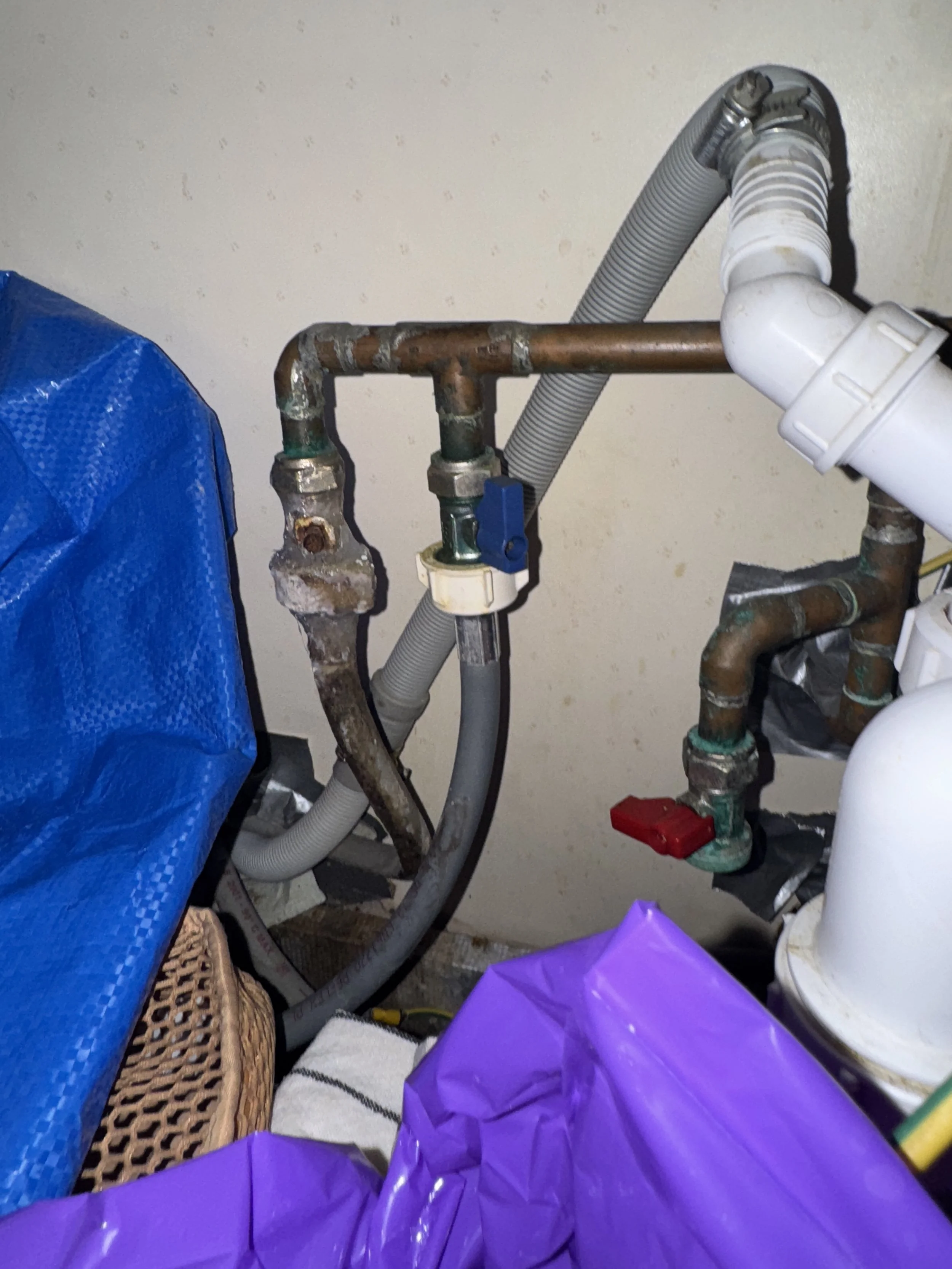

A close-up of plumbing pipes and fittings with a blue cover on the left and purple plastic objects in the foreground.

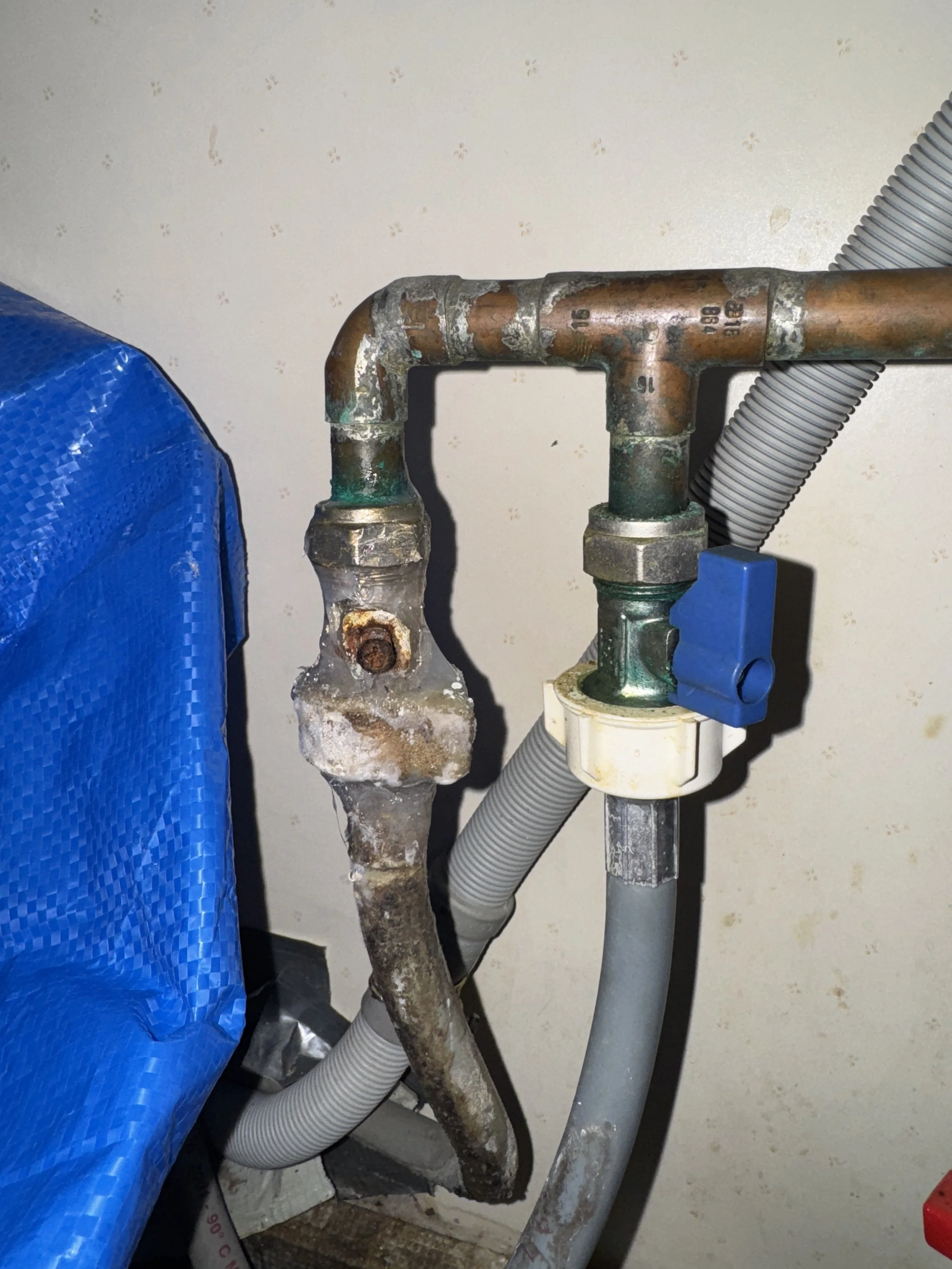

Close-up of rusty plumbing and pipes against a wall, with a blue pipe insulation and gray flexible tubing visible.

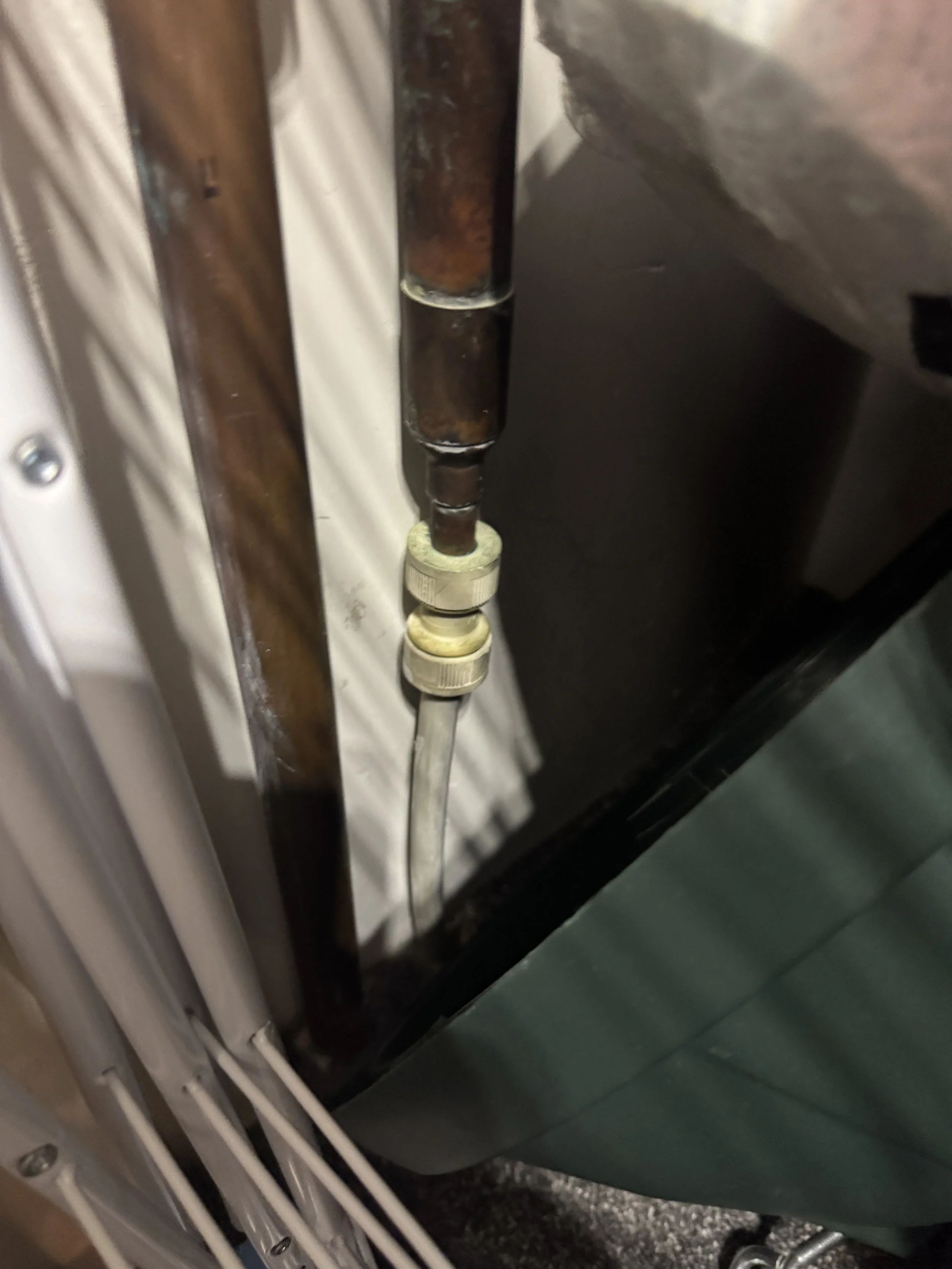

A close-up image of a rusty metallic pipe connected to a clear plastic tube with a white plastic valve at the end, located near a wooden surface and some electronic or metal components.

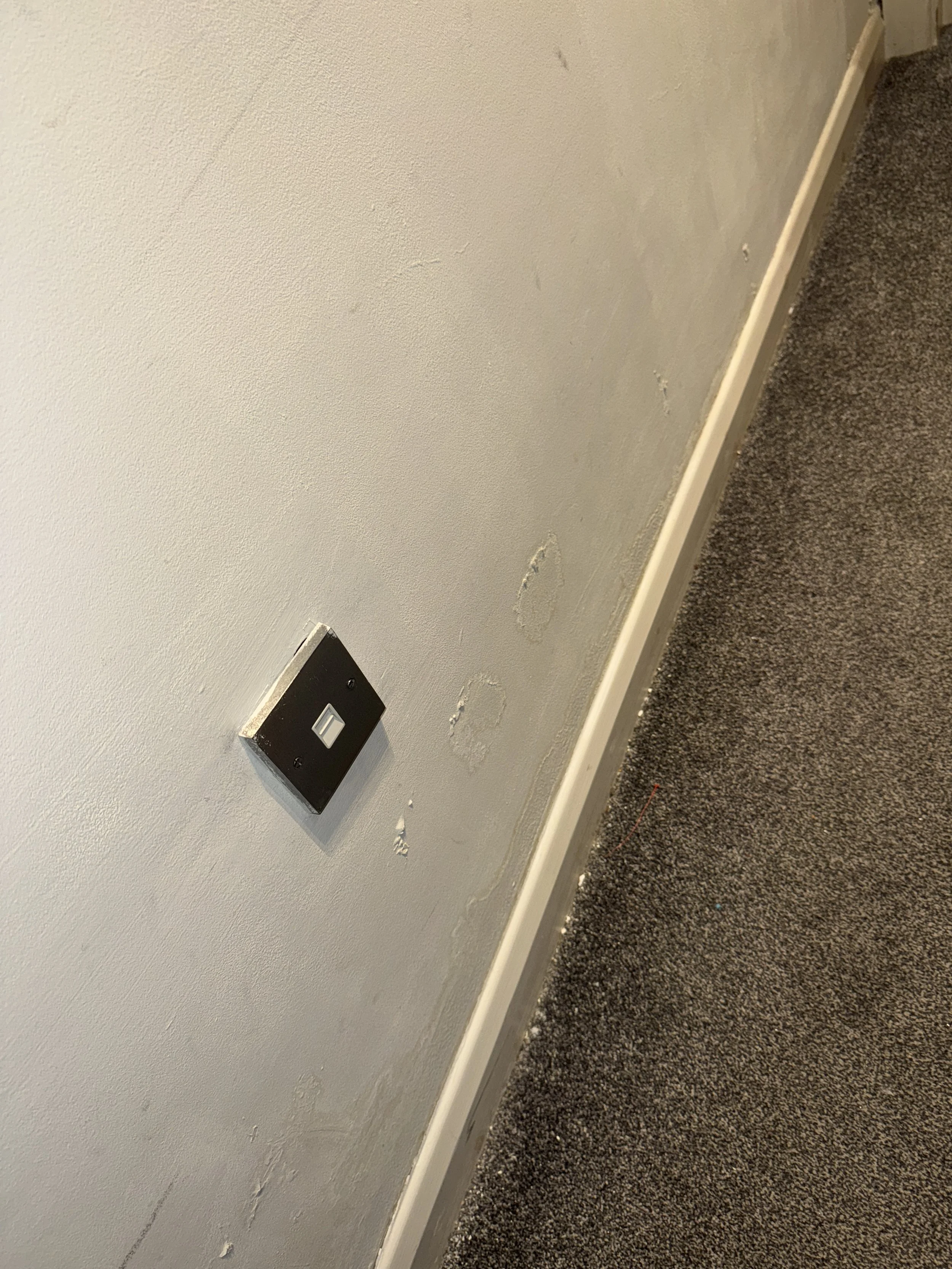

A wall with a black electrical outlet plate, removed patches of paint, and a gray carpeted floor.

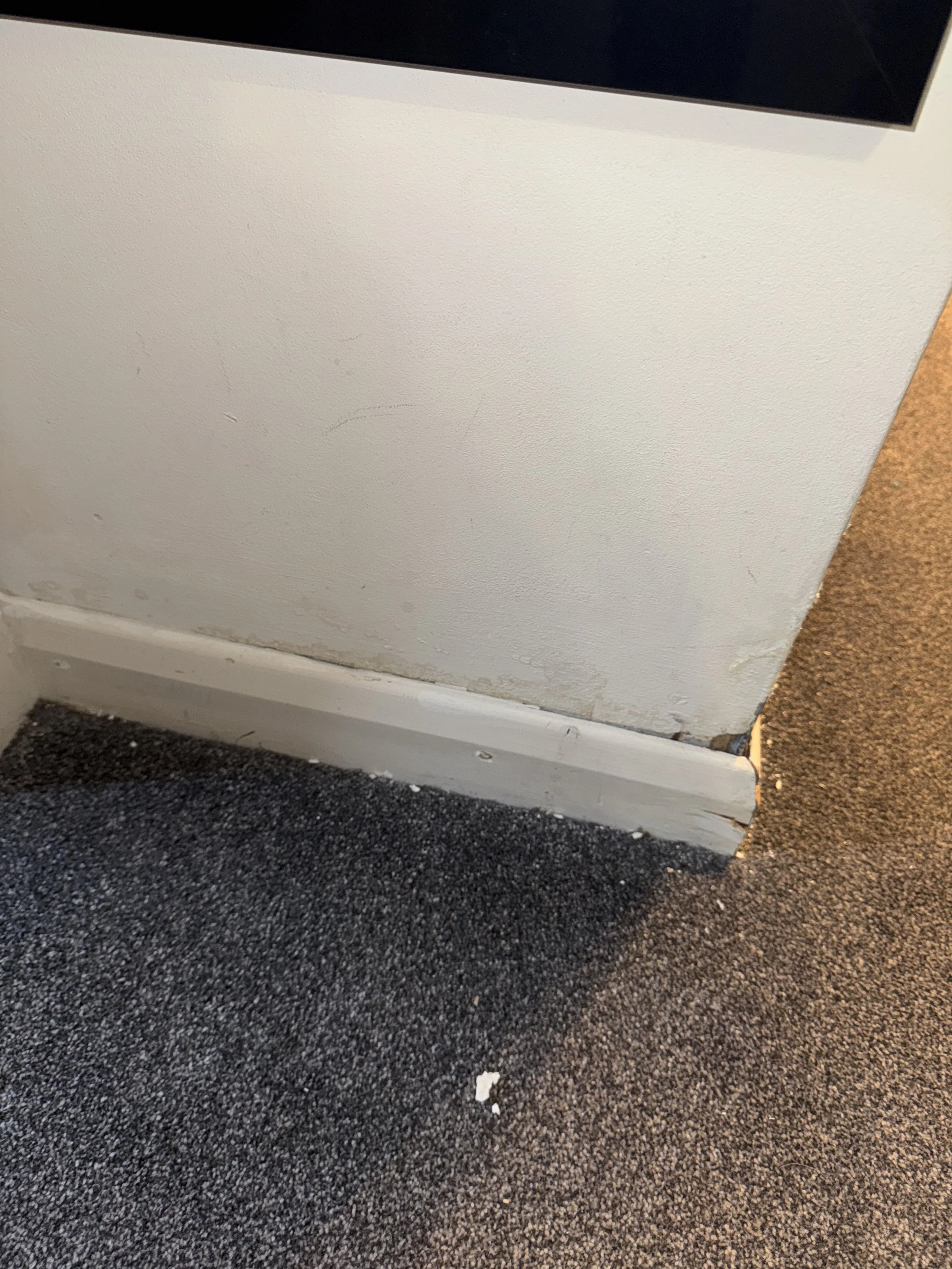

Close-up of a white wall with some scratches and marks near the bottom, next to a dark gray carpeted floor with some small debris.

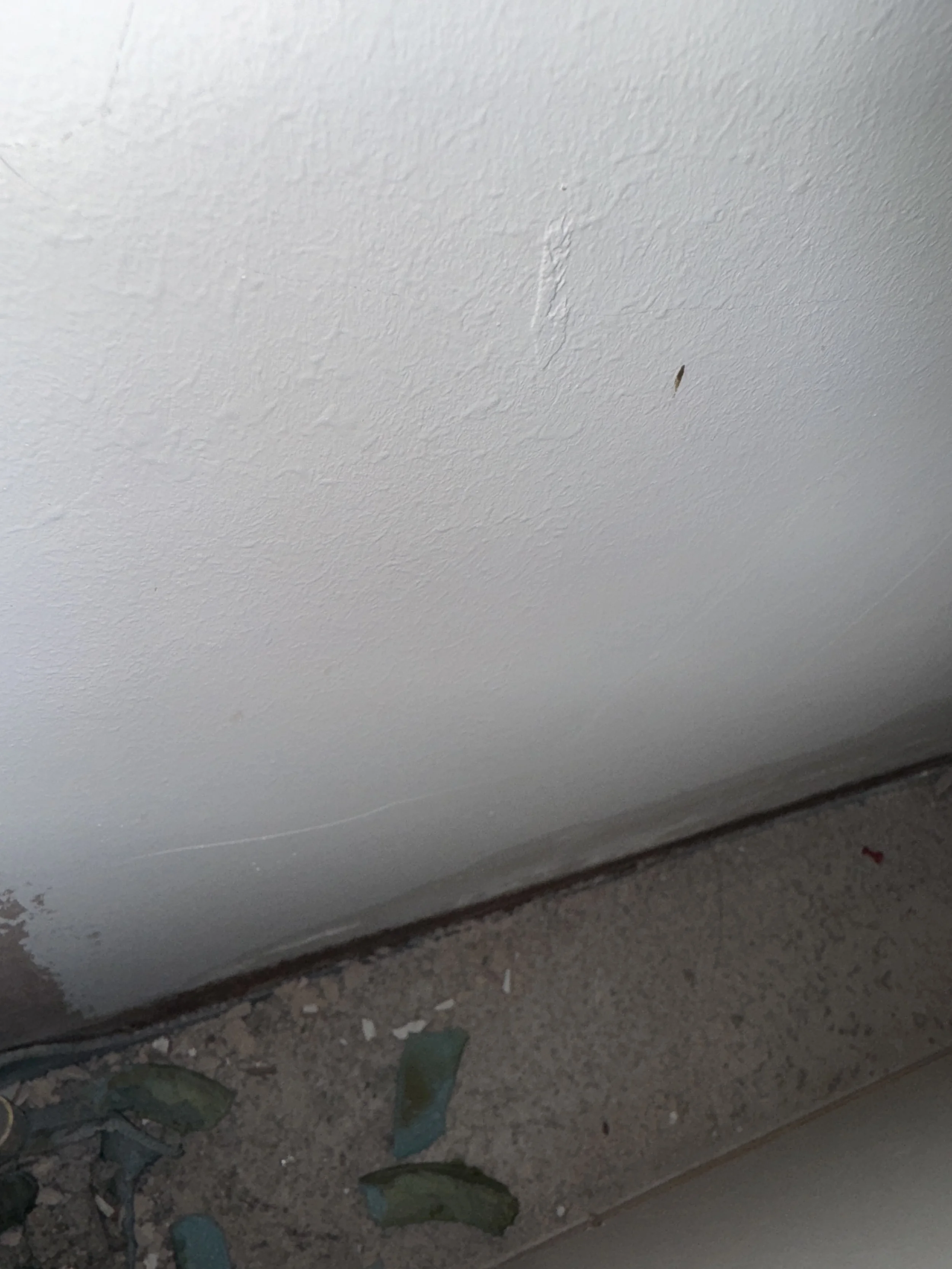

Close-up of a white painted wall with chipped paint and a small bug near the bottom. The lower part of the wall meets a side surface with peeling paint and debris on the floor.

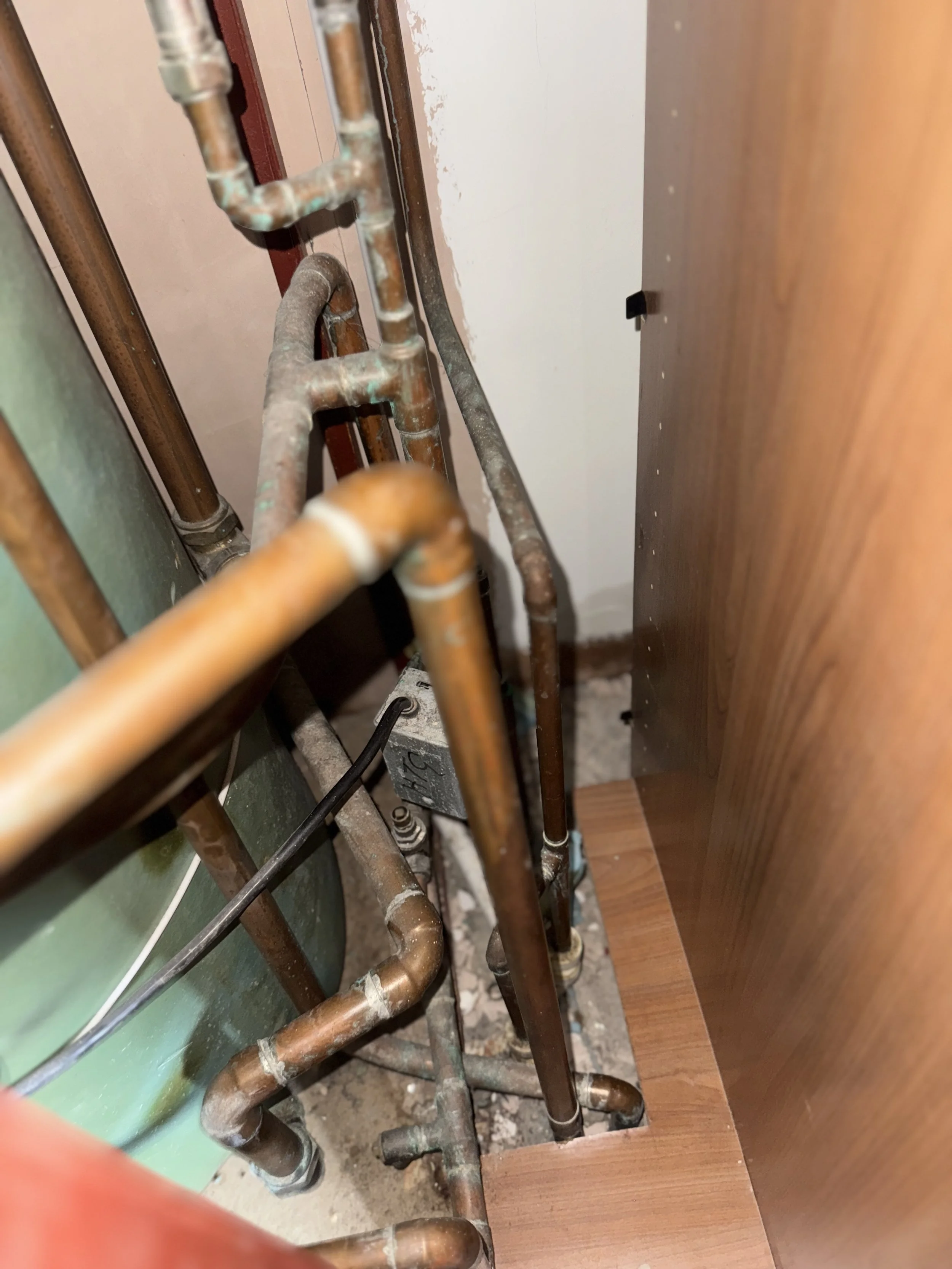

Close-up of copper plumbing pipes and fittings against a wall, in a construction or renovation setting.

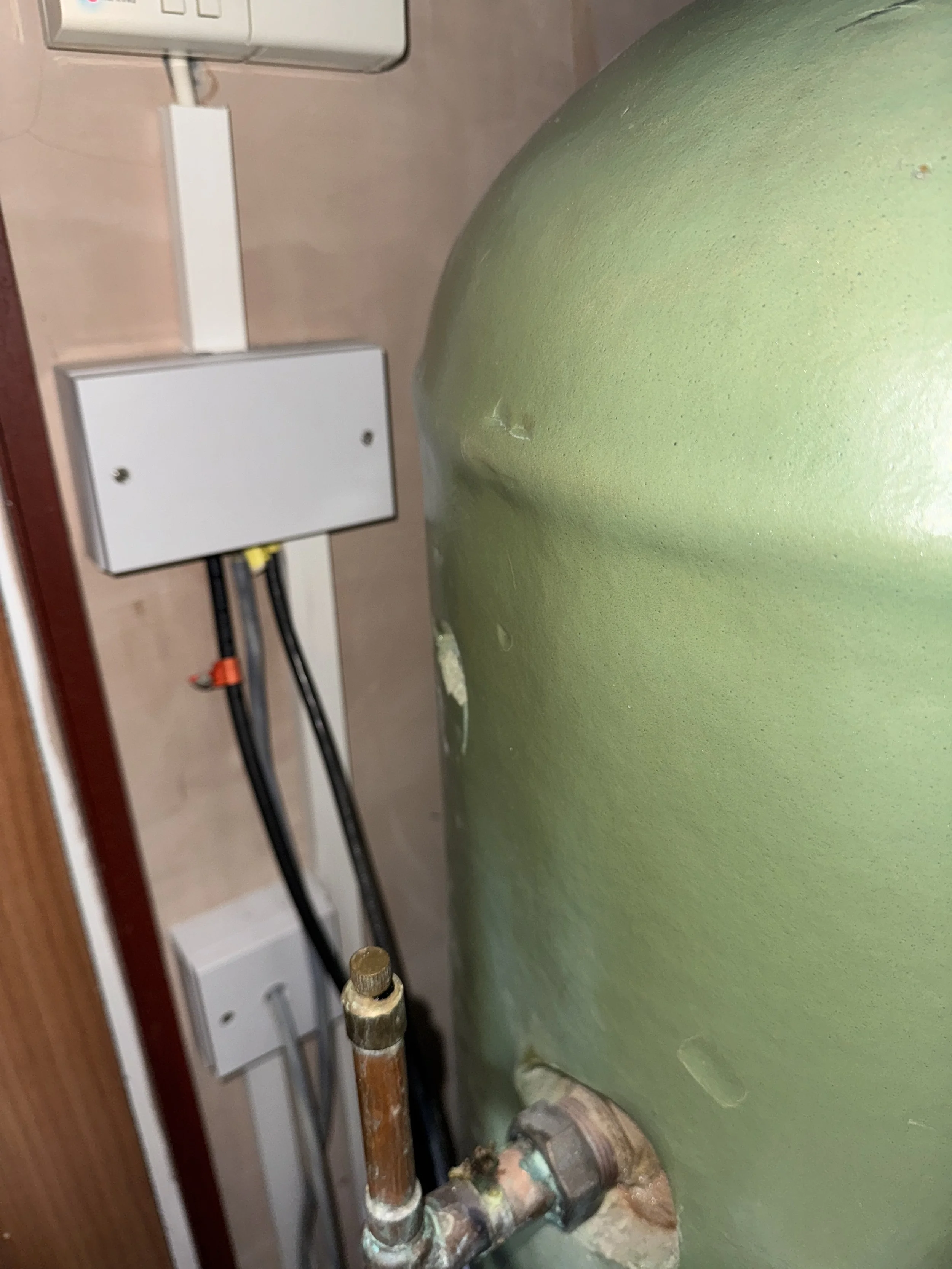

Close-up of pipes and electrical box mounted on a wall, next to a large green tank with water droplets.

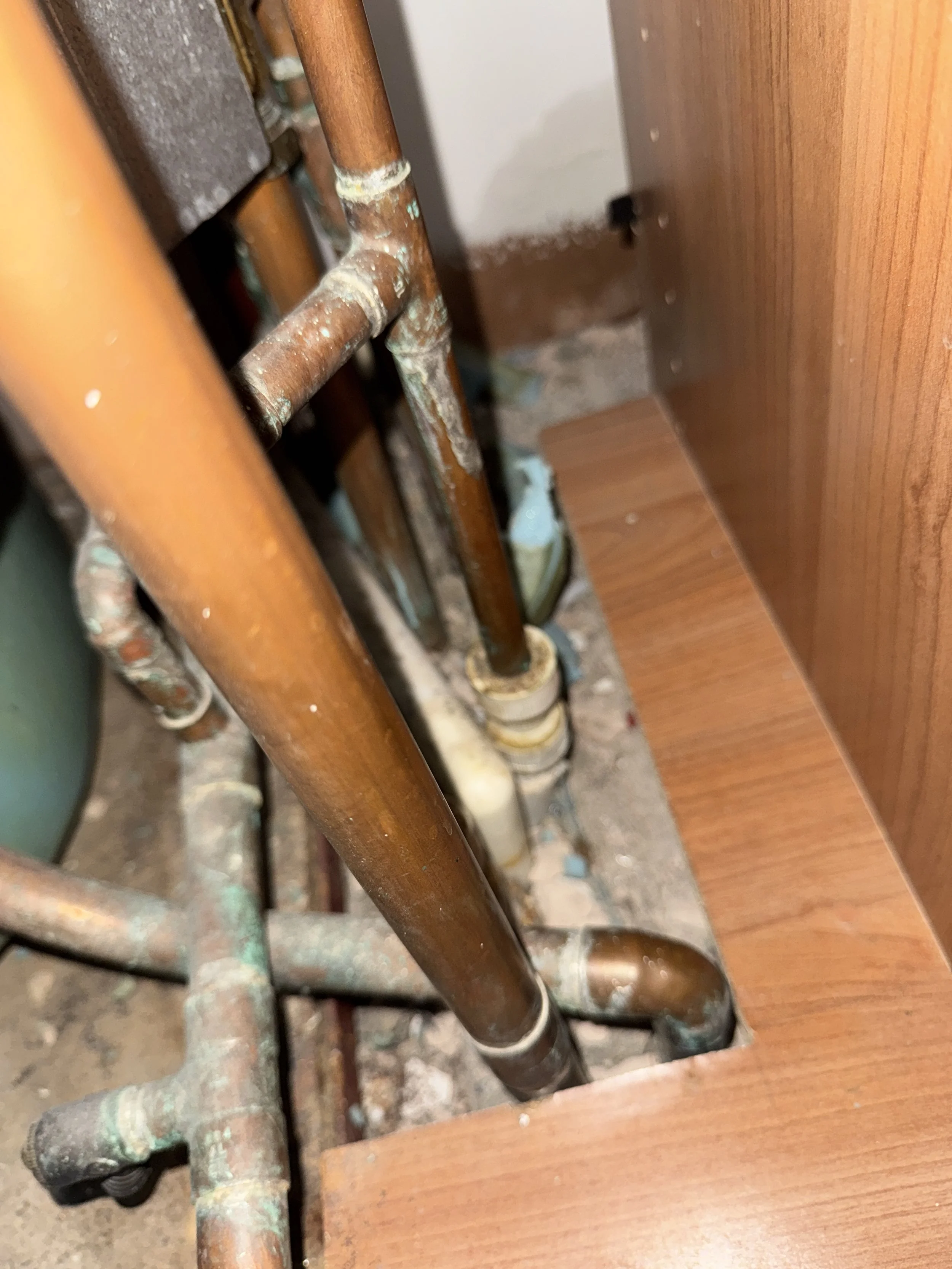

Close-up of a patchy, rusty copper pipe connected to a valve or fitting, next to a wooden surface.
Close-up view of plumbing pipes beneath a kitchen or bathroom sink, with some pipes rusted and surrounded by debris and construction dust, next to wooden flooring and a wall.

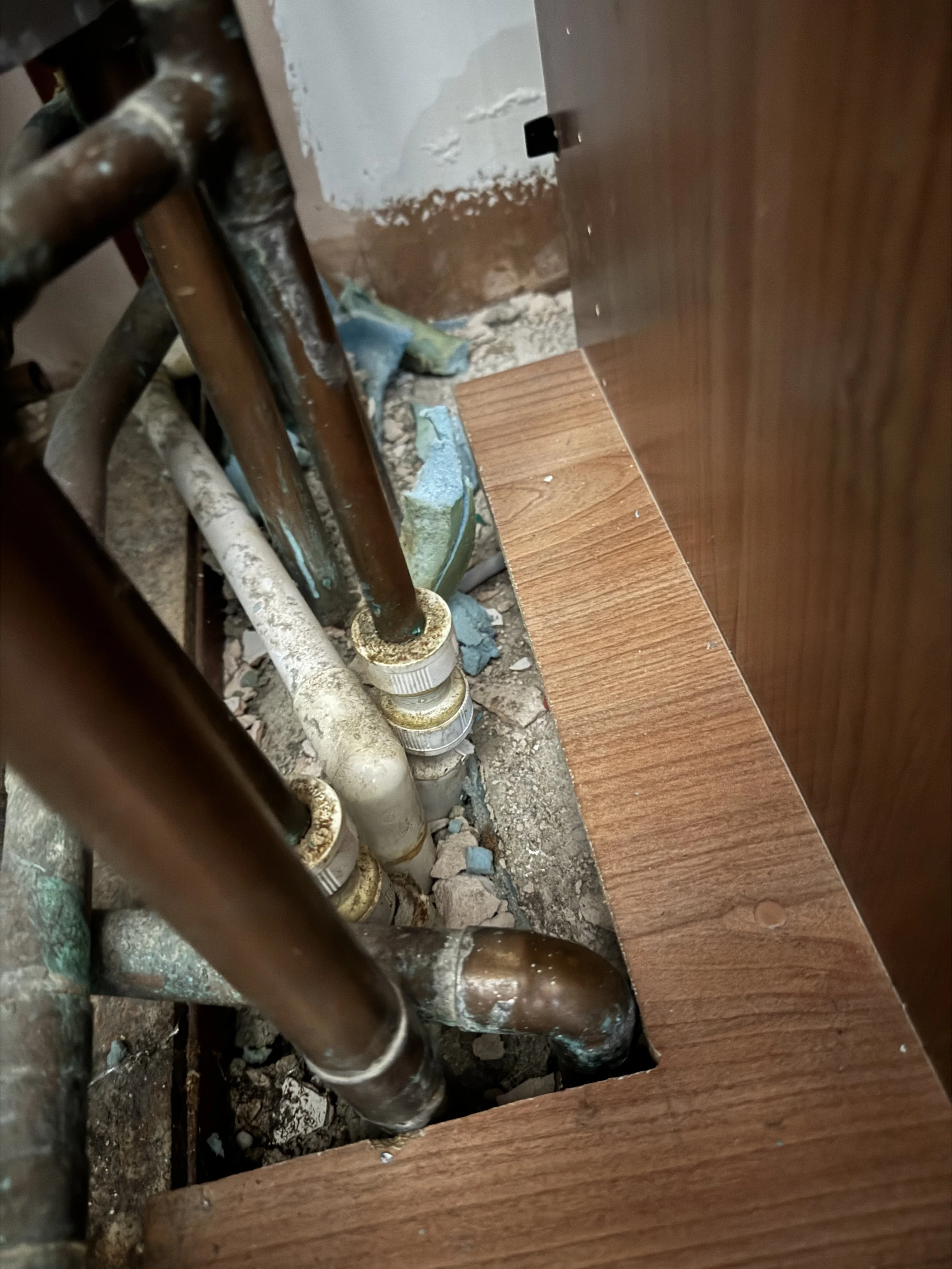

Close-up of plumbing pipes and fittings behind a wooden panel, with visible dirt and debris.

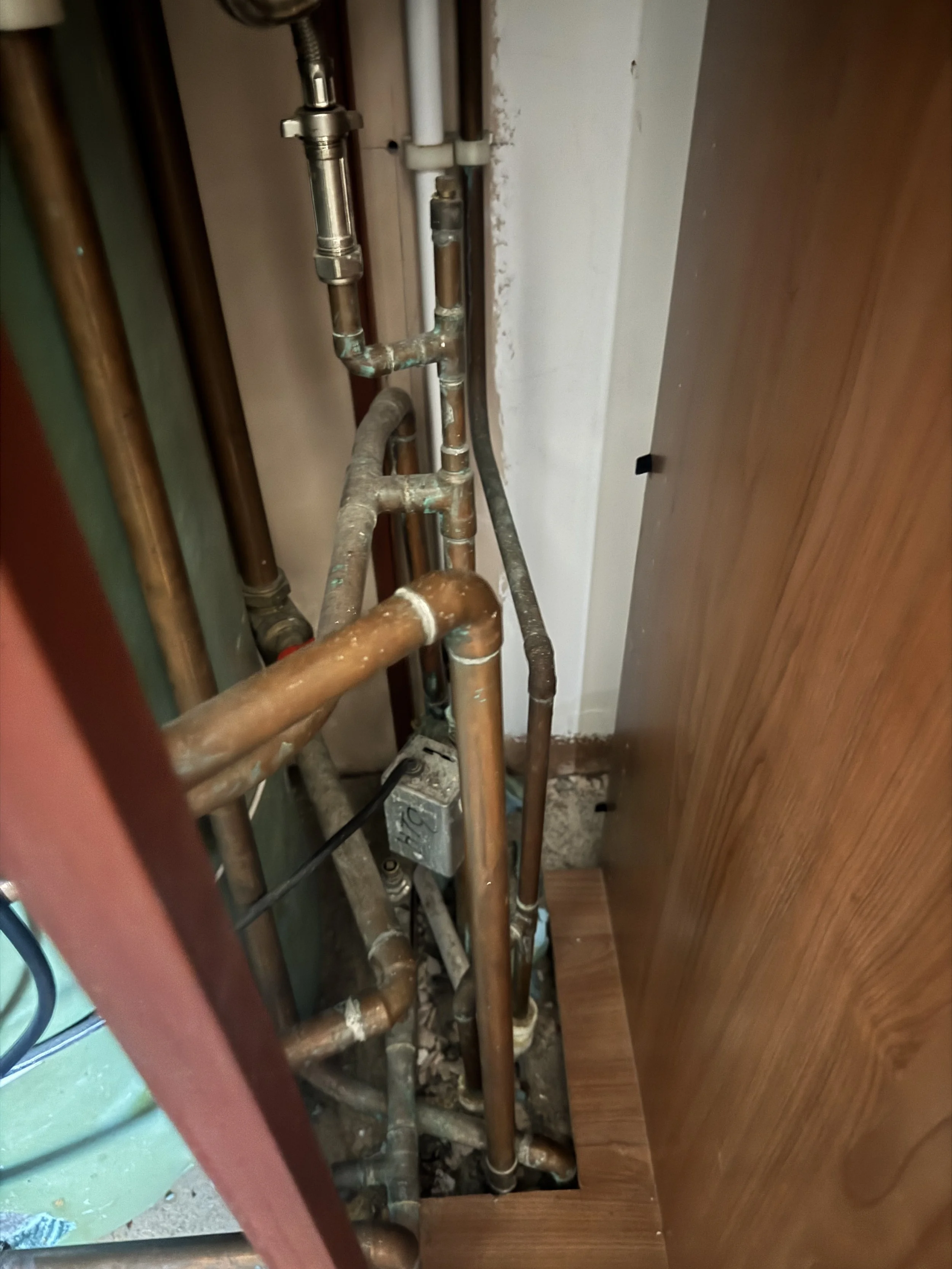

A view of various copper and metal pipes in a confined space, likely under a sink or appliance, with some white plastic pipes and an electrical component visible at the back.
Thermal image of a room with a door and a student desk, showing heat signatures with warm areas in yellow and orange and cooler areas in purple and blue.

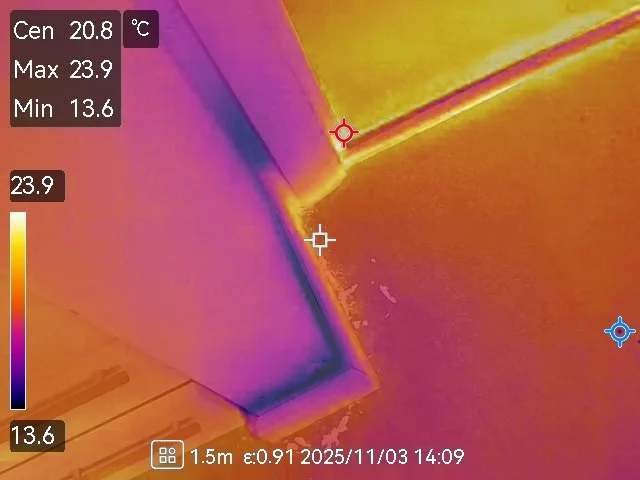

Thermal image of a corner where two walls meet, showing temperature variations from 13.6°C to 23.9°C, with warmer areas in yellow/orange and cooler areas in purple.
Thermal image of the base of a refrigerator showing heat variation, with higher temperatures near the bottom and cooler areas at the top.

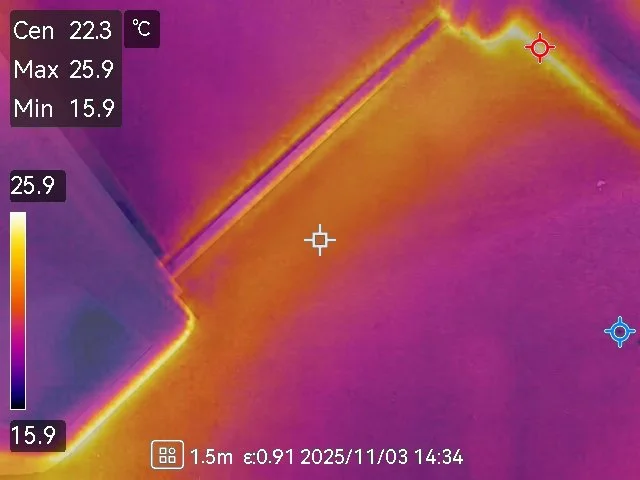

Thermal image showing a wall with a pipe or conduit running along it, with temperature readings indicating warmer and cooler areas.

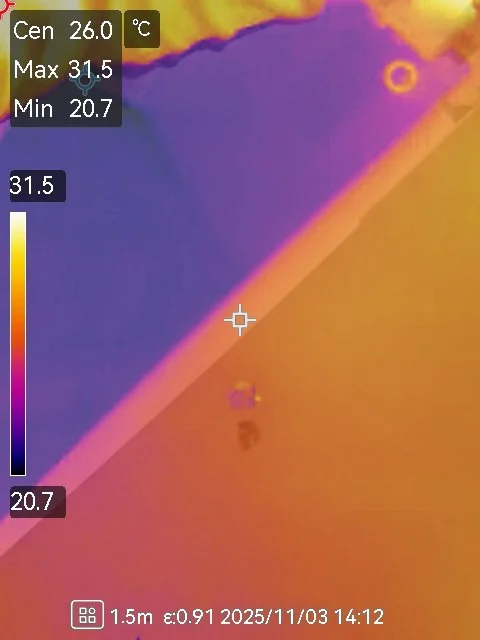

Infrared thermal image showing a surface with temperature readings from 20.7°C to 31.5°C, with a color gradient from purple to orange, and a small object emitting heat near the top right corner.

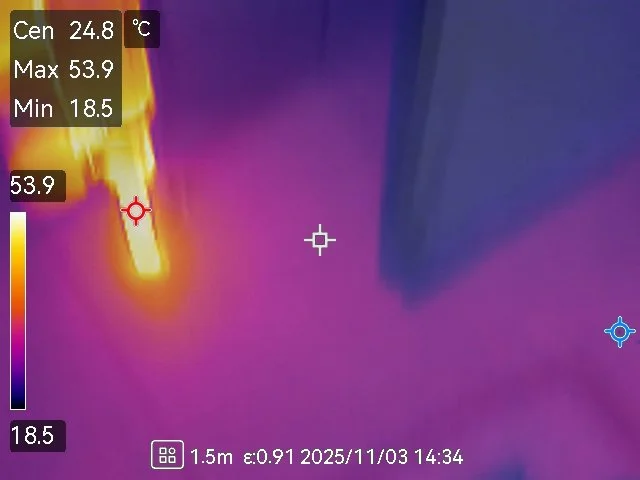

Thermal image showing a fire or hot object burning, with temperature readings up to 53.9°C, and surrounding areas at lower temperatures around 18.5°C to 24.8°C.

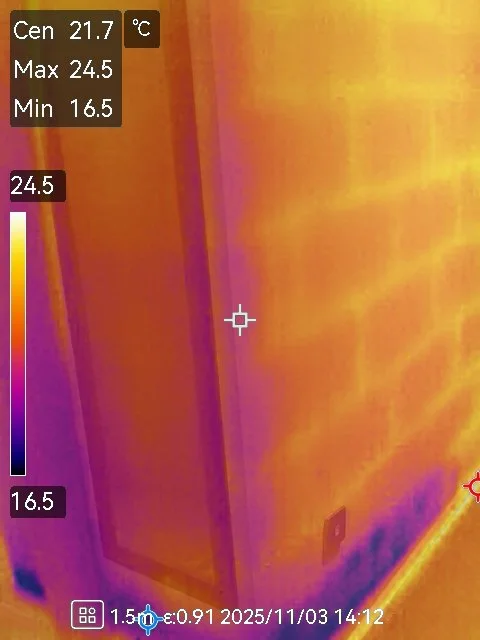

Infrared thermal image of a corner of a room showing temperature readings, with warm colors indicating higher temperatures and cooler colors indicating lower temperatures.

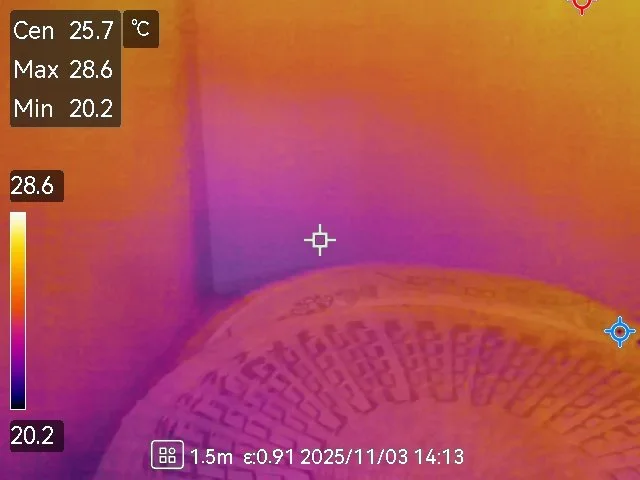

Thermal image of a baseball on a floor near a corner, showing temperature ranges from about 20.2°C to 28.6°C.

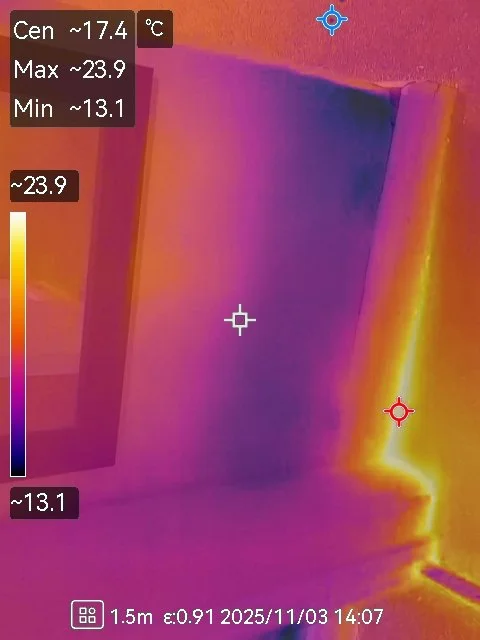

Thermal image of a room corner showing the temperature of the wall and nearby objects. The wall has a temperature of approximately 17.4°C, with a maximum of 23.9°C and a minimum of 13.1°C. The colors indicate cooler and warmer areas, with the warmer

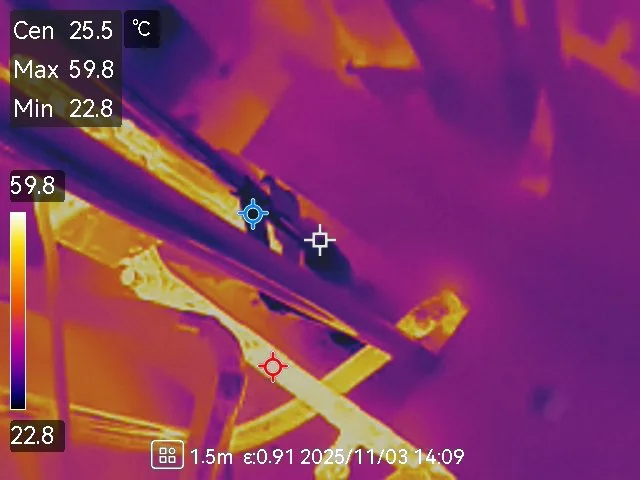

Infrared thermal image showing a metal pipe with temperature readings of 25.5°C at the center, 59.8°C maximum, and 22.8°C minimum, with a color gradient indicating heat levels.

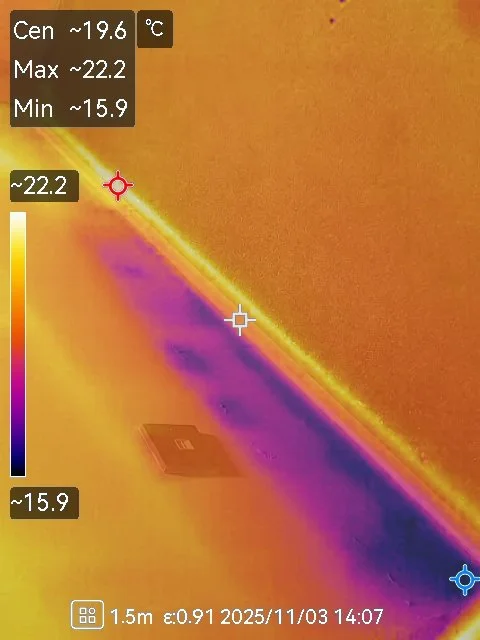

Thermal image of a floor with a laptop and a wall, showing temperature variations from 15.9°C to 22.2°C.

Decommissioning & Strip-Out

Following our findings, it became clear that the issue extended beyond a localised leak and required a full system intervention.

A proposal was presented to isolate and remove the active leak, upgrade the entire plumbing system, and reconstruct the bathroom to a proper standard.

Upon client approval, a structured 5-week programme was initiated.

As a first step, we deployed a dehumidification system to stabilise the environment, followed by the decommissioning of the hot water cylinder and existing boiler.

Once the system was safely isolated, all fixtures and finishes were removed to expose the concealed installation and allow full access to the pipework.

This stage revealed the true extent of the system failure.

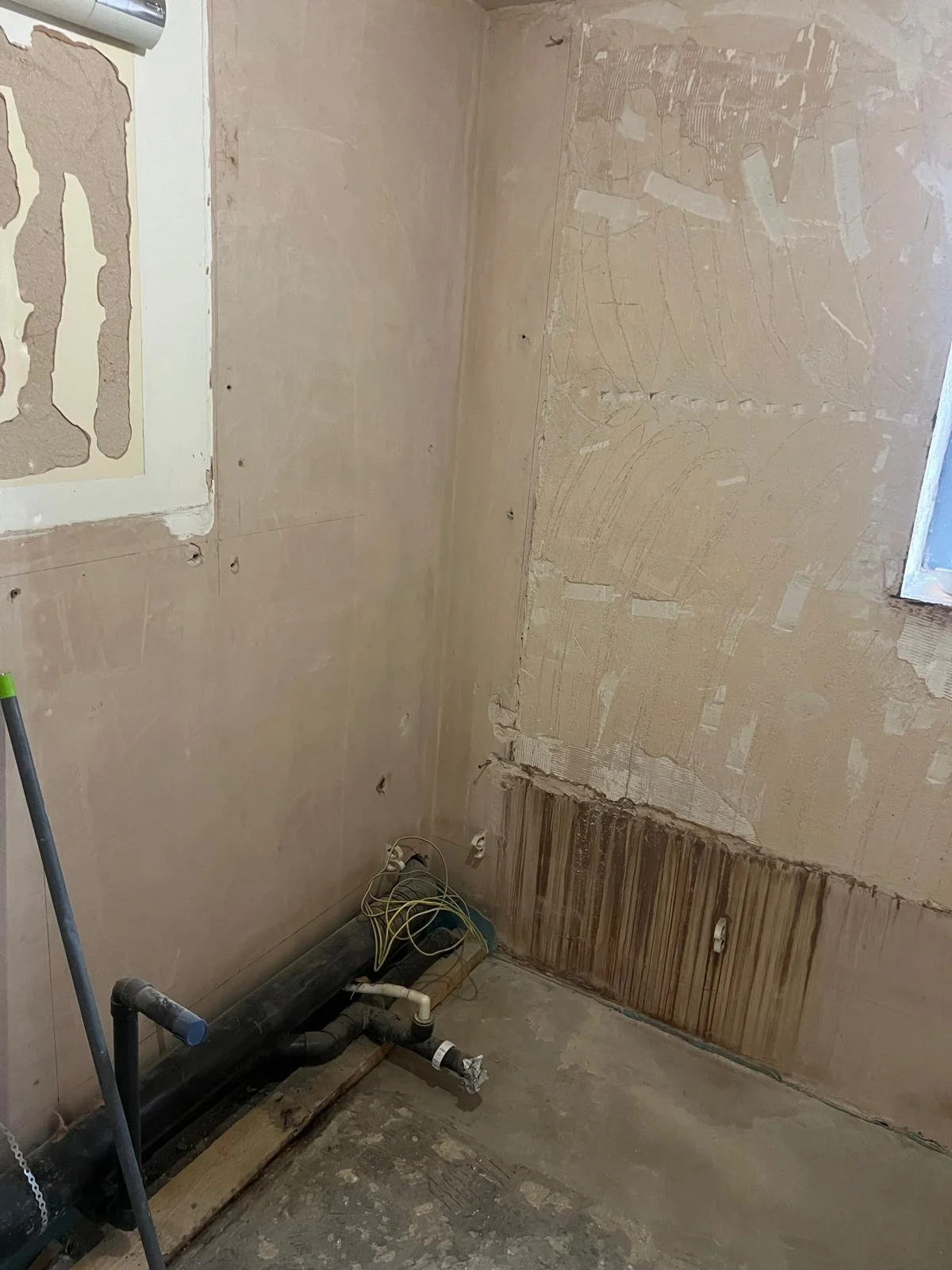

A room under construction with partially torn drywall, exposed wiring, and plumbing pipes on the floor.

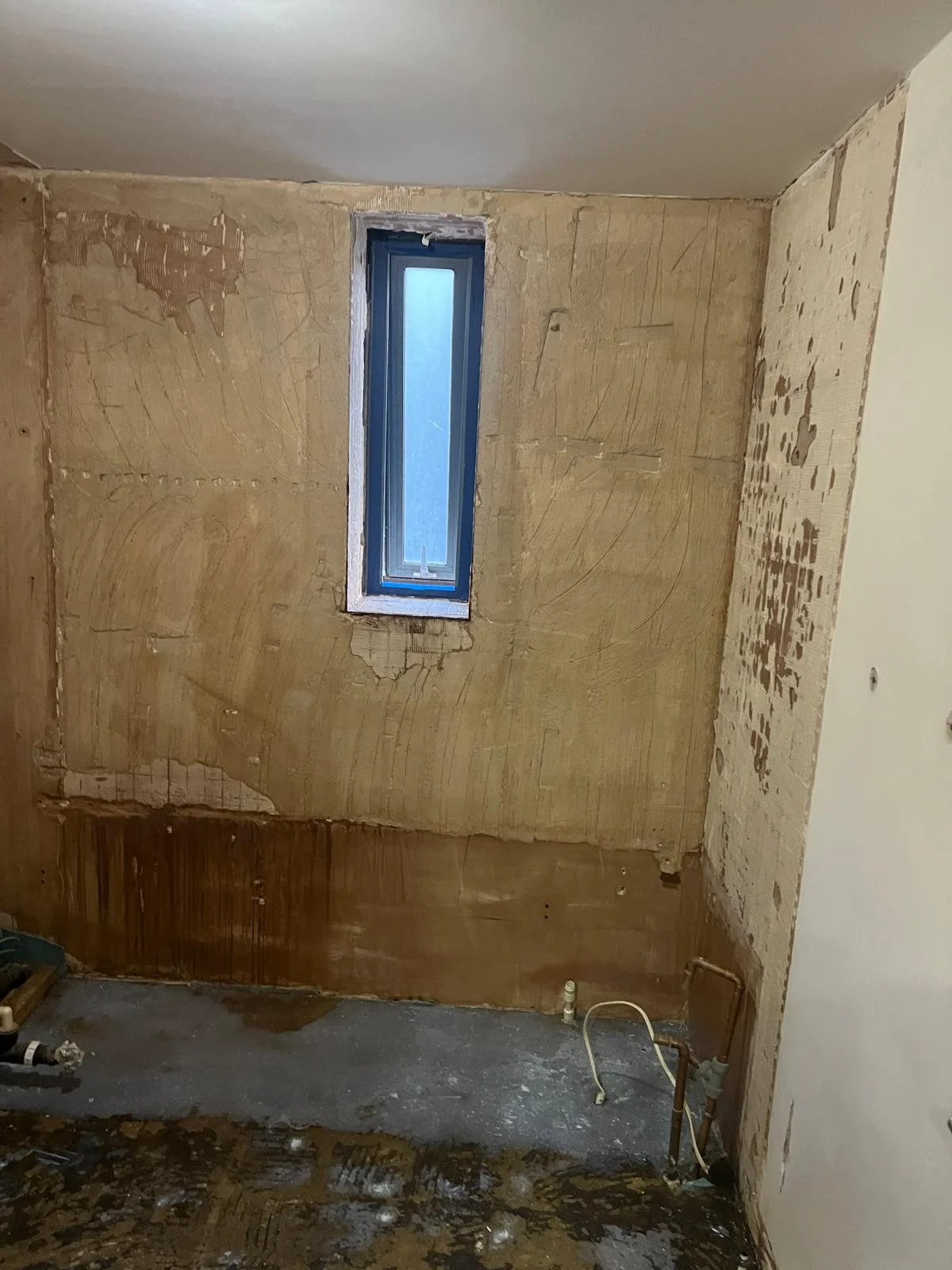

A room under renovation with partially removed wall coverings, a narrow window, exposed plumbing, and a stained floor.

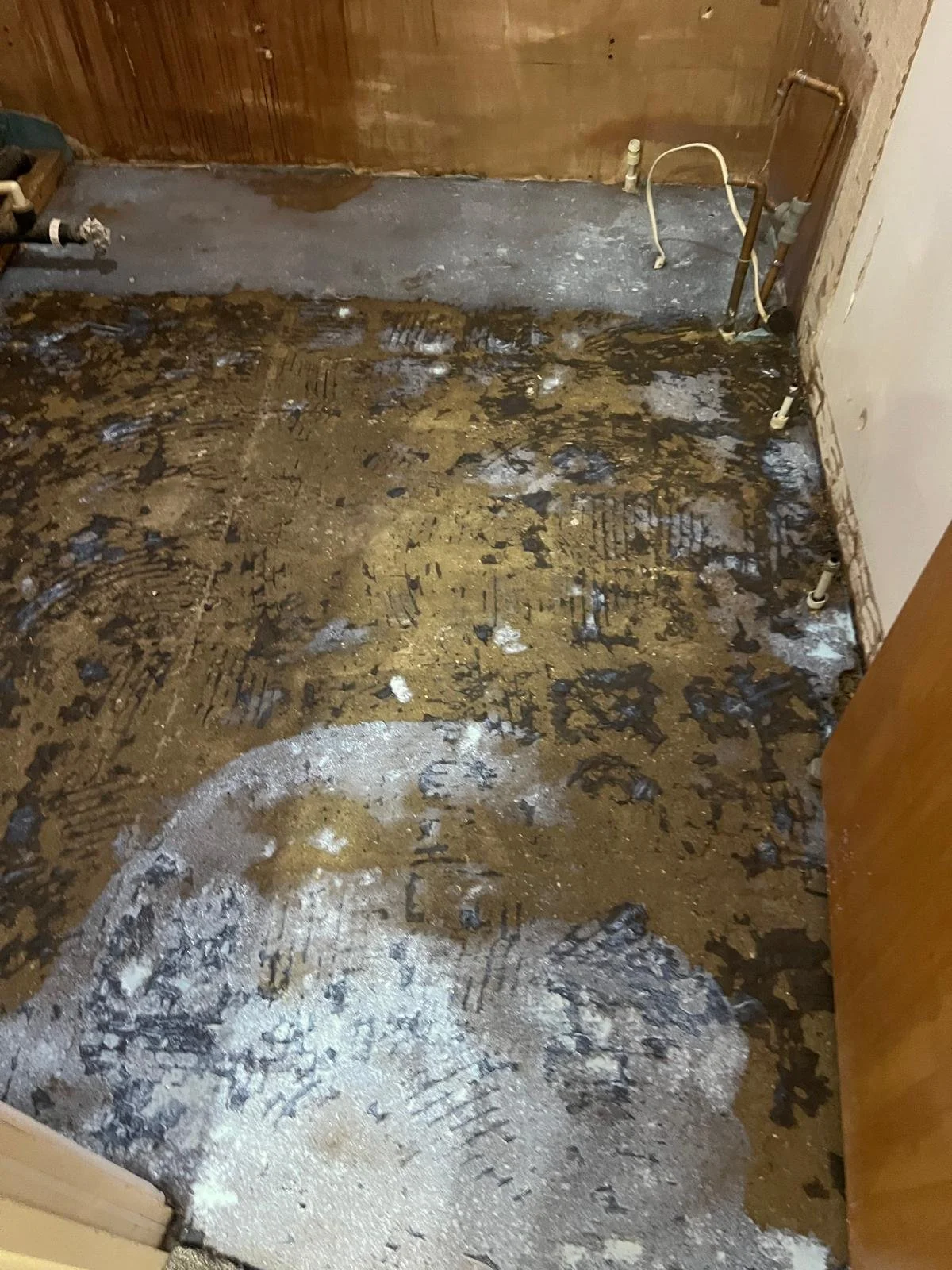

A room with a bare floor that has been stripped of flooring materials, showing an uneven surface with dirt, debris, and footprints. The walls are unfinished, and exposed plumbing pipes are visible in the corner.

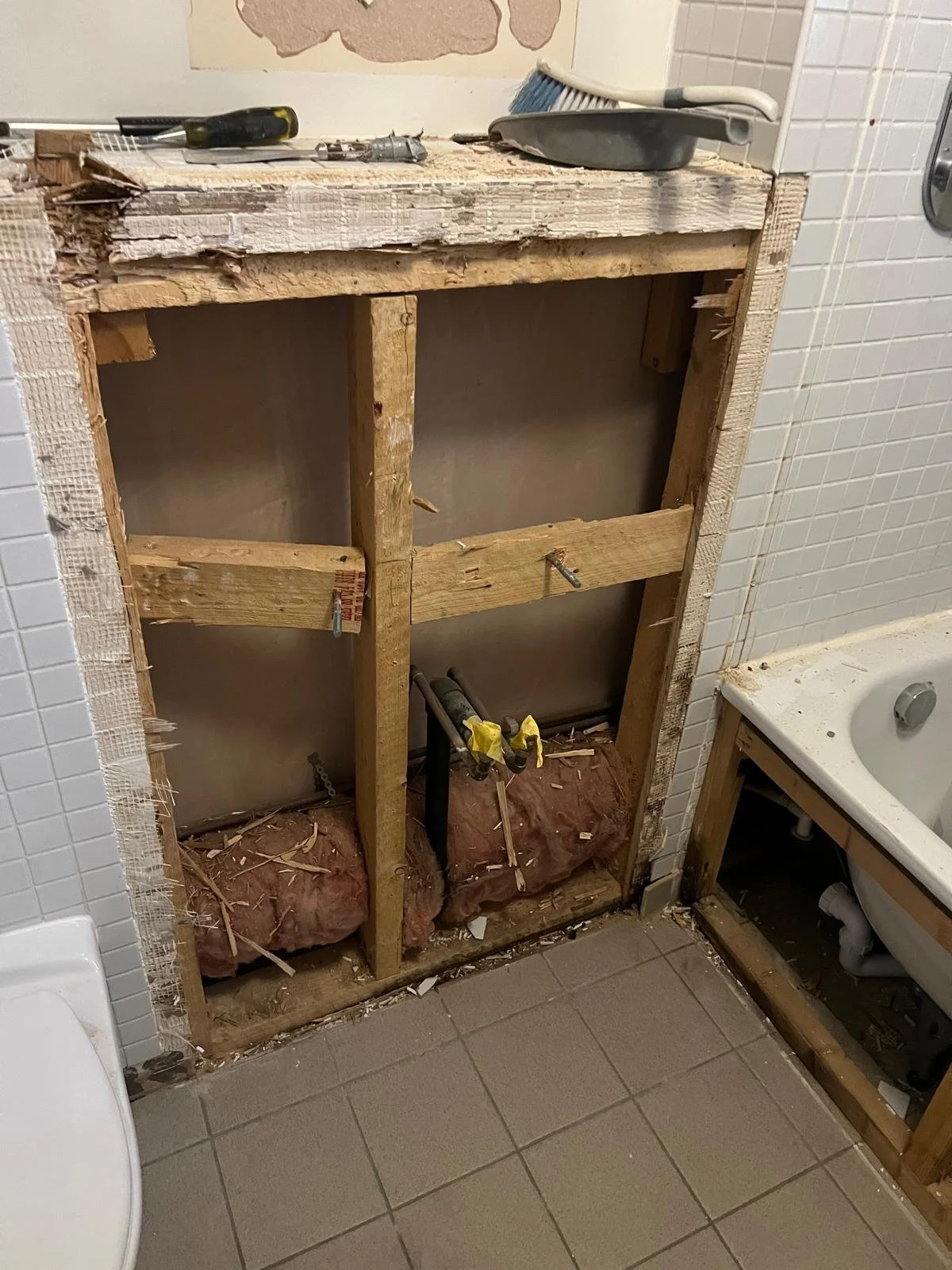

Bathroom vanity frame under construction with exposed wooden studs, insulation, and plumbing pipes; tools and materials on the countertop.

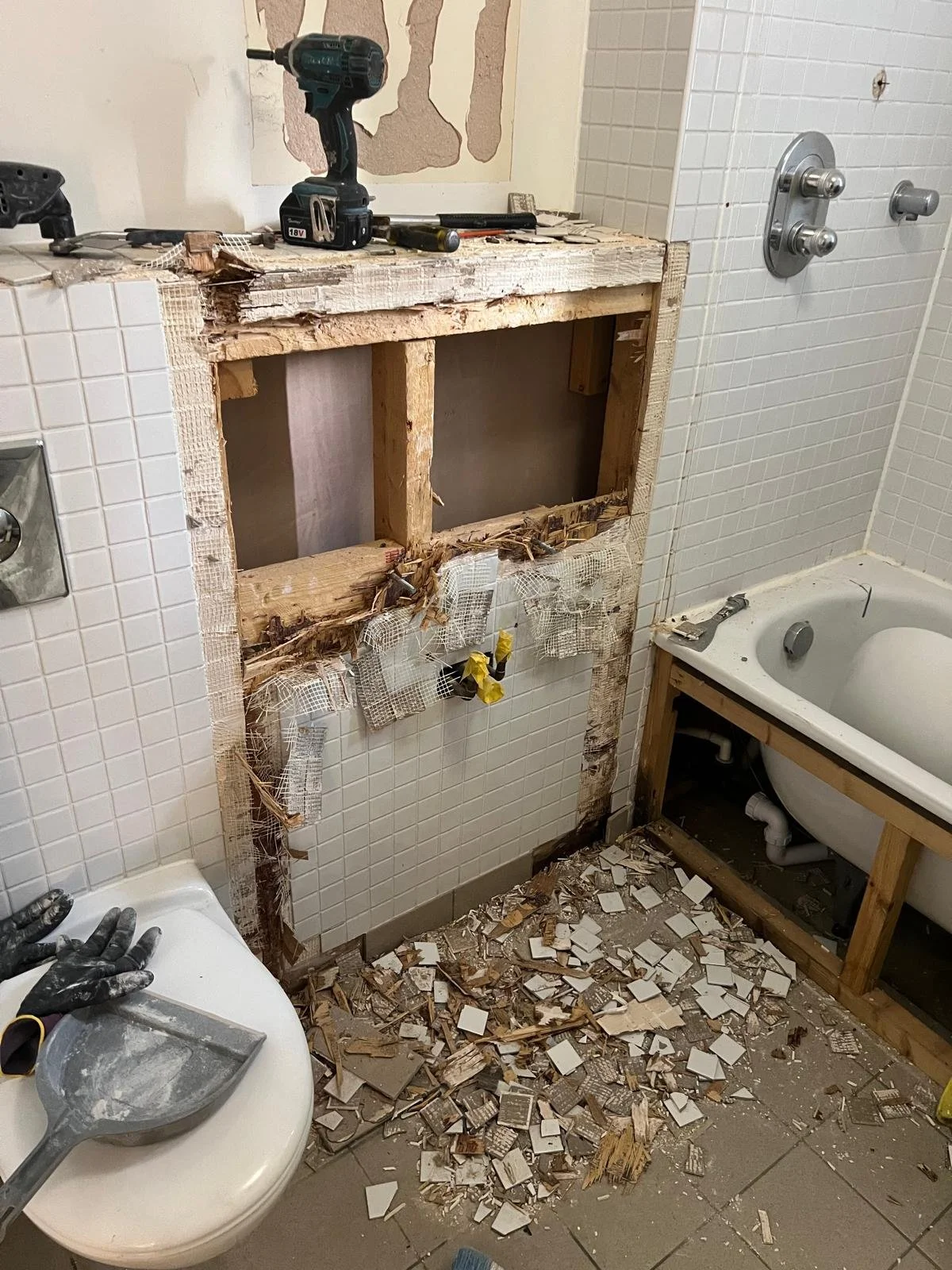

A bathroom under renovation with tiles removed from wall and a large hole in the wall exposing studs, debris and broken tiles scattered on the floor, tools on the sink and a workbench.

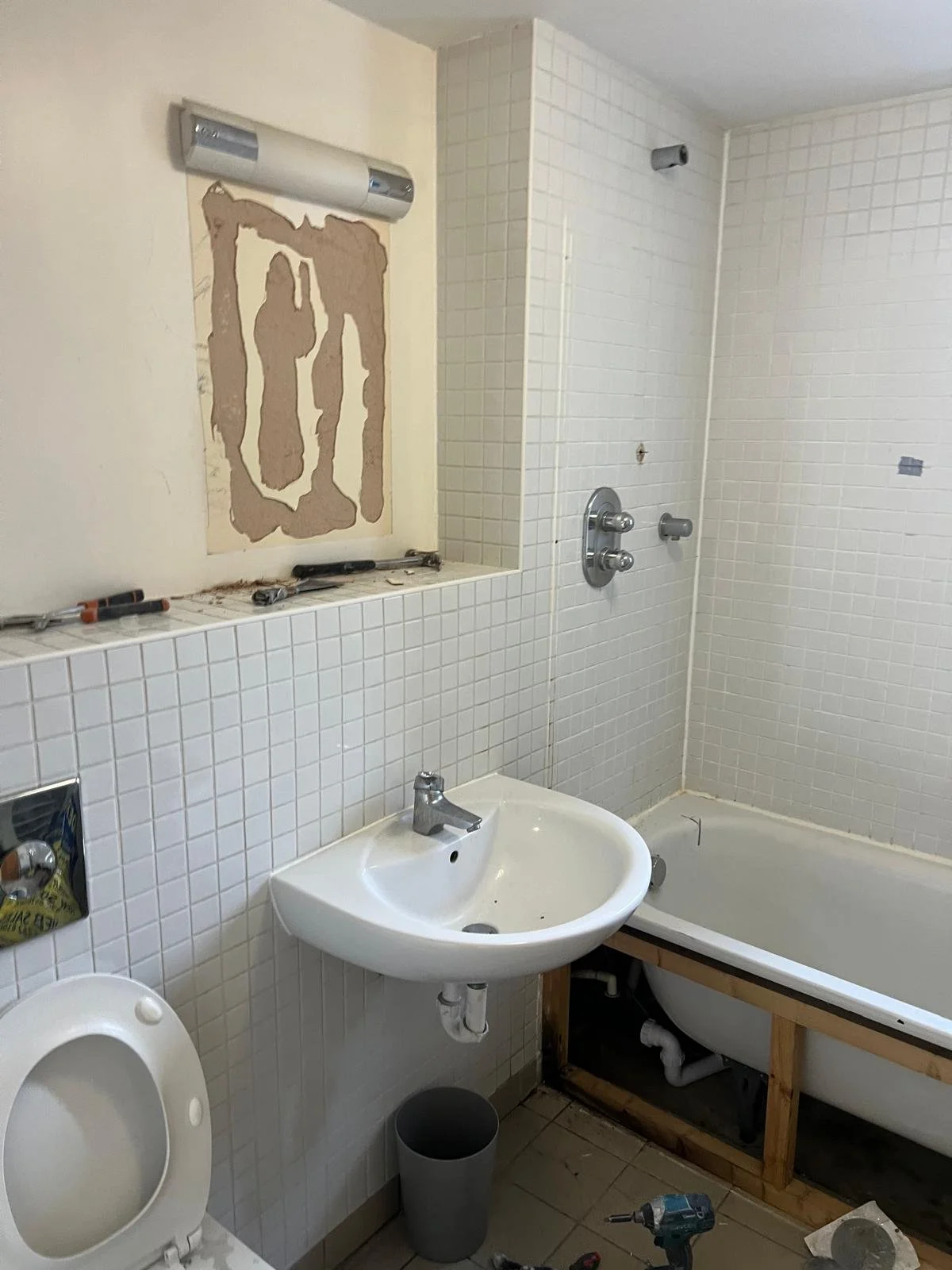

A bathroom under renovation with white tiled walls, a mounted light fixture, a small sink, an unfinished bathtub, and various tools and materials scattered around.

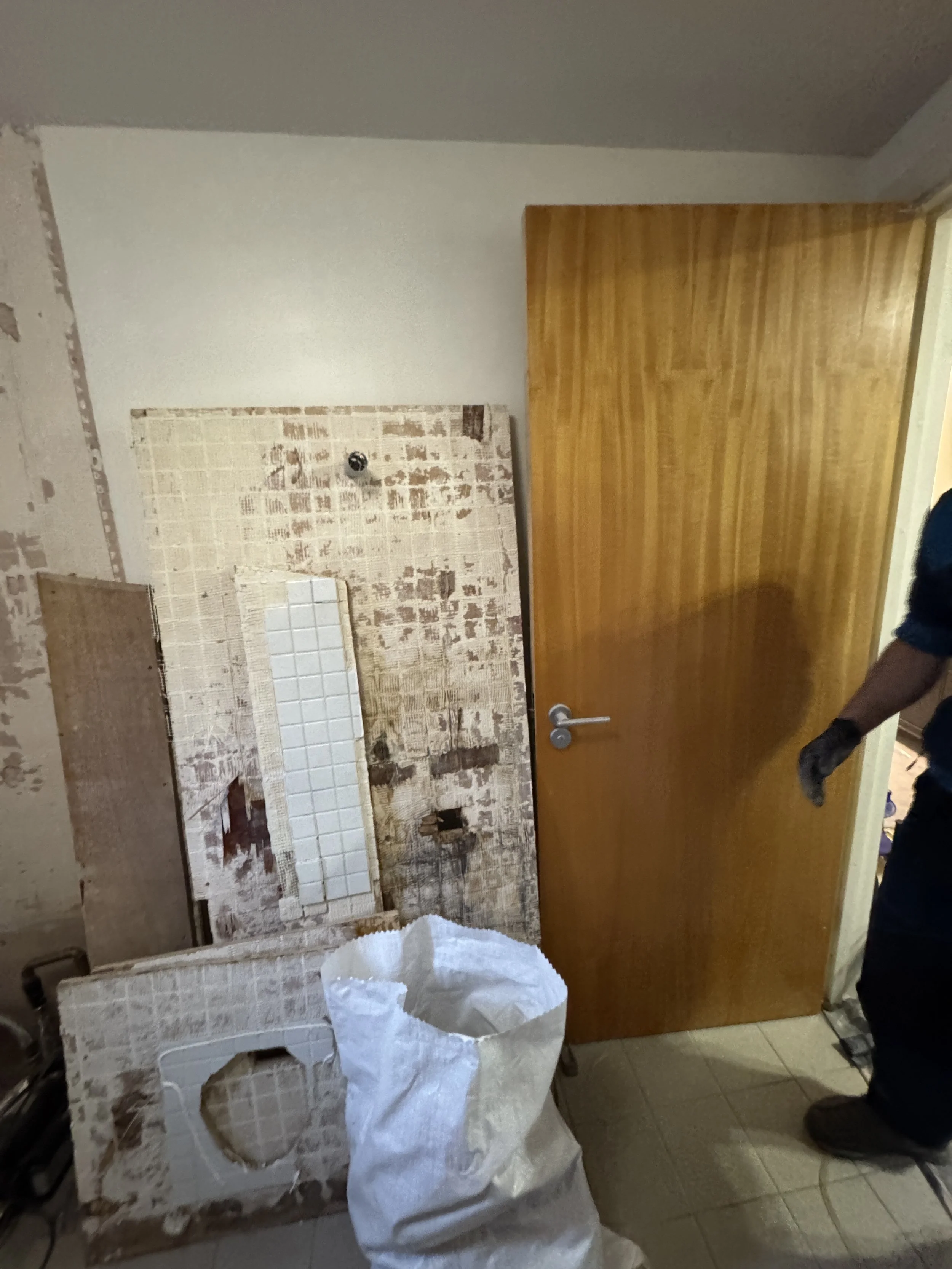

A room with a partially removed tiled wall, a wooden door, and a waste bag on the floor.

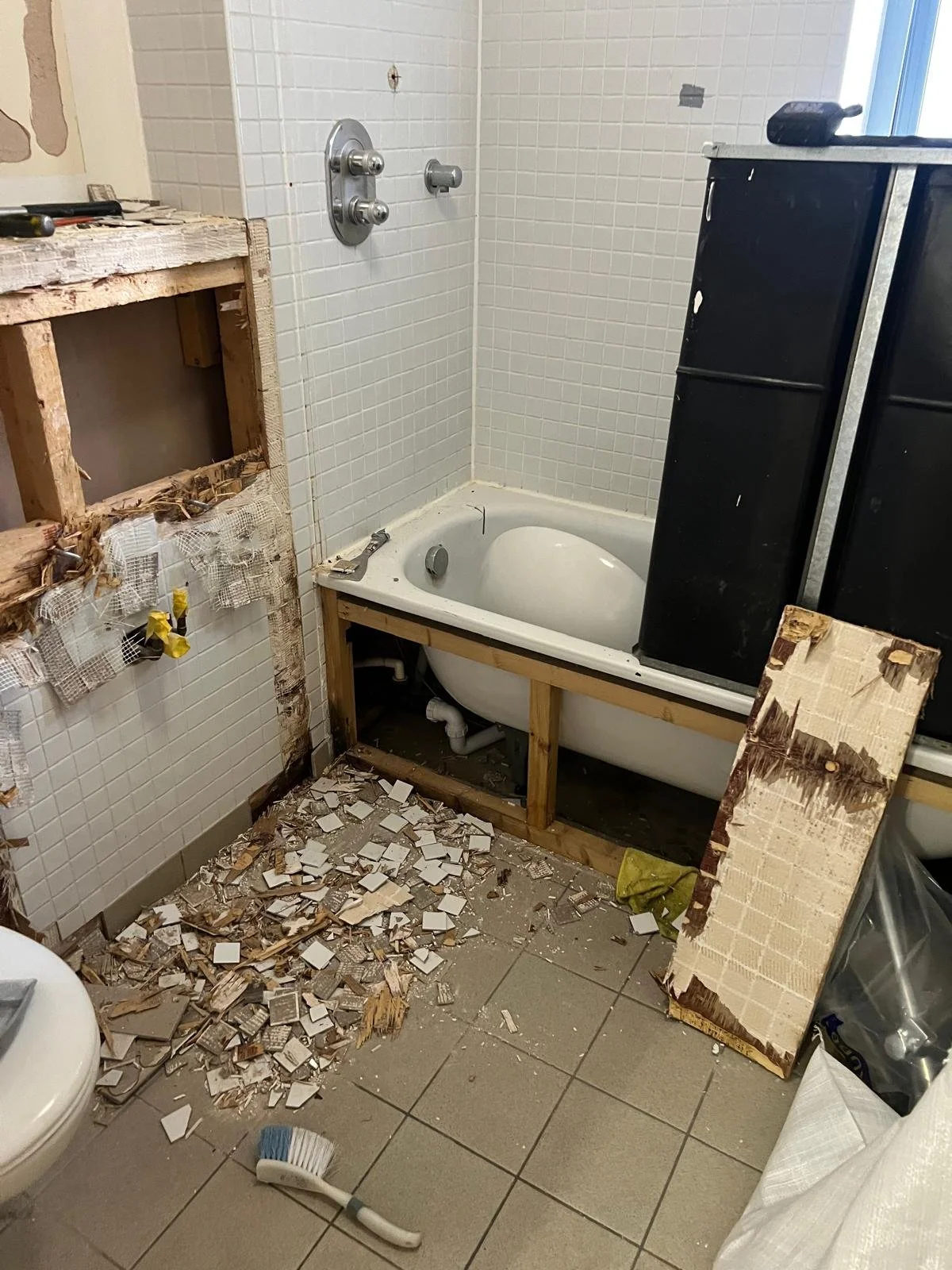

Bathroom under renovation with broken tile debris on the floor, an unfinished bathtub, a wooden frame, and construction tools.

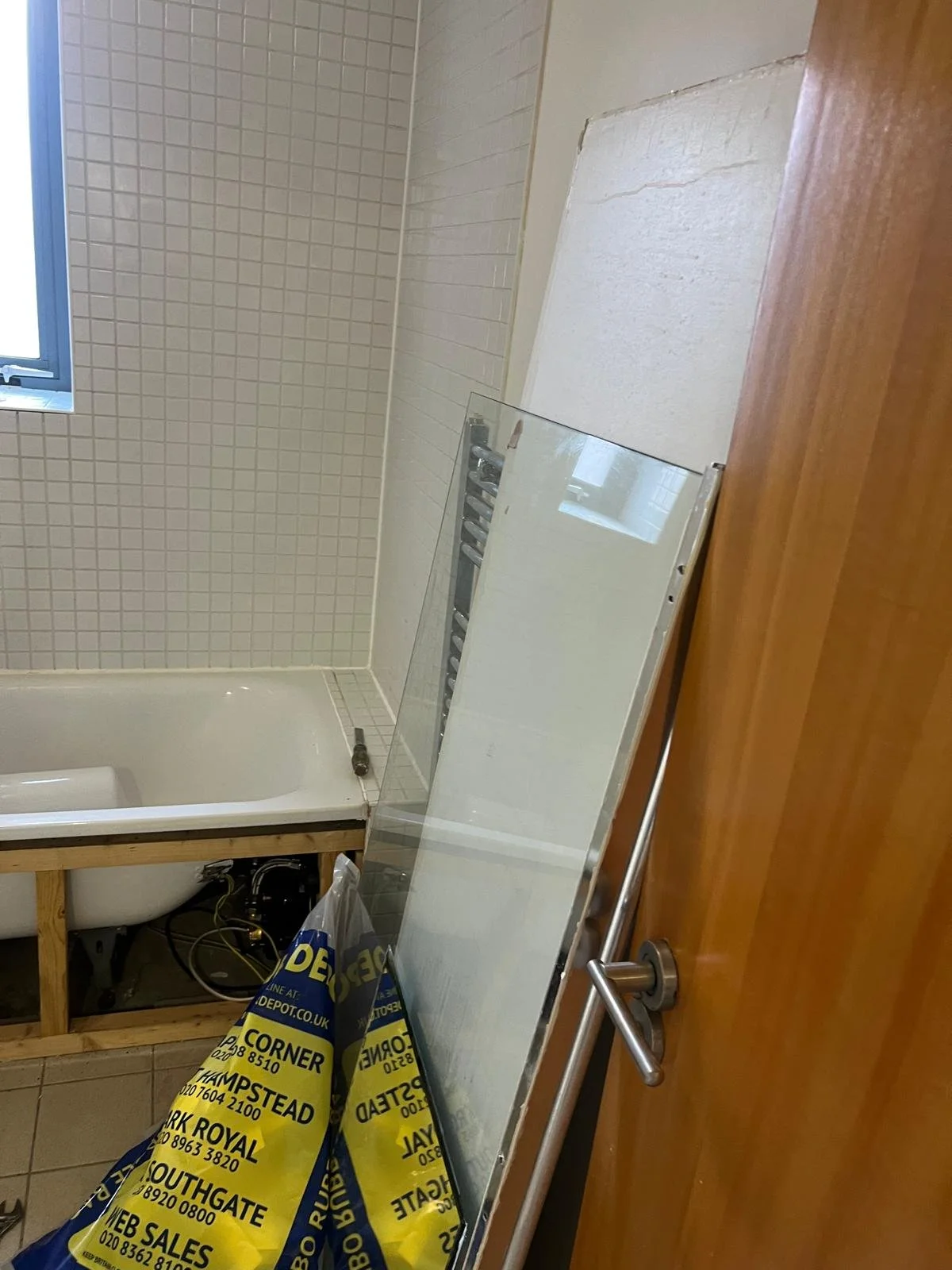

A bathroom under renovation with a partially installed bathtub, a mirror leaning against the wall, a window, and a bag from a hardware store on the floor.

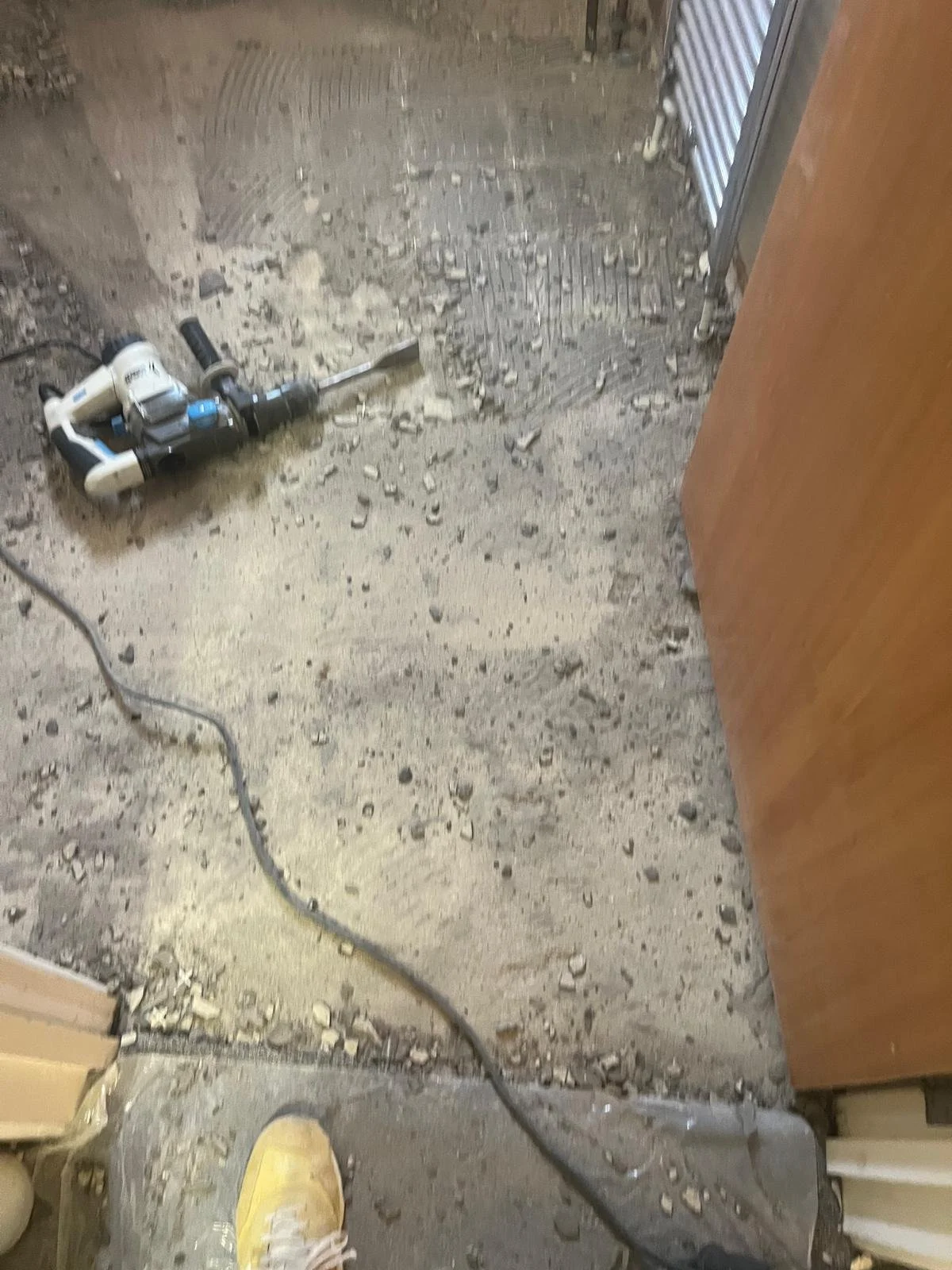

A wet concrete floor with scattered debris, a power tool, and a person wearing yellow shoes.

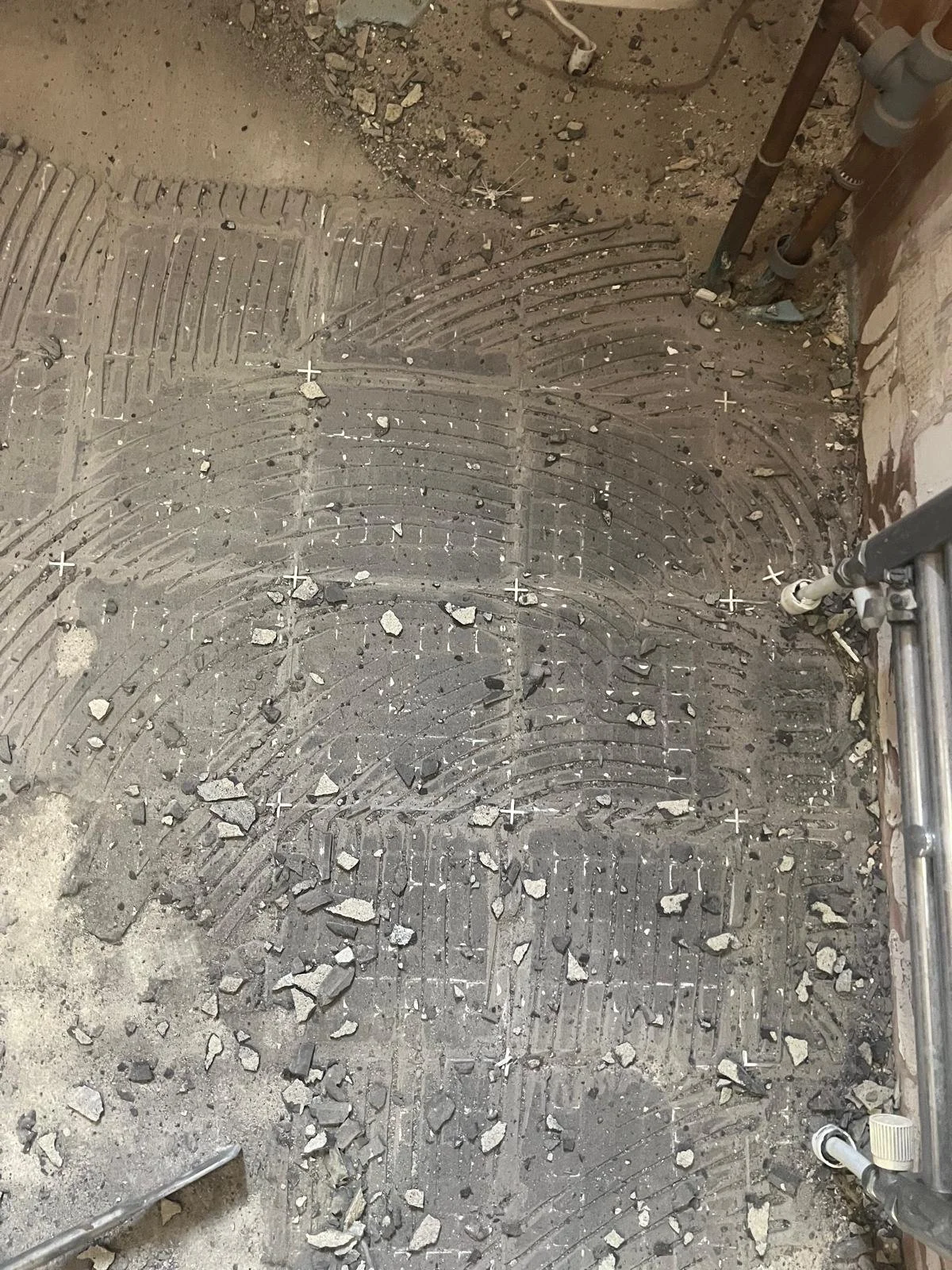

Subfloor with tile heating system installed, with heated cable grooves visible and some broken tiles and loose debris scattered on top.

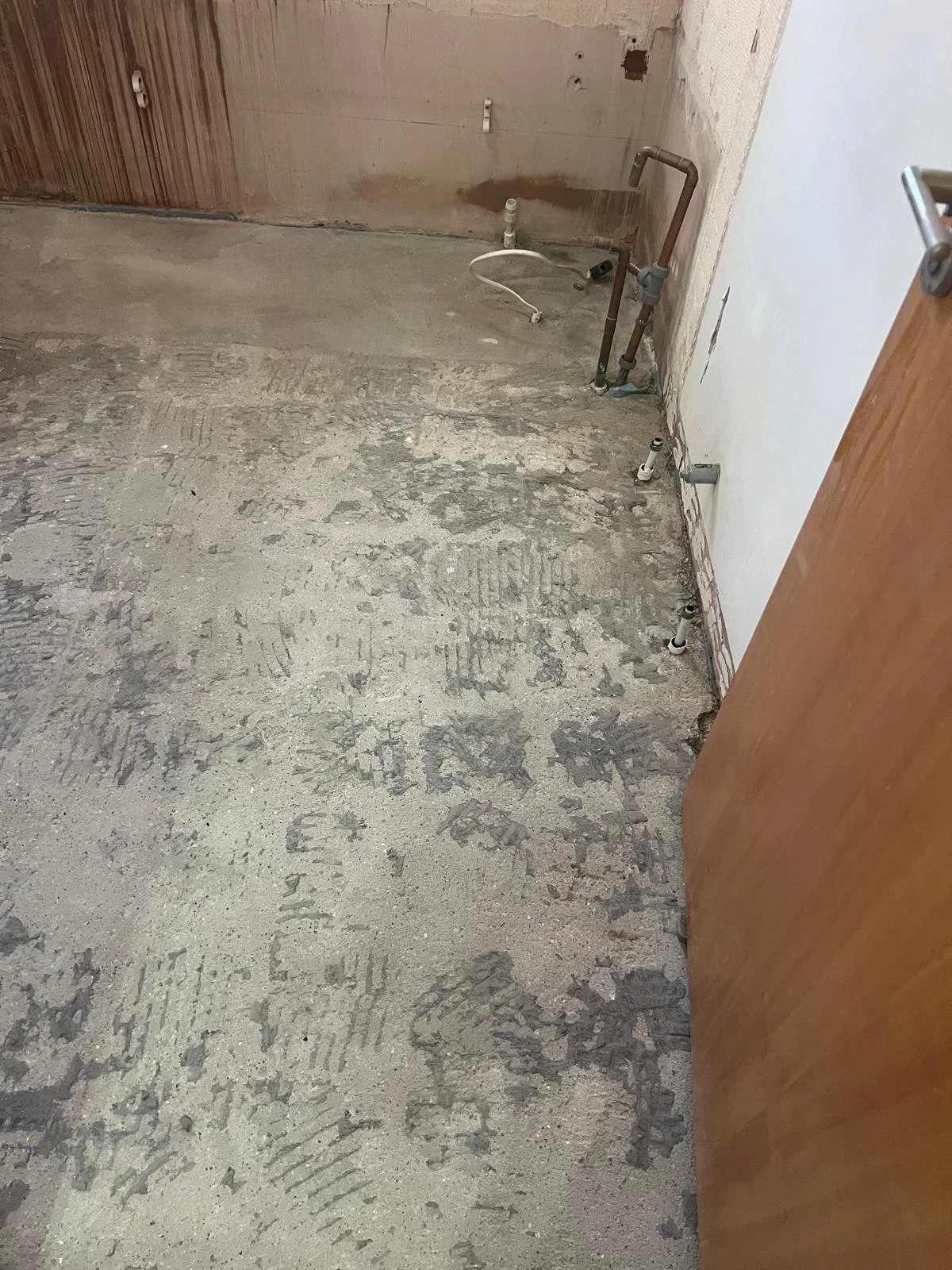

Construction area with exposed pipes and plumbing fixtures on a concrete floor and unfinished walls.

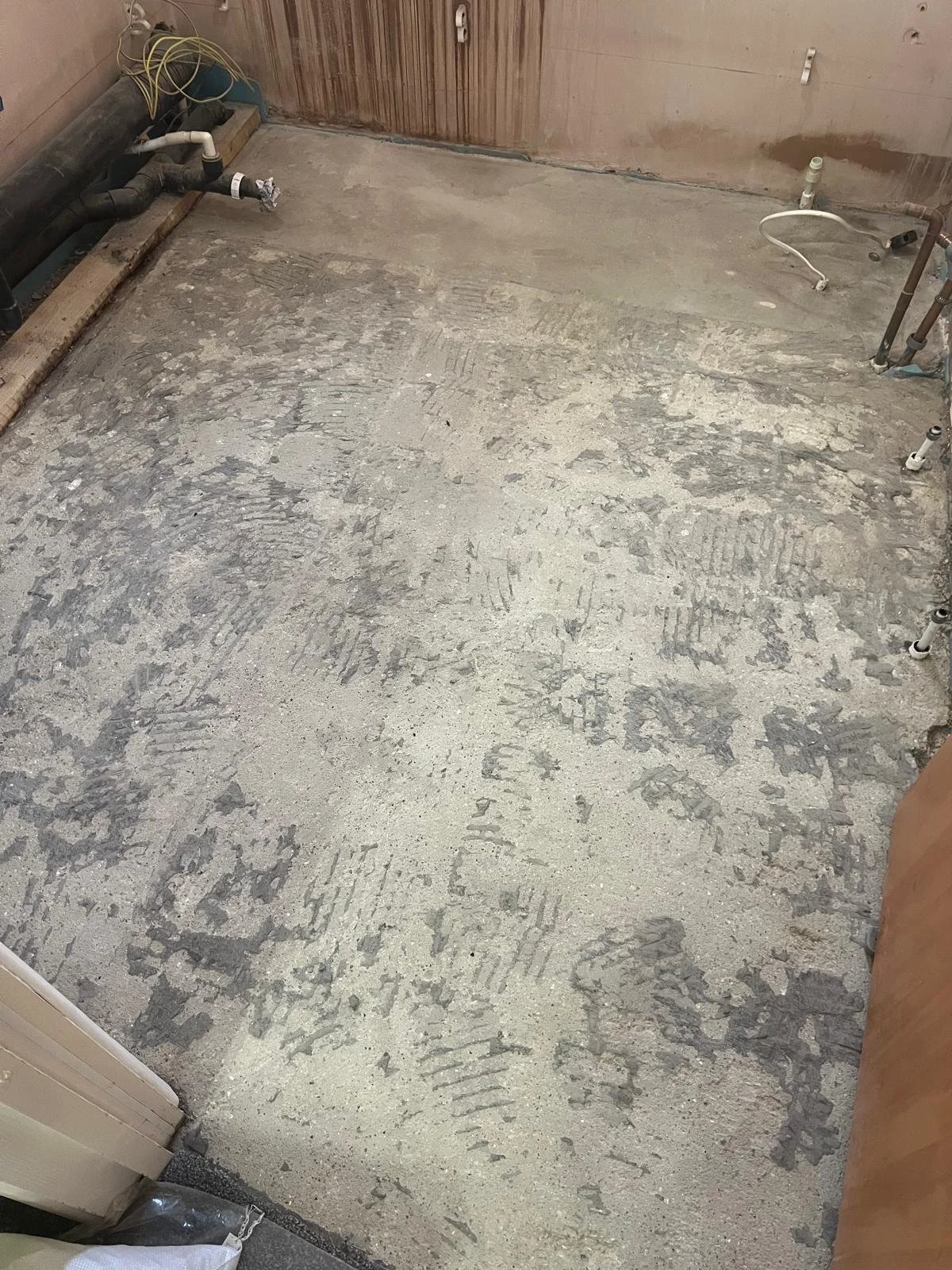

Construction site with a concrete floor covered in foot and tire prints, plumbing pipes on the walls, and electrical wiring hanging.

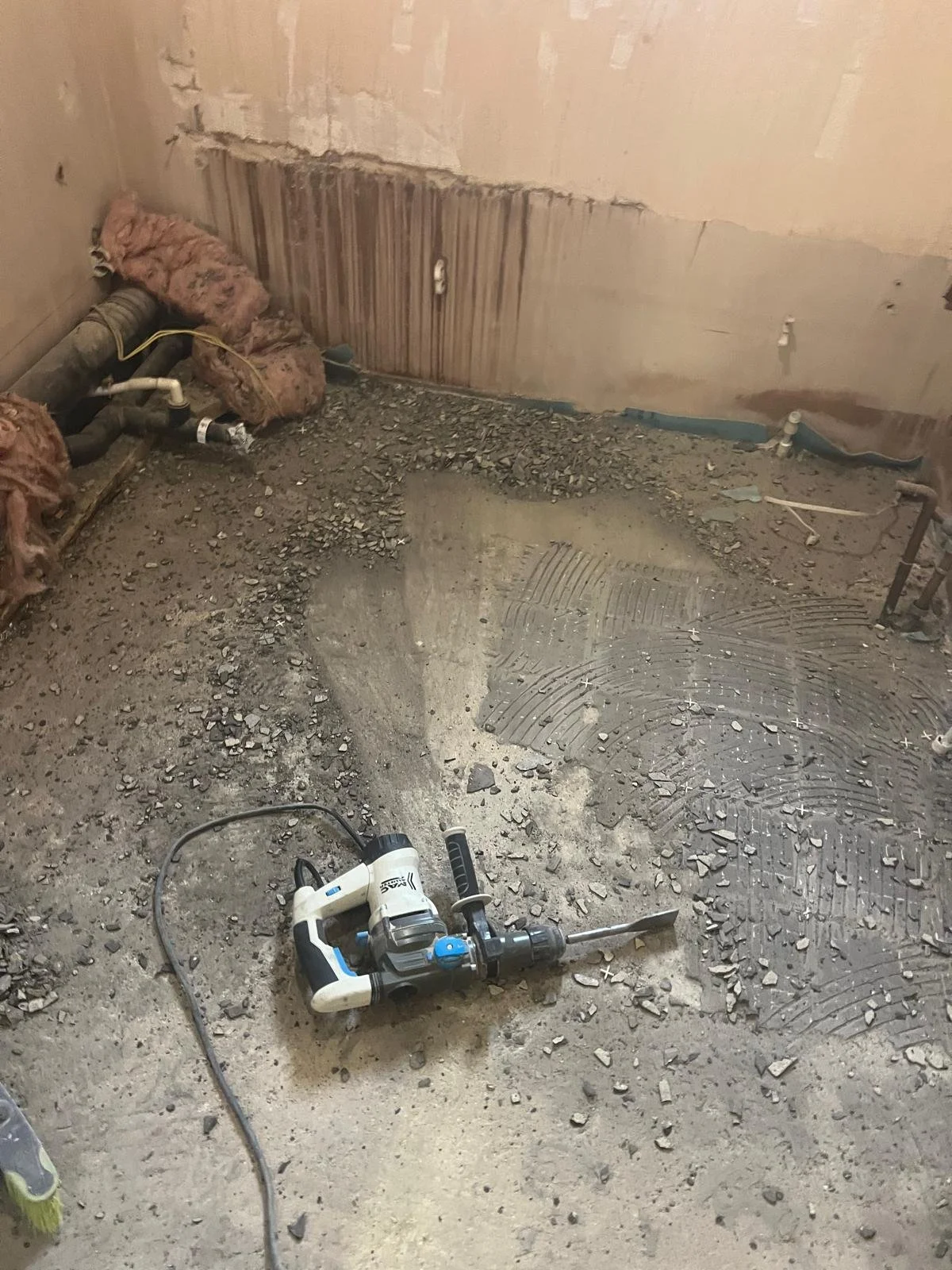

Construction site with an exposed floor, debris, insulation materials, pipes, and a power tool on the ground.

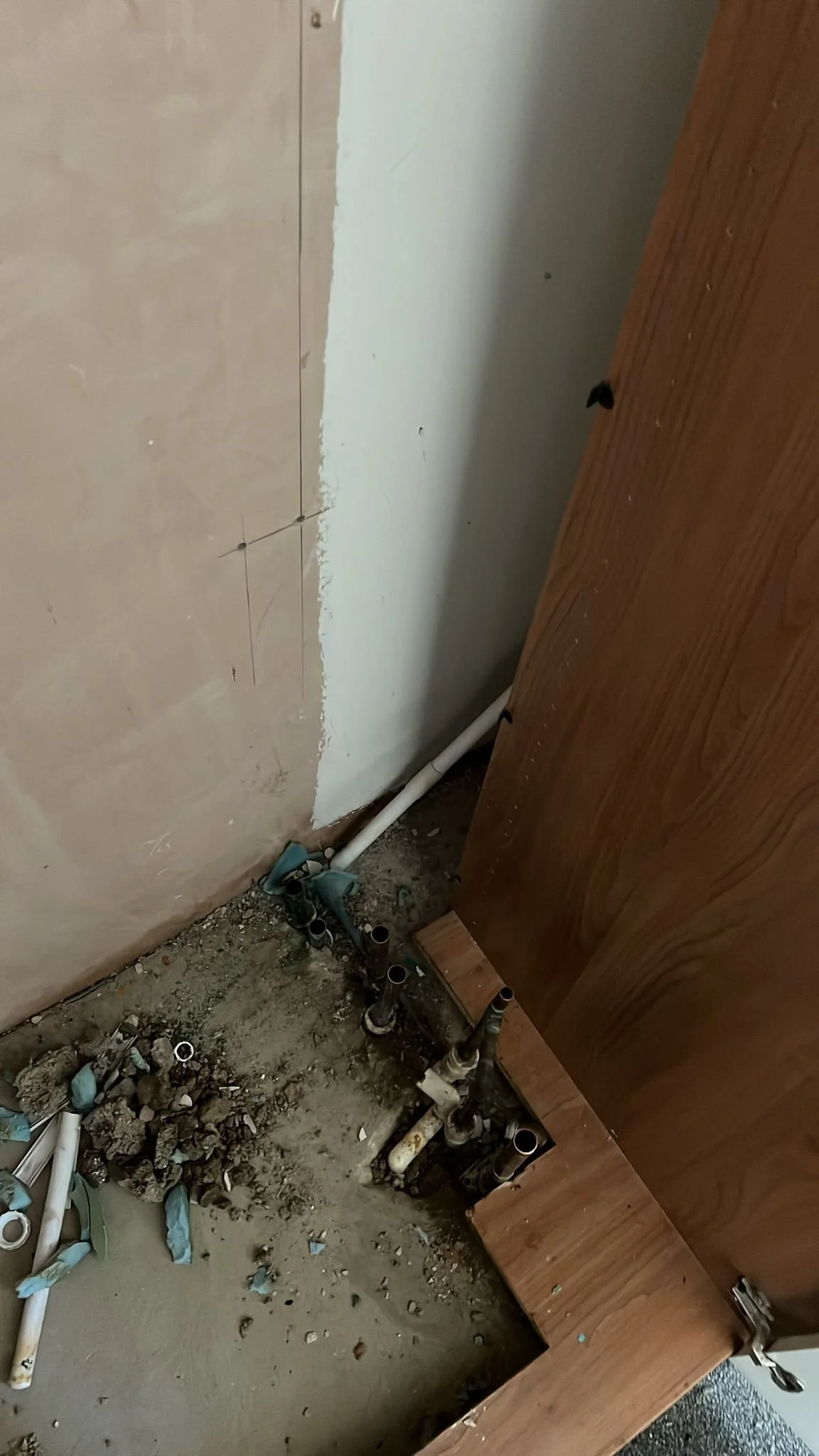

Part of a bathroom or laundry room under renovation showing plumbing pipes and a partially tiled wall.

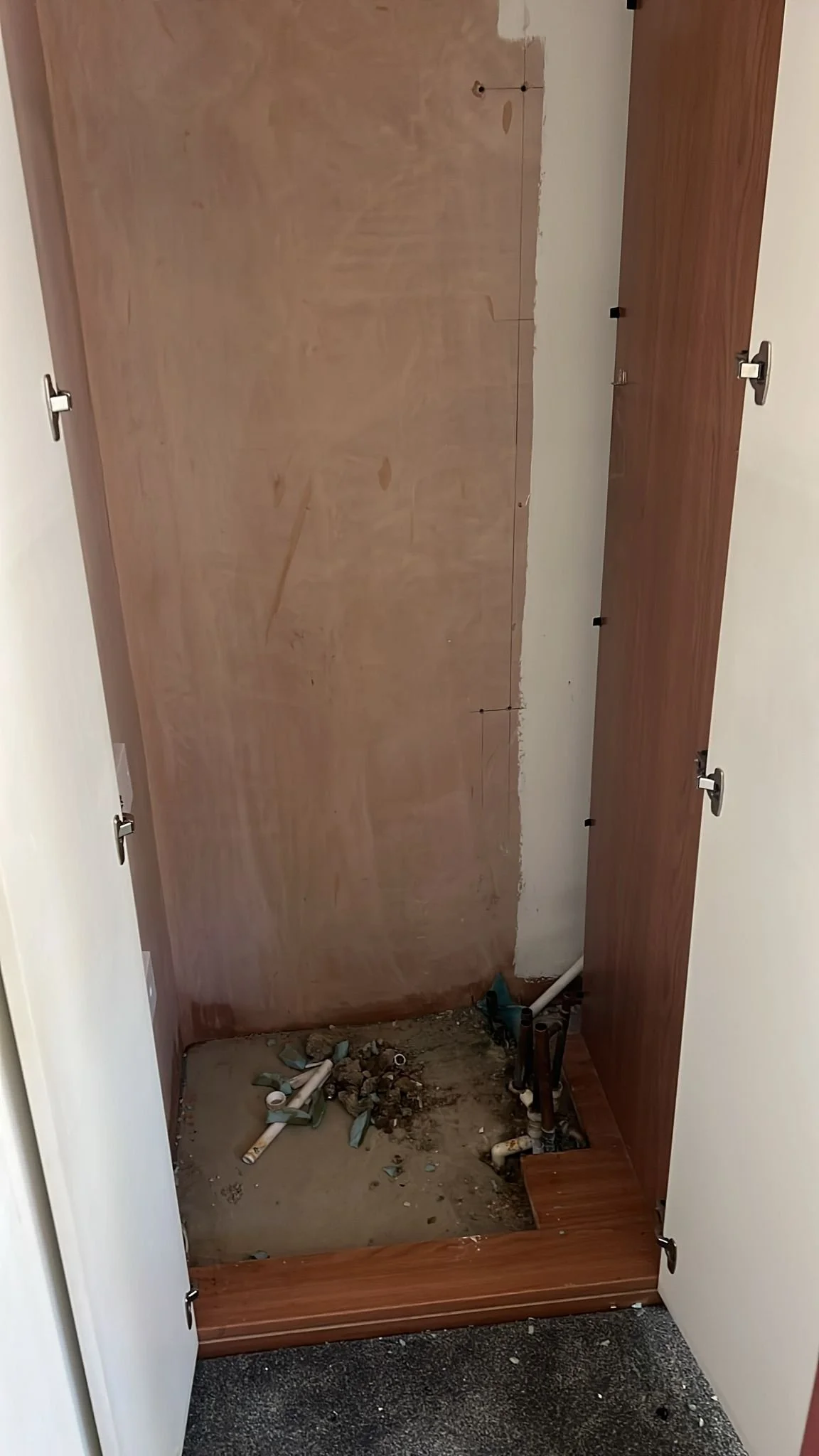

The cabinet doors are open, revealing an unfinished space with exposed plumbing and debris on the floor, indicating ongoing renovation or repair work.

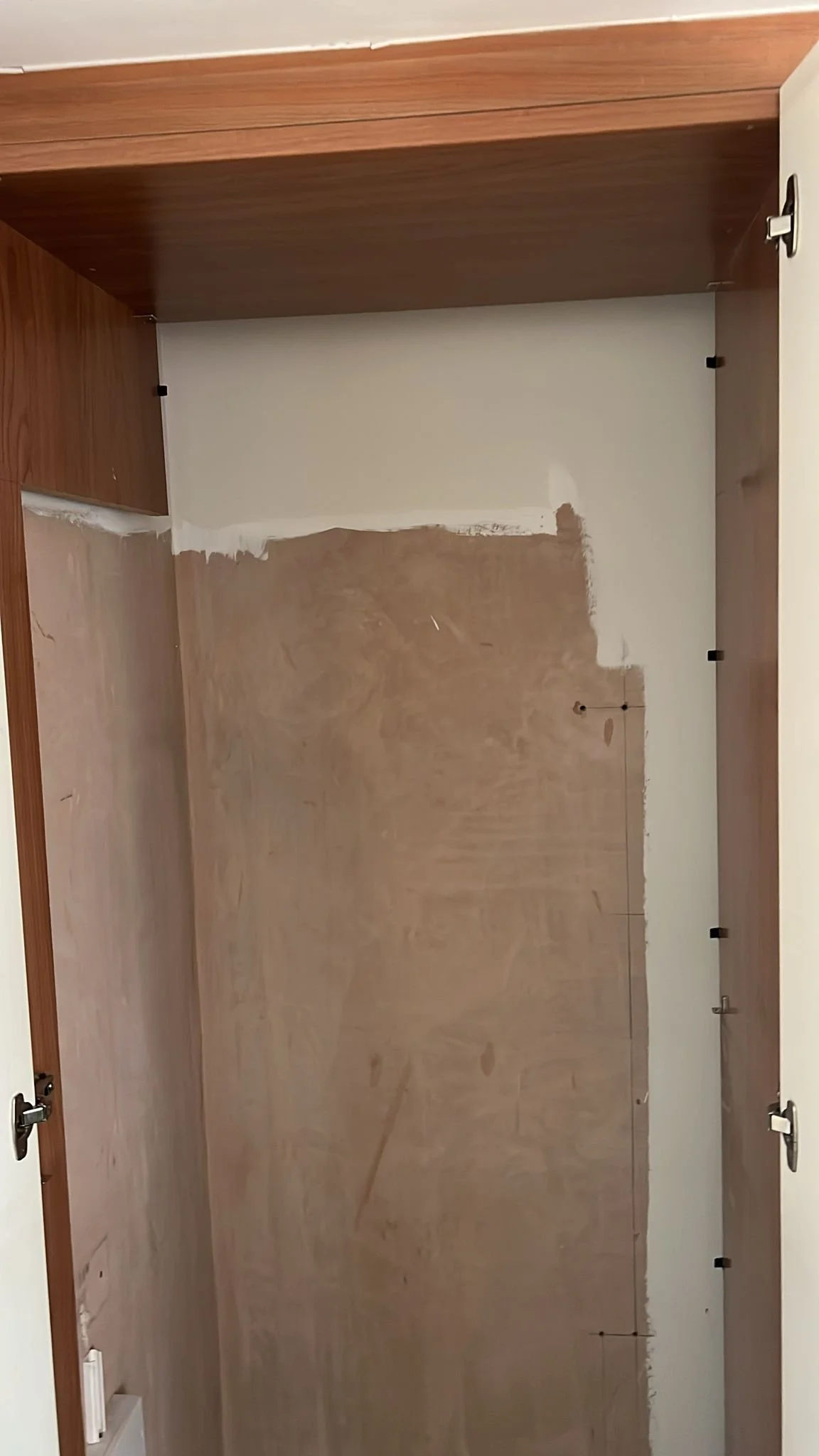

An empty room with wooden flooring and white walls, inside a house or apartment under renovation or remodeling.

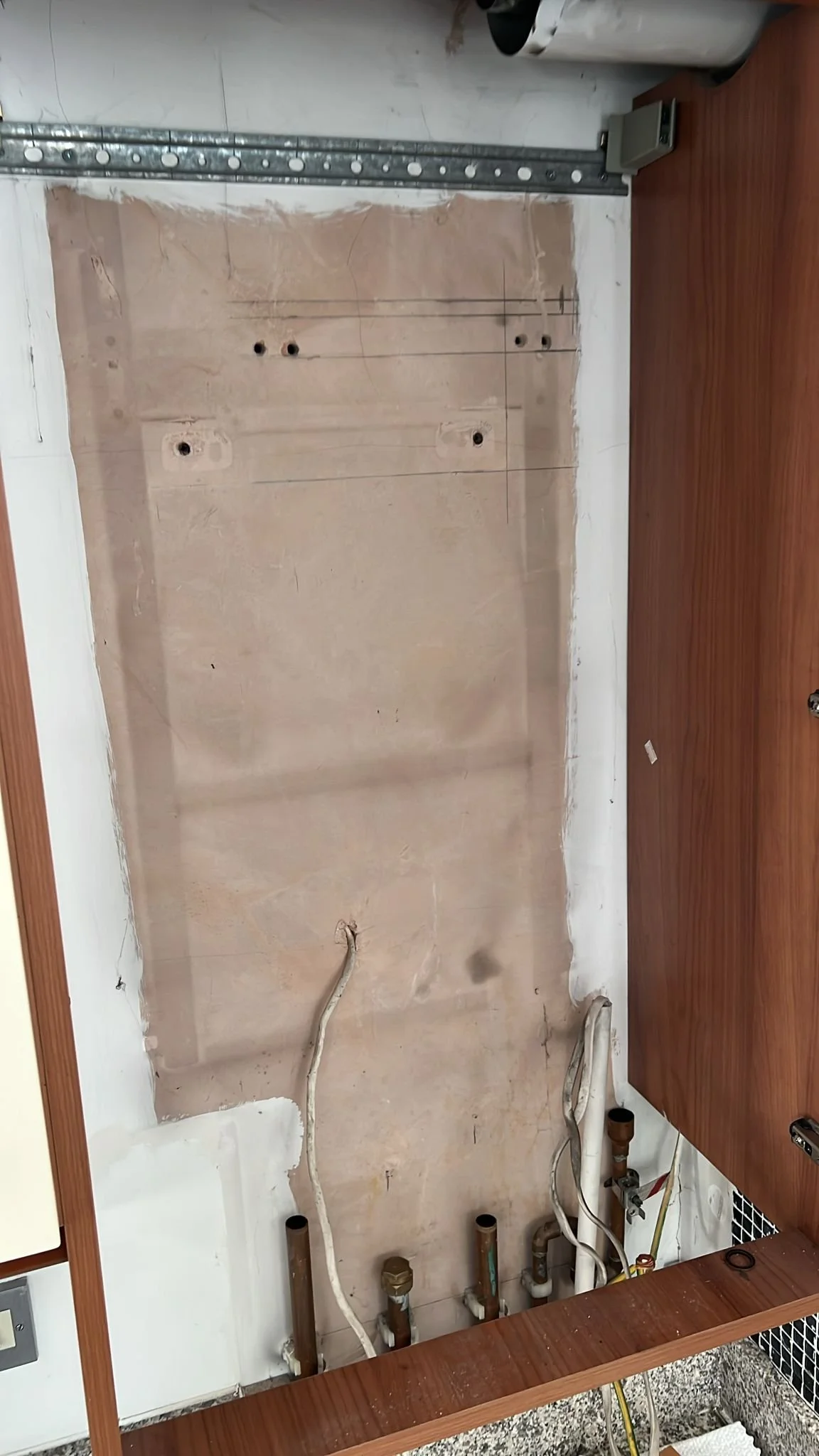

View of a kitchen wall with plumbing pipes, no cabinets or appliances installed yet, and a wooden countertop in the foreground.

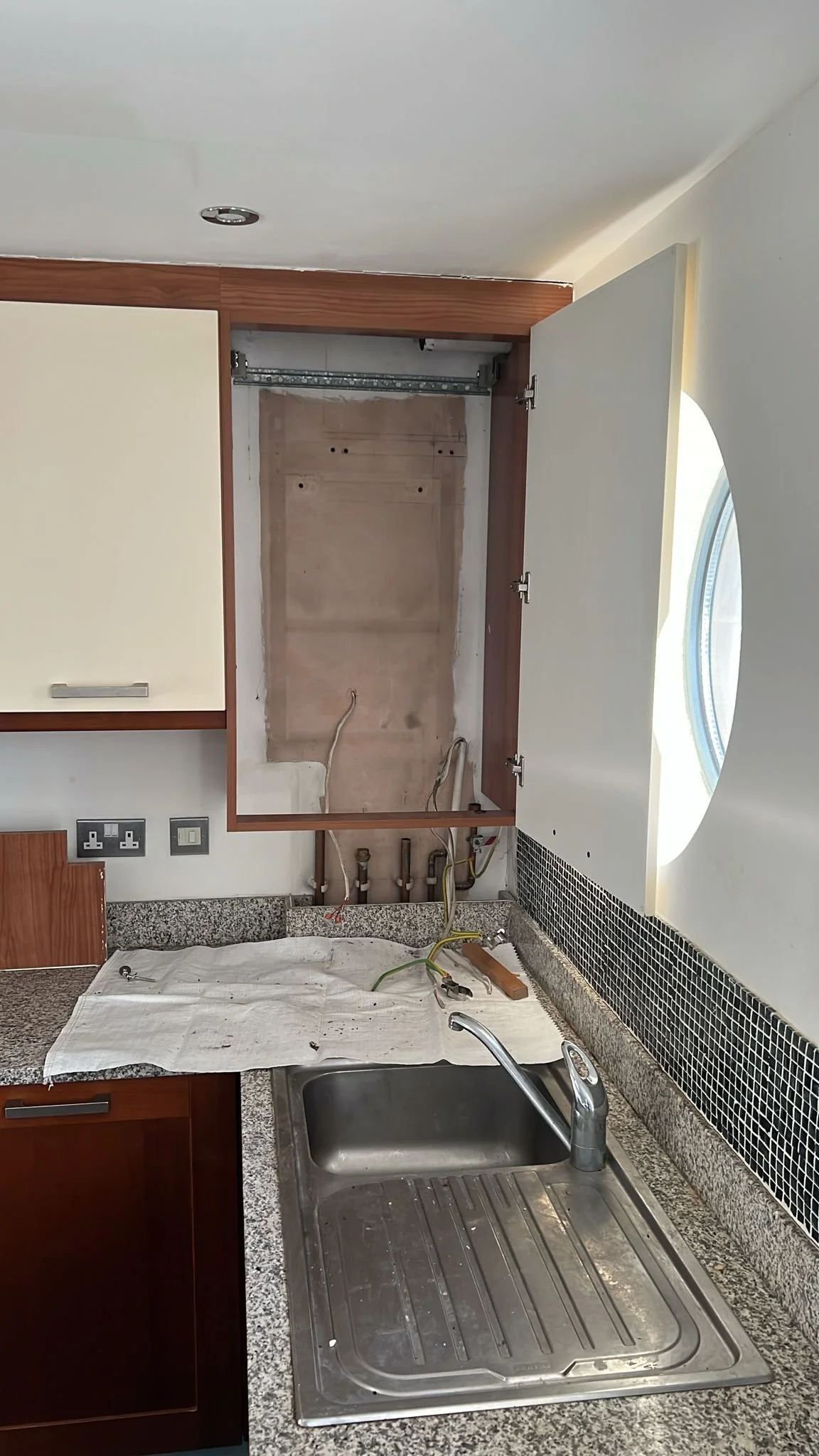

Empty kitchen space with open cabinet above the sink, exposing plumbing and electrical wiring, sink with a stream of water running, granite countertop, and a window on the right side.

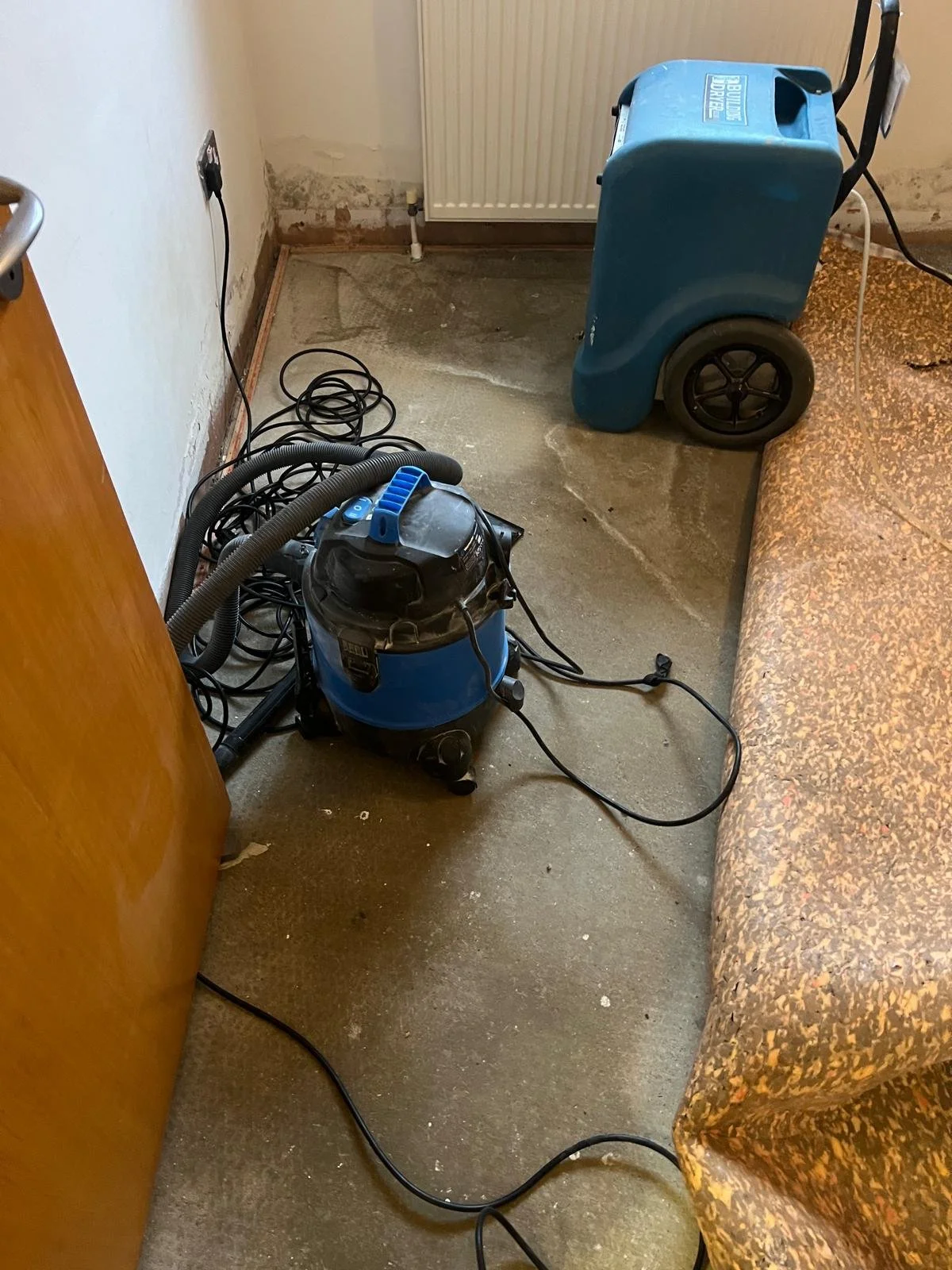

A vacuum cleaner and a carpet cleaning machine in a small room with a worn floor, a wall with peeling paint, and a radiator.

Plumbing System Upgrade

The existing system was removed and replaced with a fully redesigned plumbing layout.

What was previously concealed, inconsistent, and failing was replaced with a structured and controlled installation designed for long-term performance.

The upgrade included:

  • installation of a new incoming main water supply

  • new flow and return pipework to the manifold

  • upgraded hot water distribution system

  • installation of a modern, efficient combi boiler

During the process, the existing system was pressure-tested, which identified an additional leak on the supply line between the boiler and the manifold.

This required the installation of a new flow and return connection to the manifold, which was carried out as part of the works without additional cost to the client.

All concealed push-fit connections were eliminated and replaced with a fully accessible and serviceable system.

Every component was installed with future access, control, and system integrity in mind.

This was addressed as part of our commitment to delivering a complete and properly functioning system.

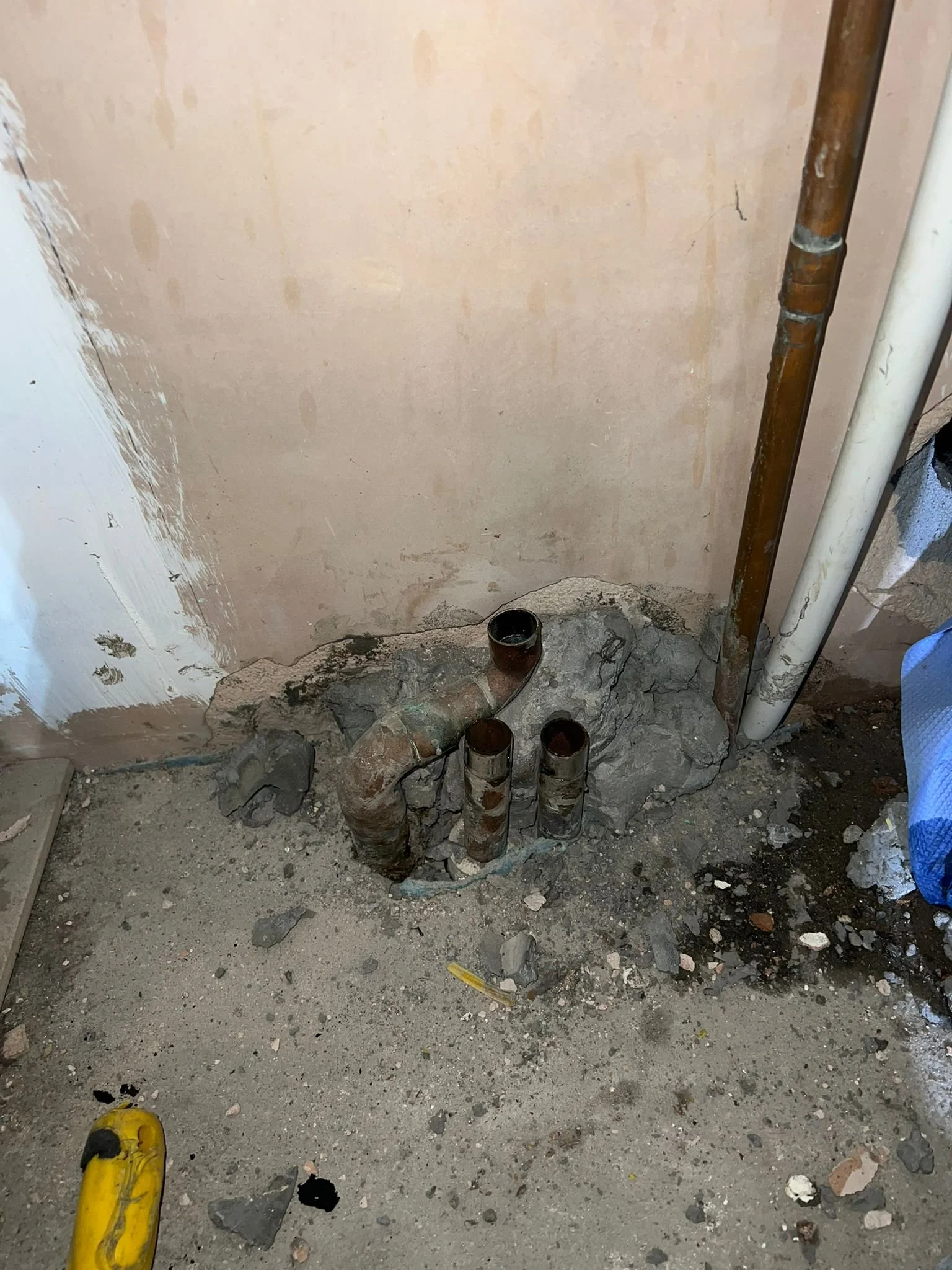

Construction site with exposed pipes and broken concrete on the floor.

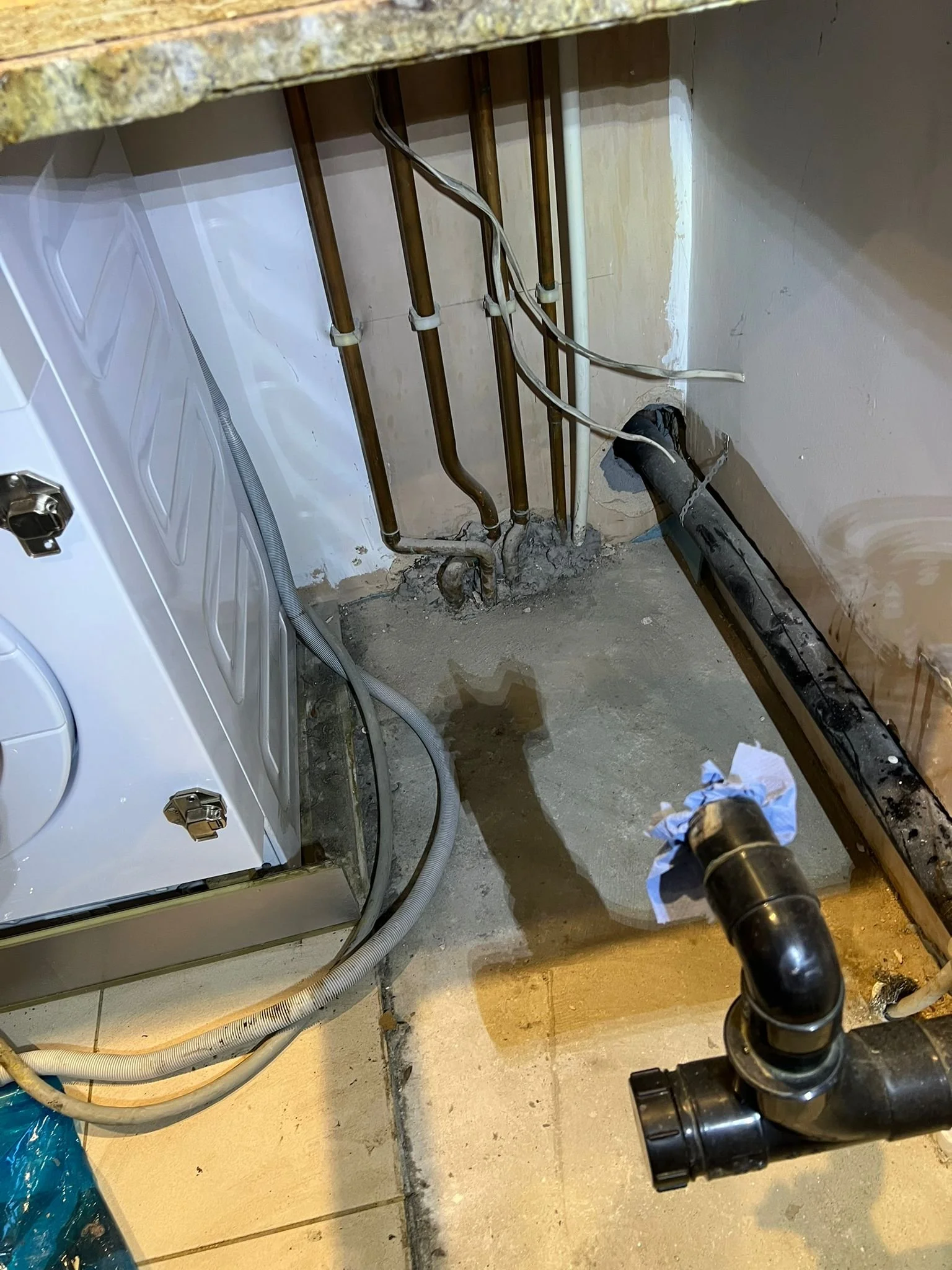

Pipes and tubes under a kitchen or laundry sink with a washing machine, showing plumbing work in progress.

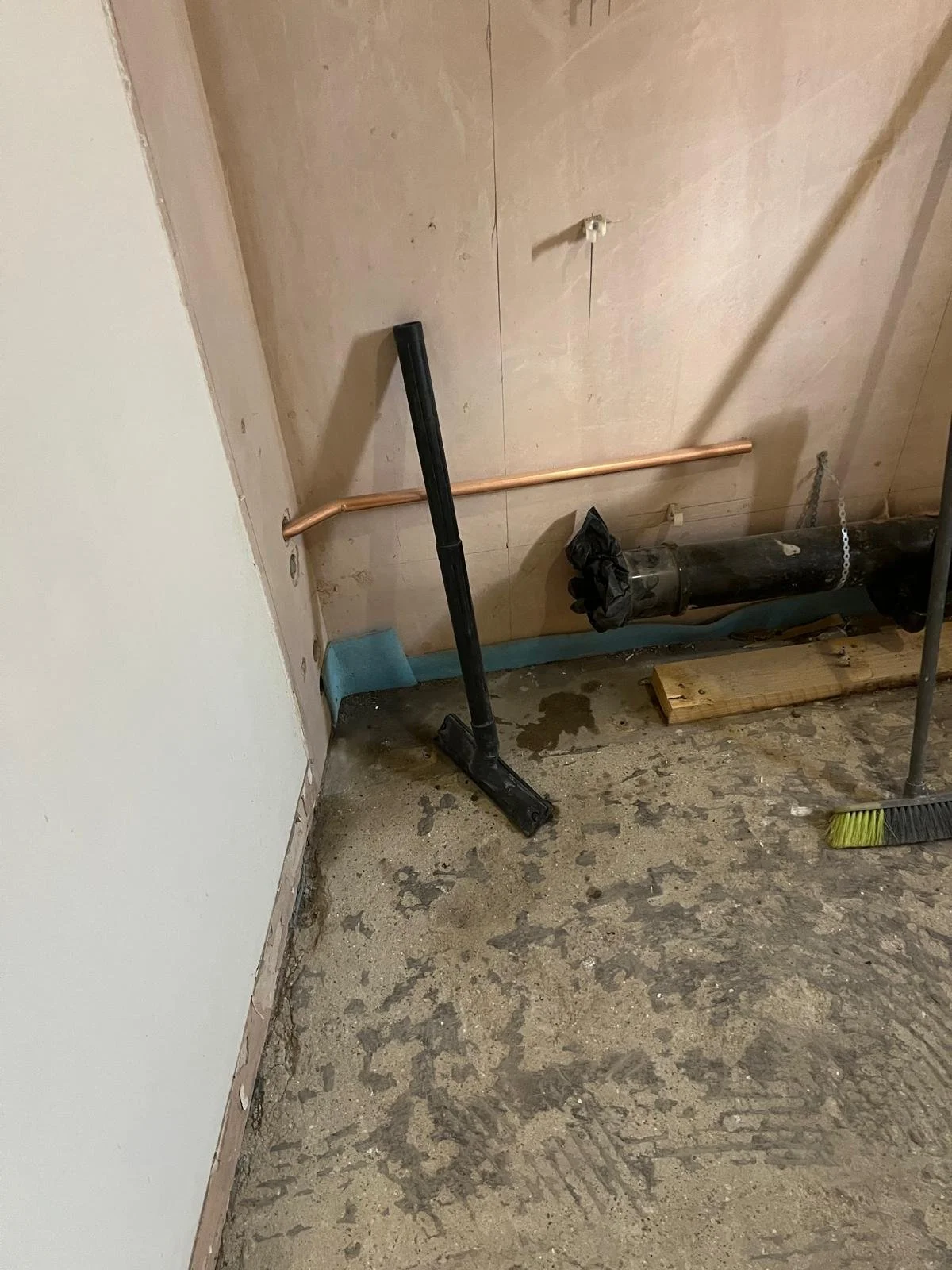

Interior of a construction or renovation site with plumbing and tools, including a black pipe, copper pipe, broom, and a piece of wood on the floor.

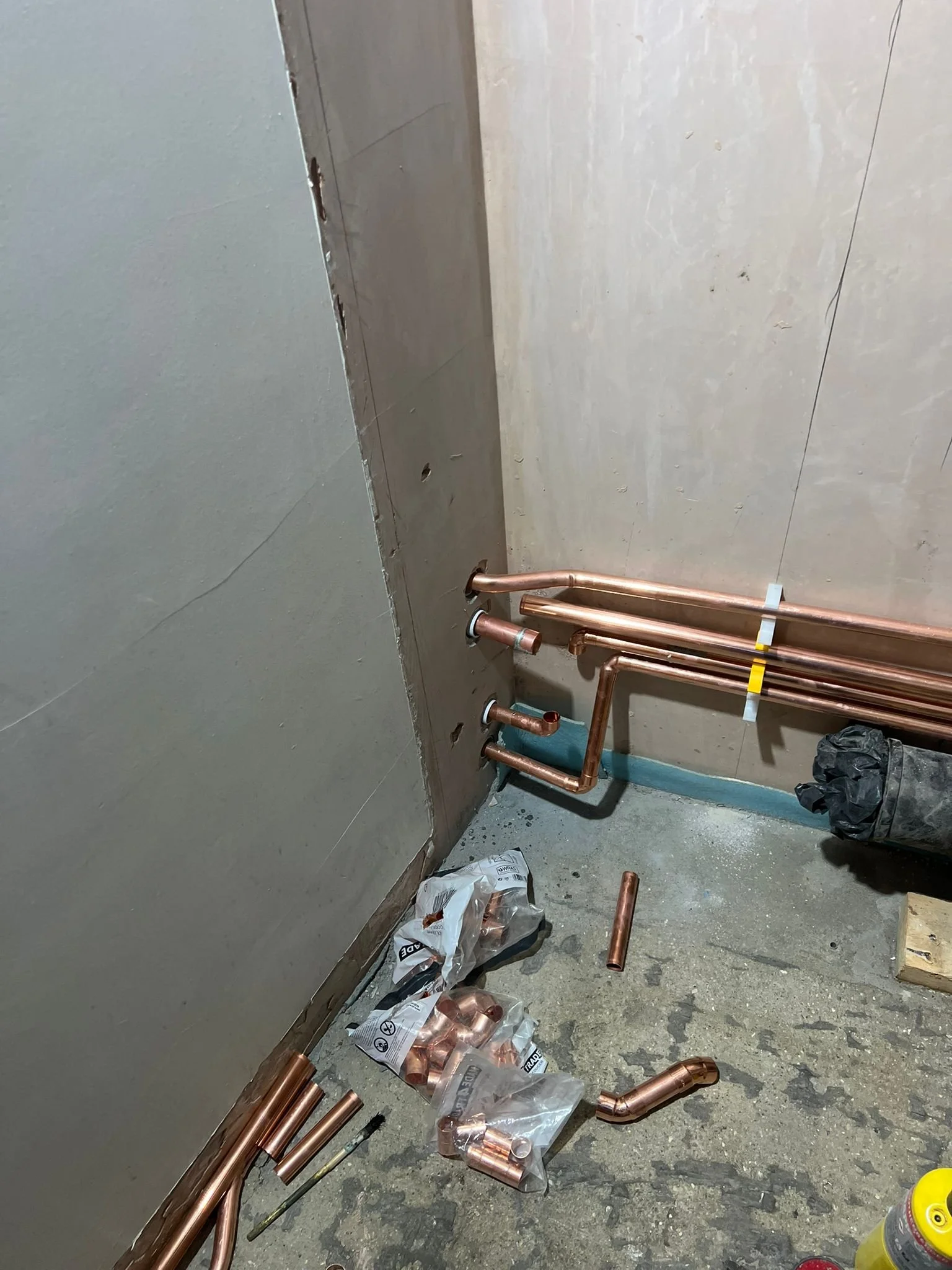

A construction site with copper pipes and fittings on the floor and partially installed along the wall. There are plastic bags and tools scattered around, with a gray wall and concrete floor.

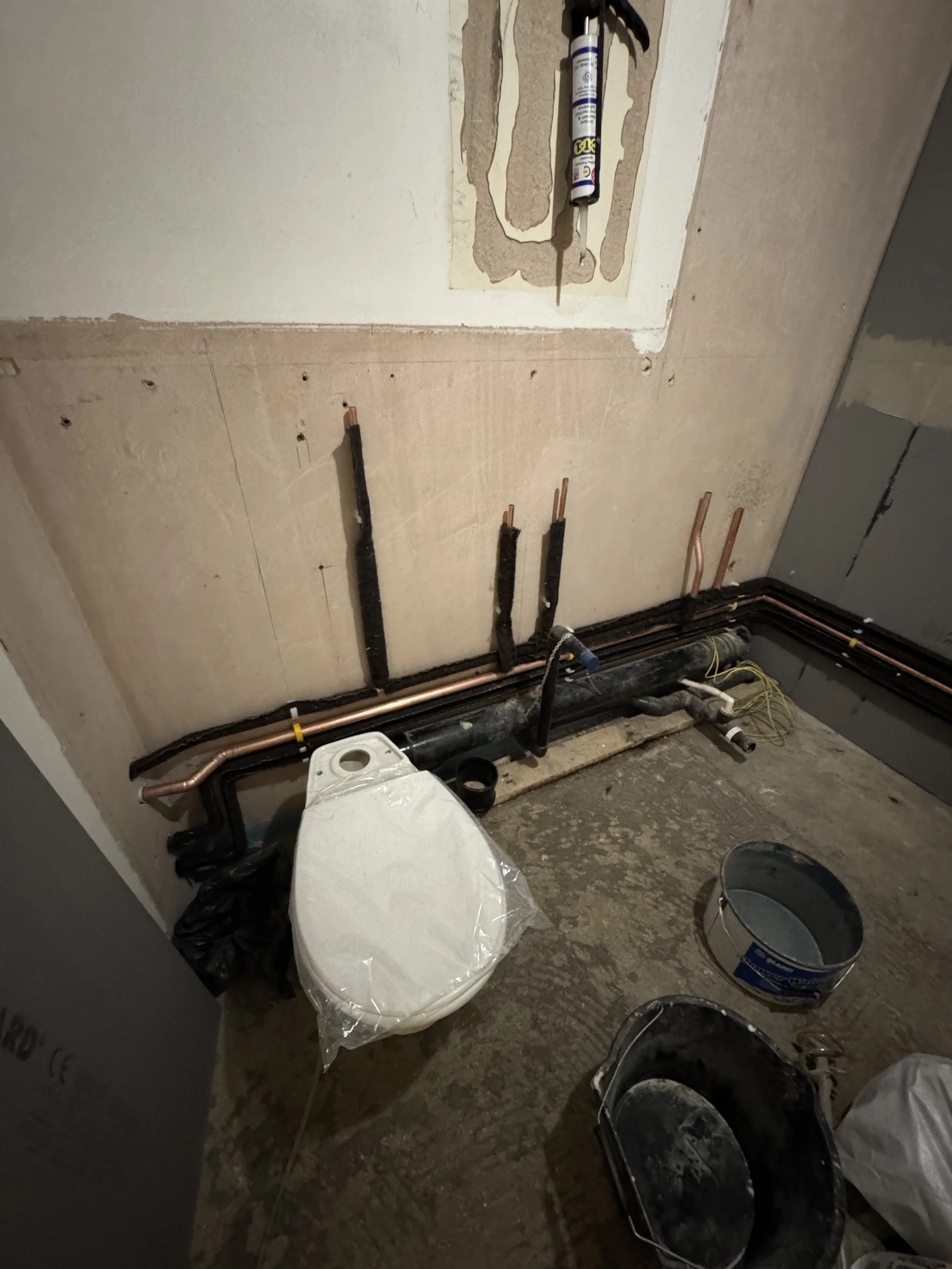

Bathroom renovation with pipes and construction materials, including a toilet wrapped in plastic, buckets, and plumbing pipes on the floor.

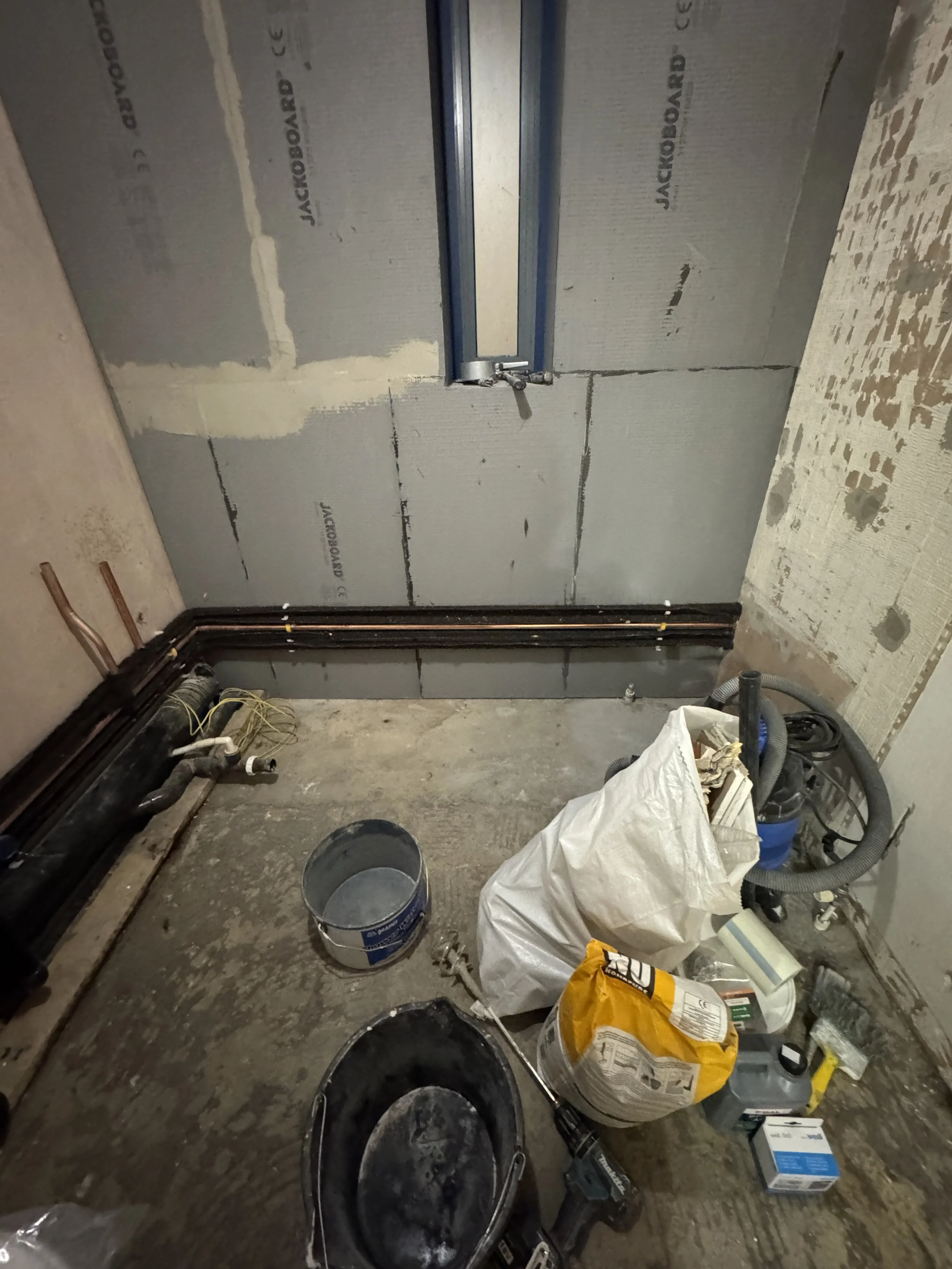

Construction site with tools, pipes, a bucket, a bag of concrete, and an unfinished wall with insulation panels.

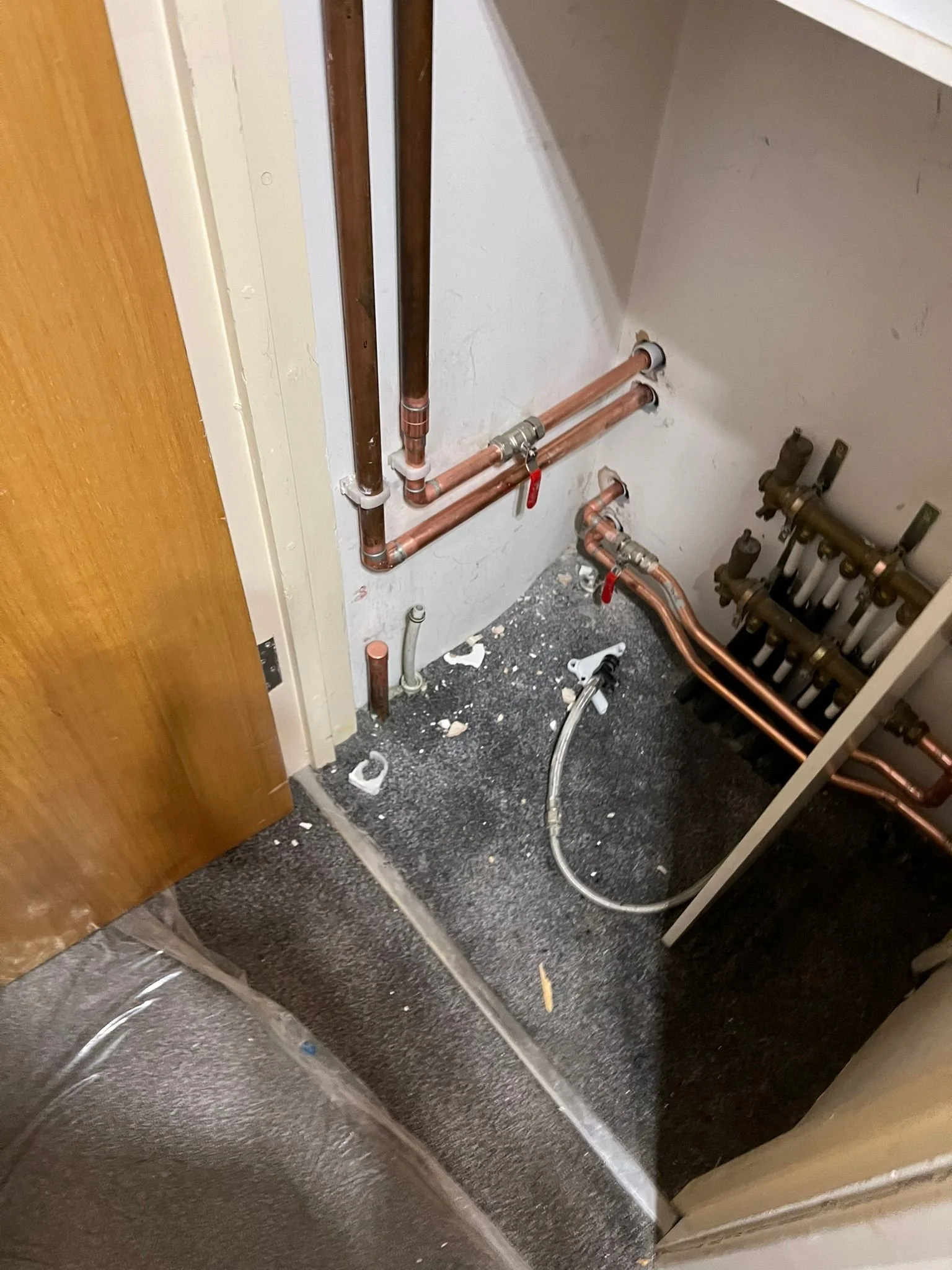

Close-up view of plumbing pipes and fittings inside a wall cavity, with a partially visible floor and door on the left.

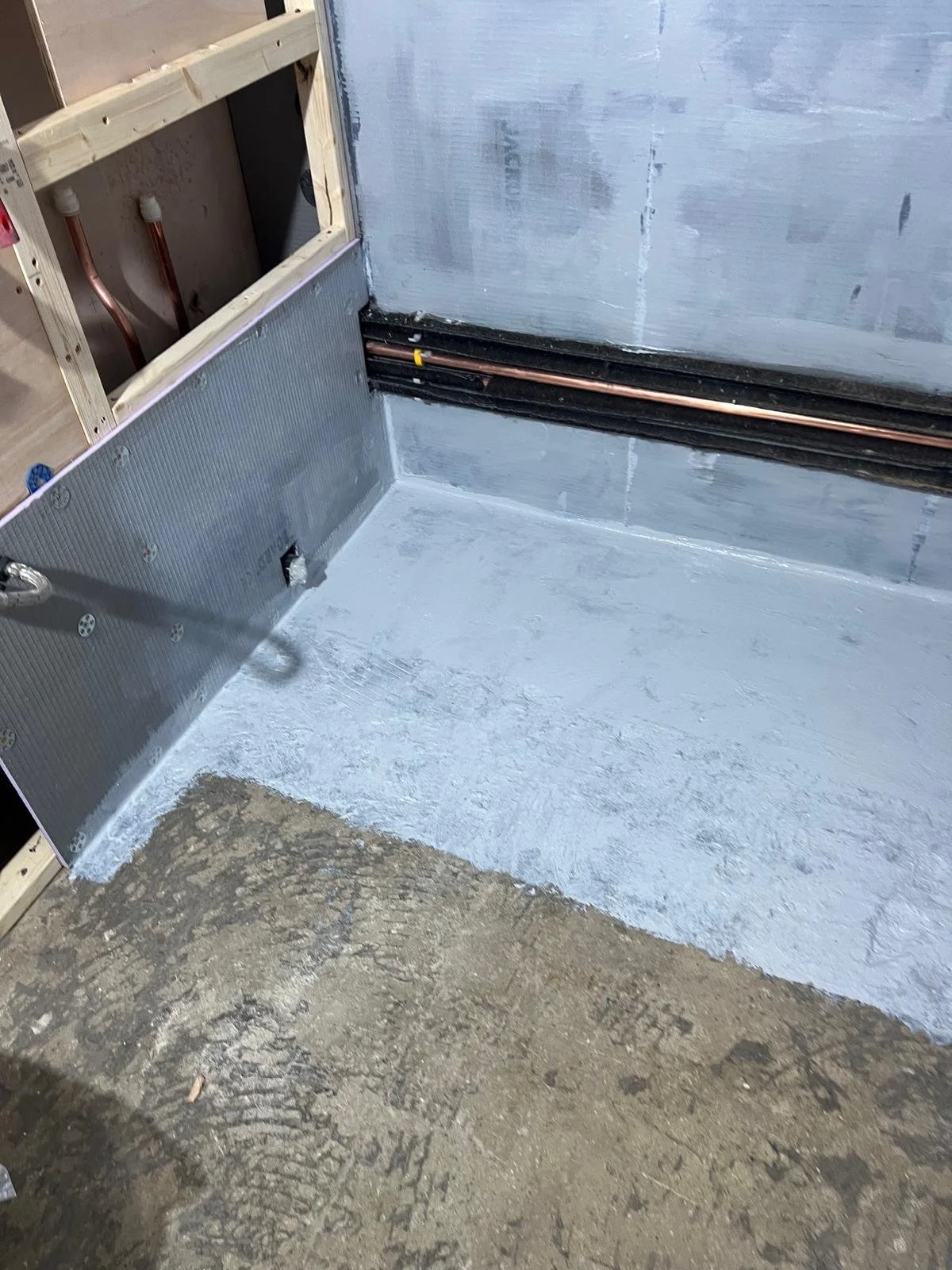

Intersection of a gray concrete floor and a rougher dirt surface, with partially installed electrical wiring and plumbing in a building under construction.

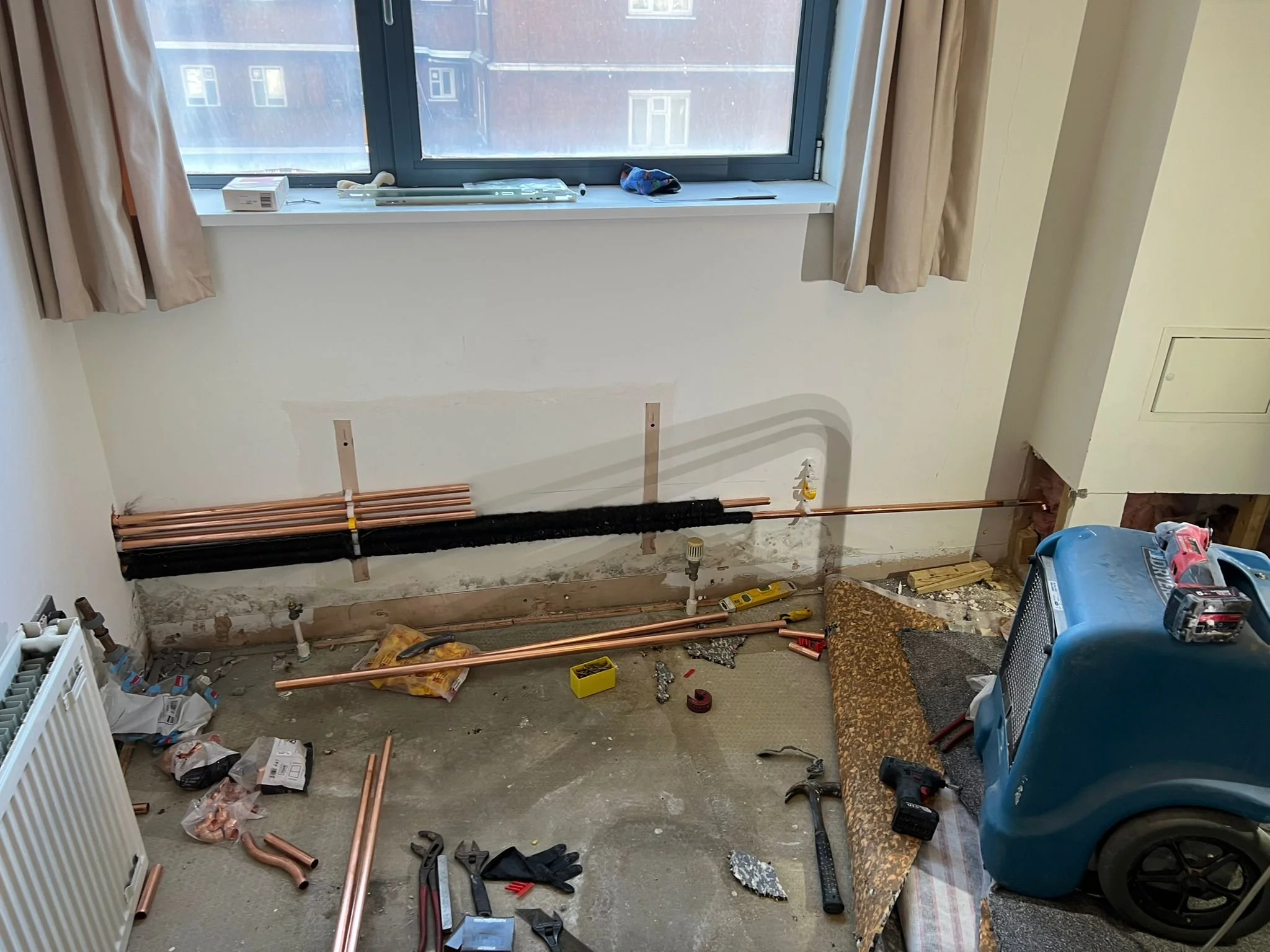

A room under renovation with exposed copper pipes along the bottom of the wall, construction tools and supplies scattered on the floor, a plastic blue container, and a window with beige curtains.

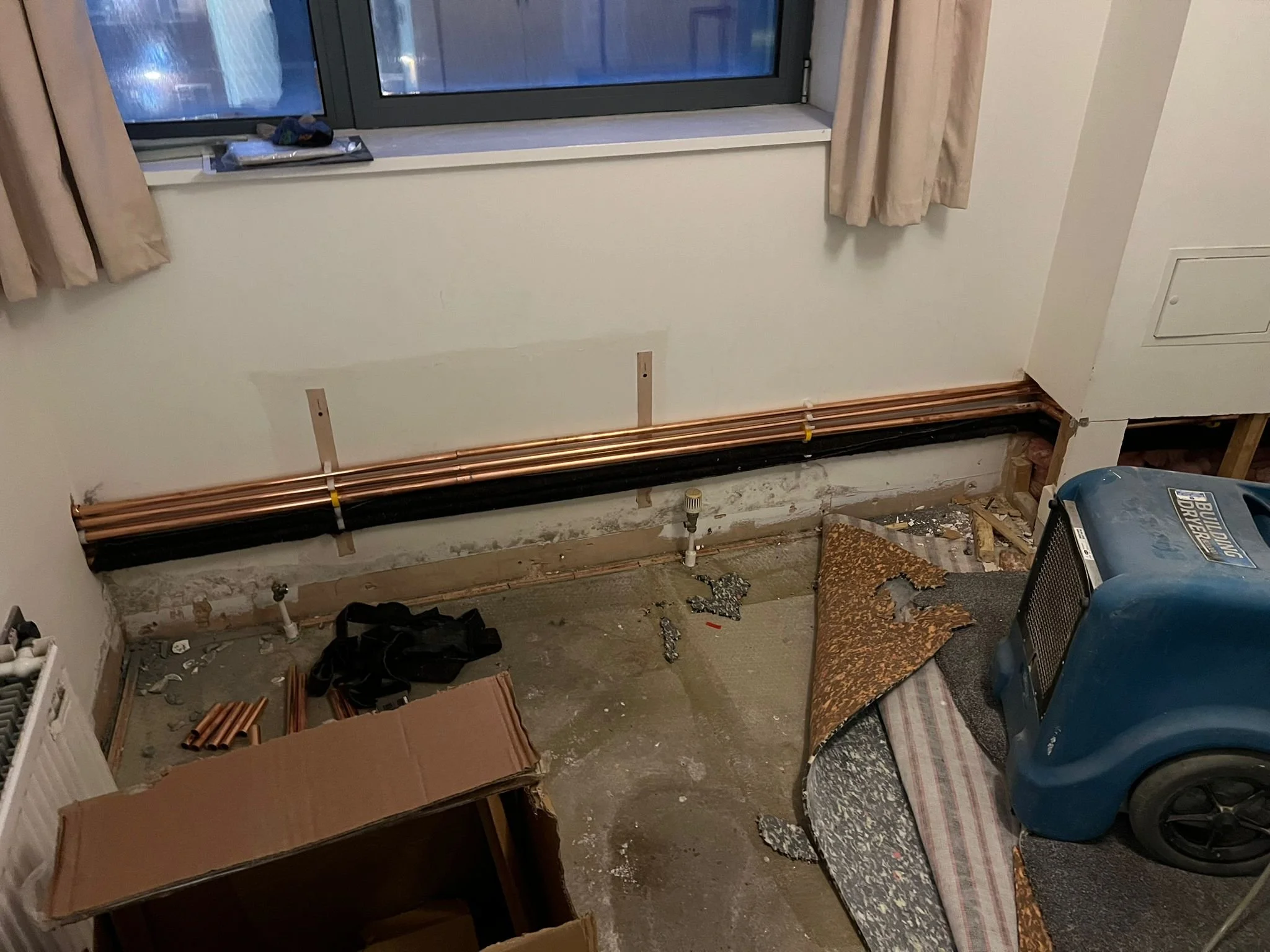

Room under construction or renovation with copper pipes installed along the wall, a window with beige curtains, scattered construction debris, a cardboard box, a blue air compressor, and a small table with a striped cover.

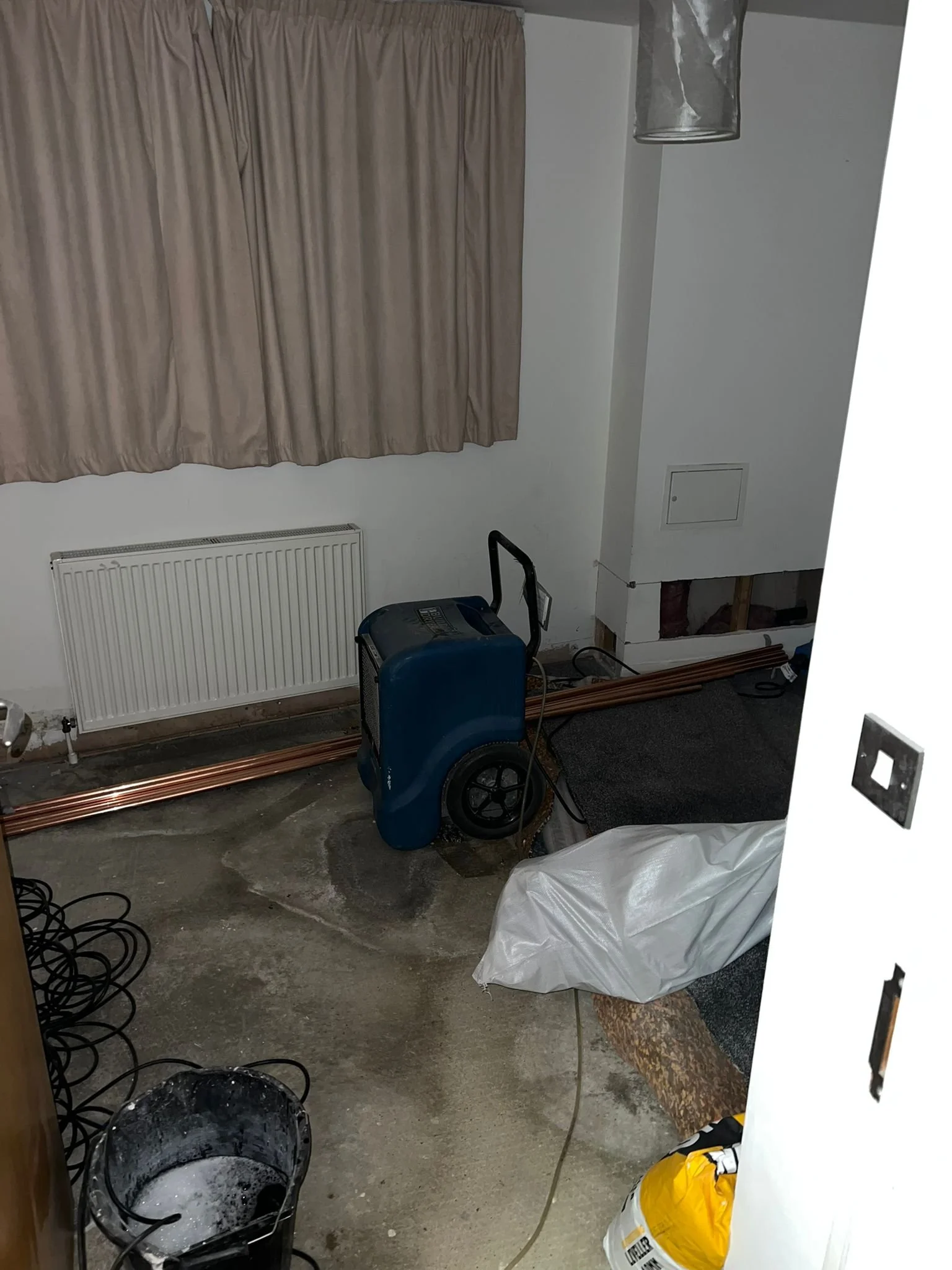

A partially renovated room with a beige curtain covering a window, a white radiator below the window, a black and blue portable heater, a white plastic bag, a yellow bag of instant oatmeal, a gray and black carpet, some wooden molding, some electrica

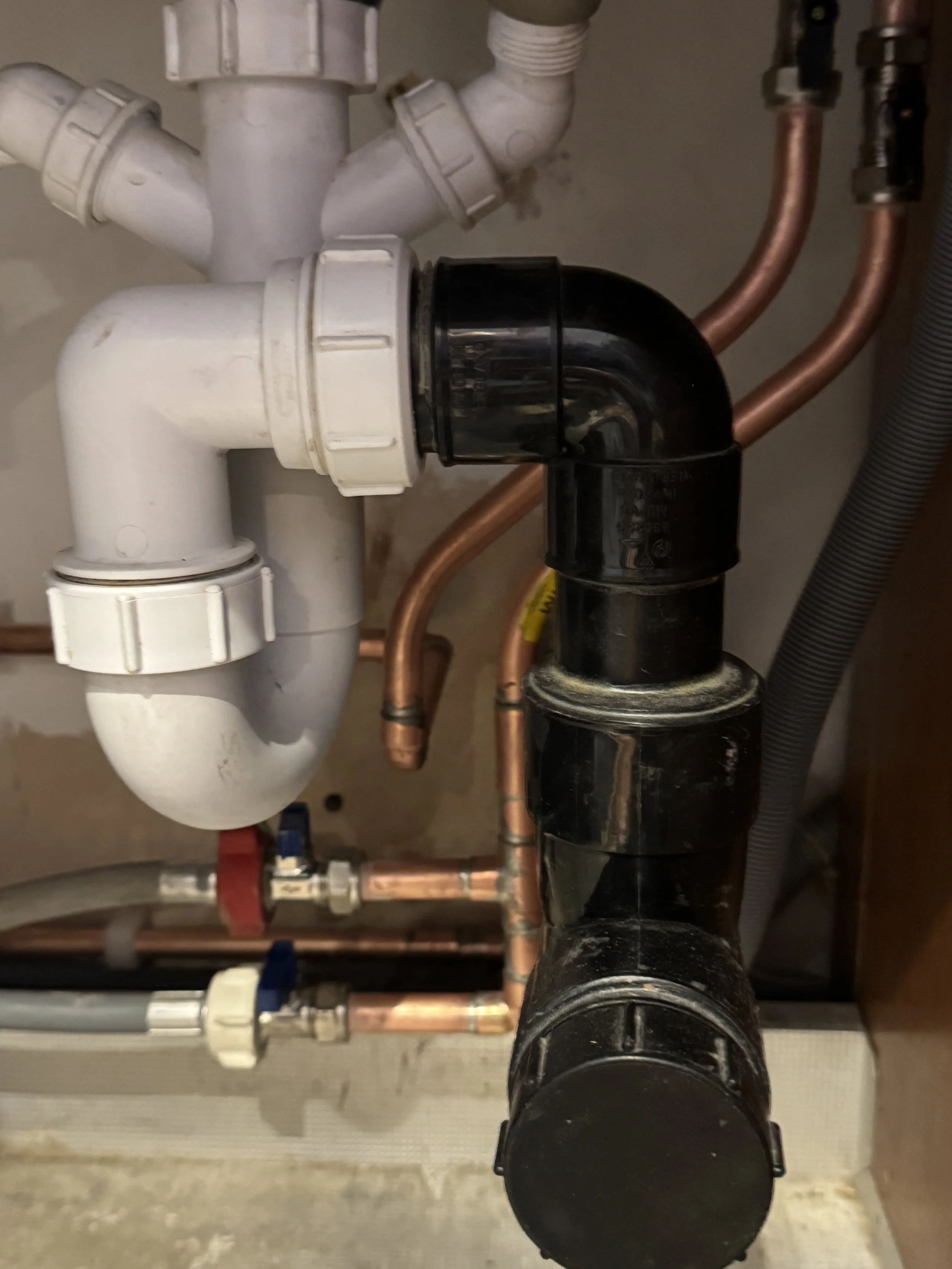

A view of plumbing pipes including white PVC pipes and copper pipes connected to each other, with some fittings and a black pipe in the foreground.

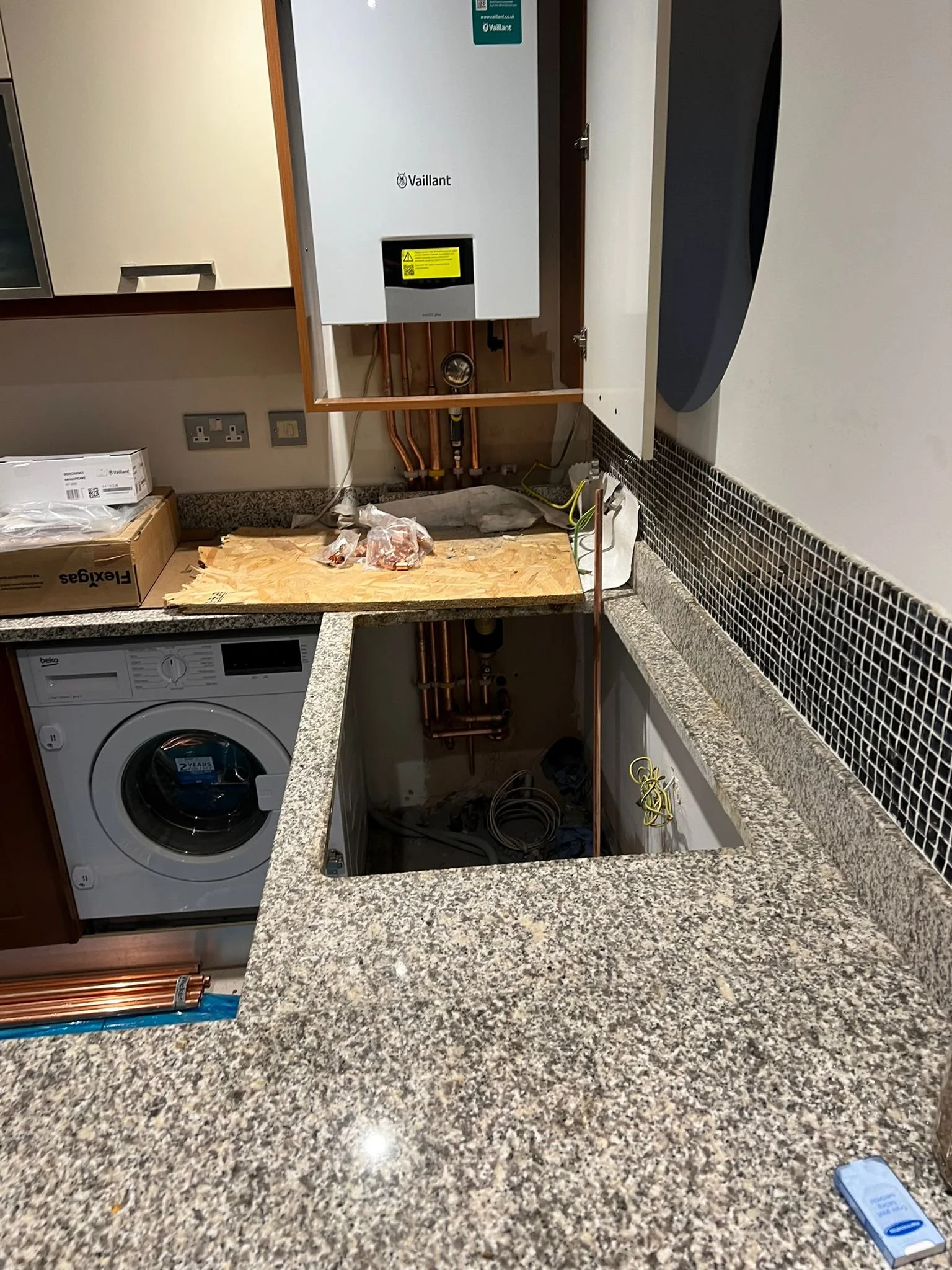

Kitchen countertop with open cabinet, electrical outlet, washing machine, and plumbing for a sink under construction. There are copper pipes, construction materials, and tools present.

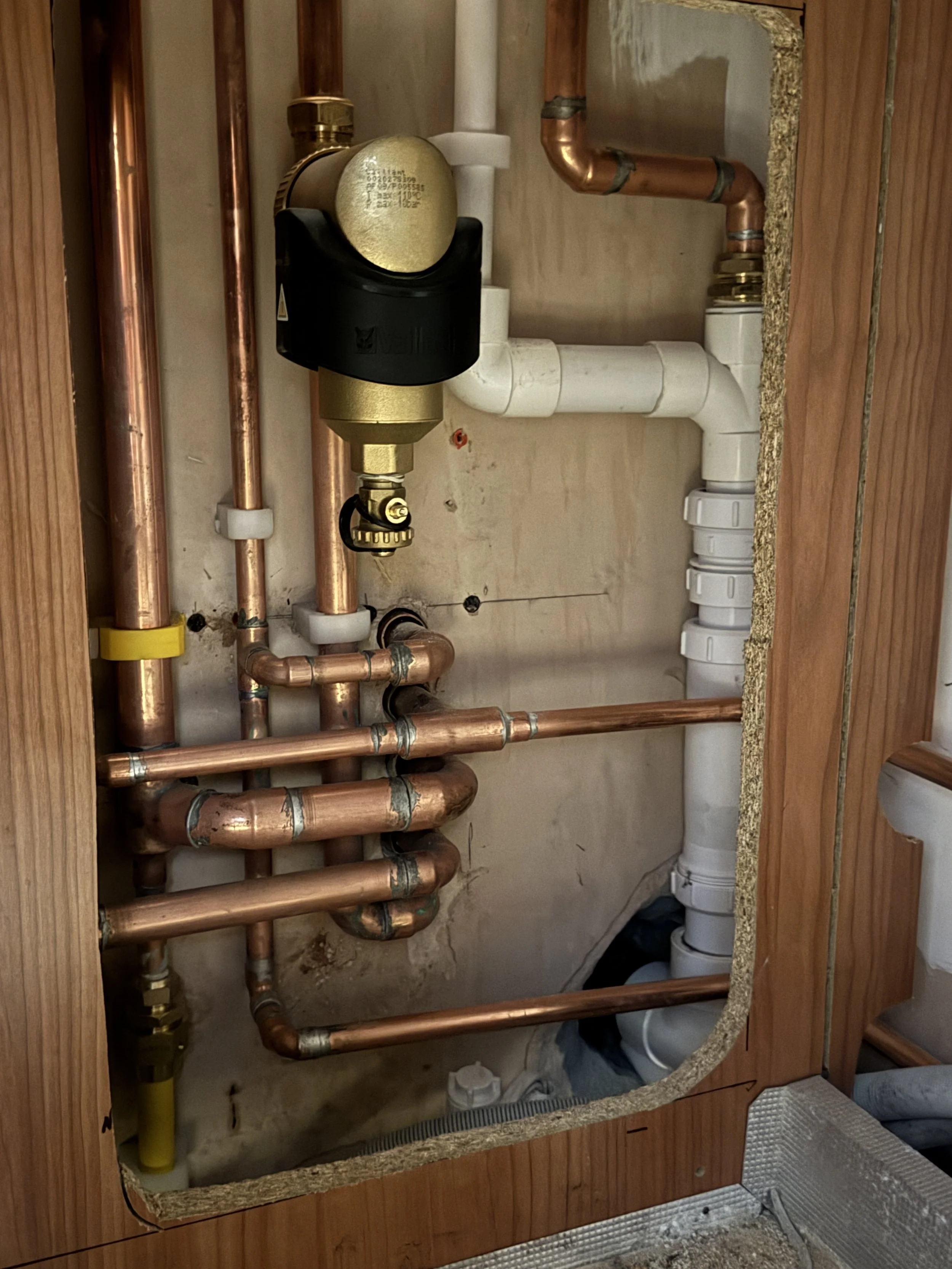

Close-up view of copper plumbing pipes and PVC pipes installed in a wooden kitchen cabinet, with some pipes wrapped in insulation.

System Rebuild & Bathroom Installation

With the new plumbing infrastructure in place, the system was rebuilt in a controlled and structured manner.

At the same time, the bathroom was fully reconstructed — ensuring that both the mechanical system and the finished environment were aligned and built to the same standard.

All pipework was installed with clear routing, proper spacing, and full accessibility for future maintenance.

In parallel, the bathroom was rebuilt with correct wet-area preparation, including:

  • proper waterproofing and tanking

  • controlled substrate preparation

  • installation of new sanitaryware and finishes

Each component — both mechanical and visible — was designed to function as part of a single, integrated system.

This ensured:

  • balanced water distribution

  • stable system pressure

  • controlled temperature delivery

  • long-term durability of both the installation and the bathroom environment

What was previously concealed, inconsistent, and failing is now structured, controlled, and built to last.

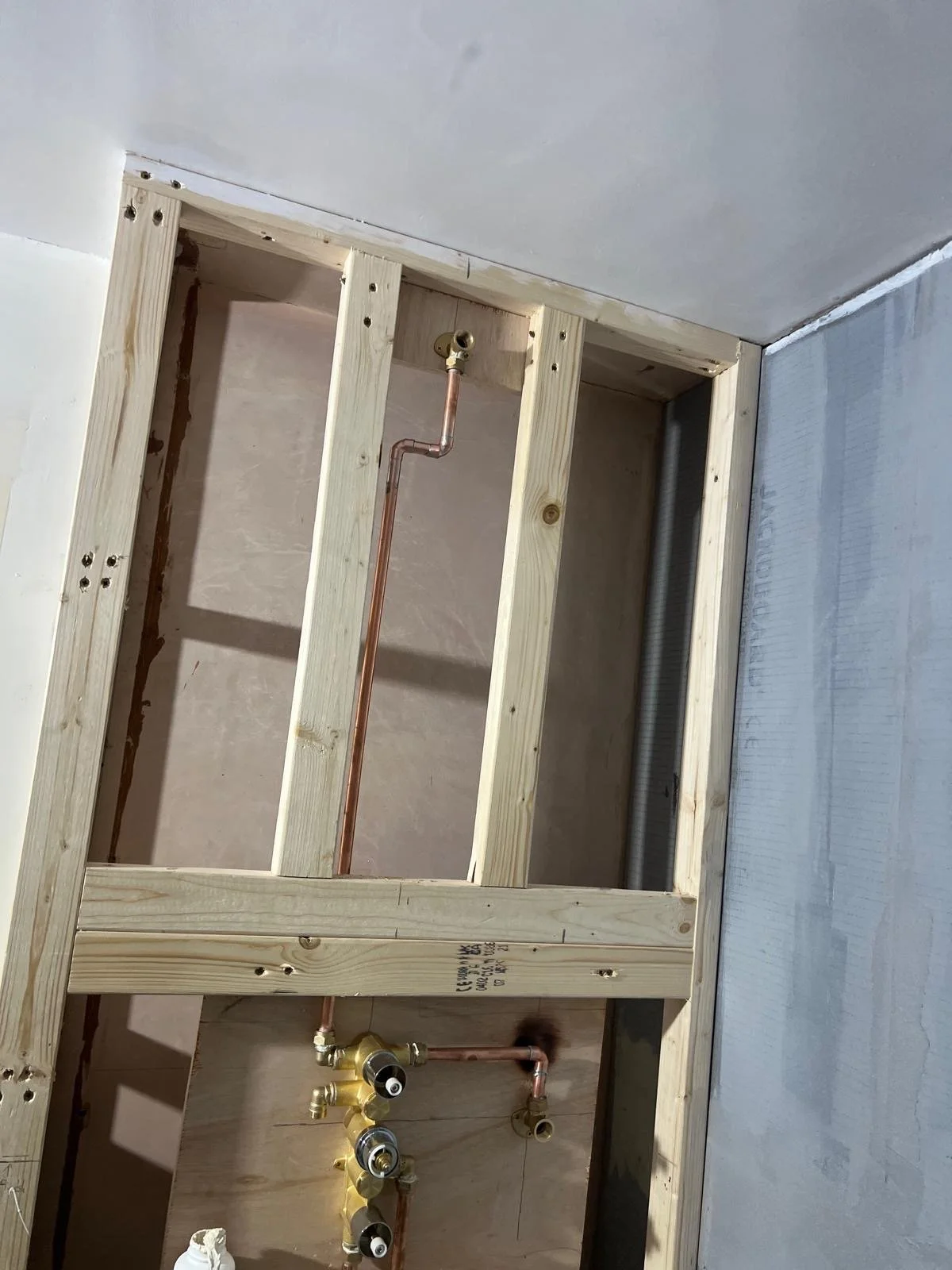

Construction framing for a wall with plumbing and water shut-off valves installed, in an unfinished room with drywall partially installed.

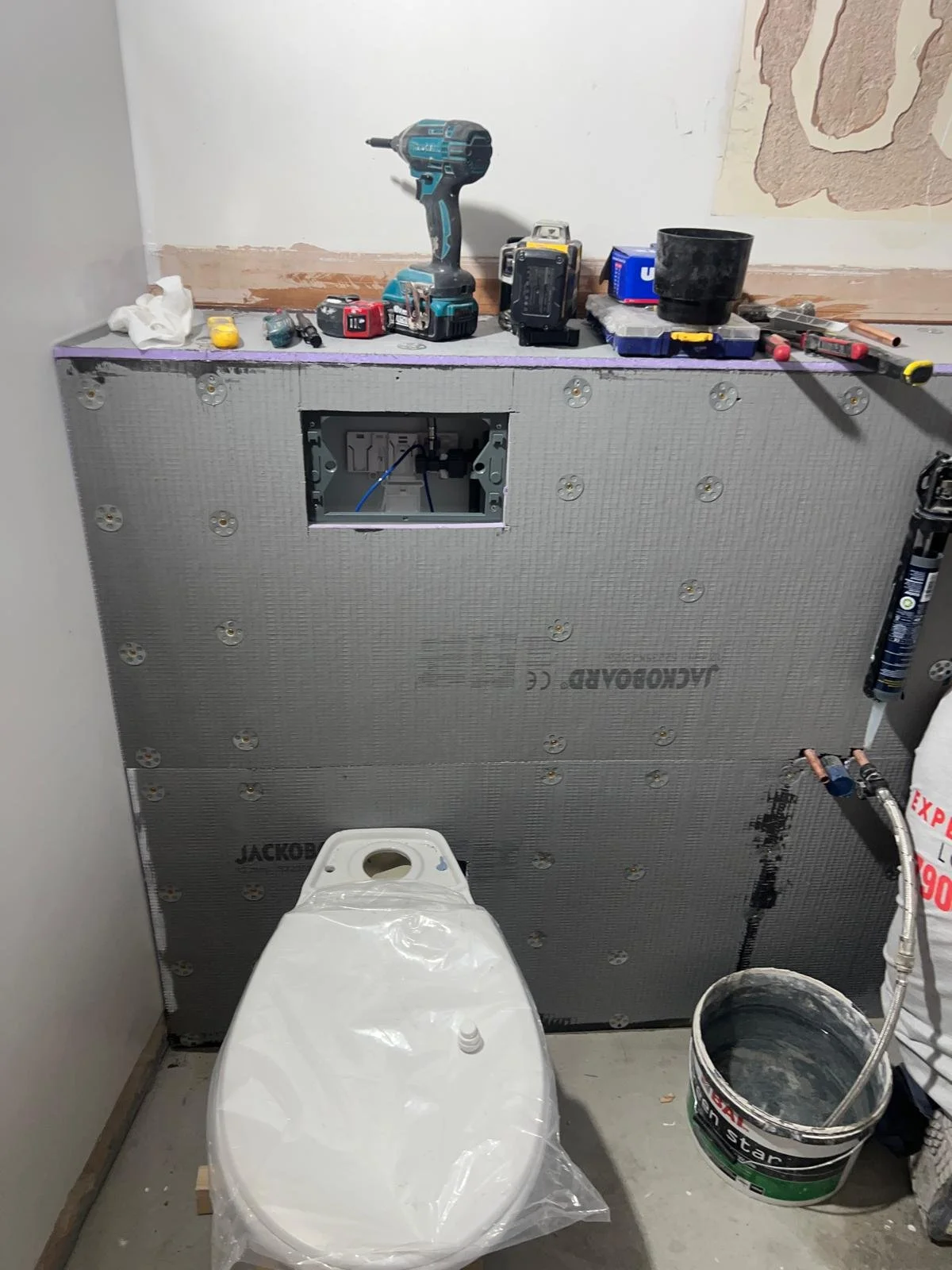

Bathroom under renovation showing a toilet with a plastic cover, construction tools, and materials like drywall, a drill, a bucket, and a wall with partially finished drywall.

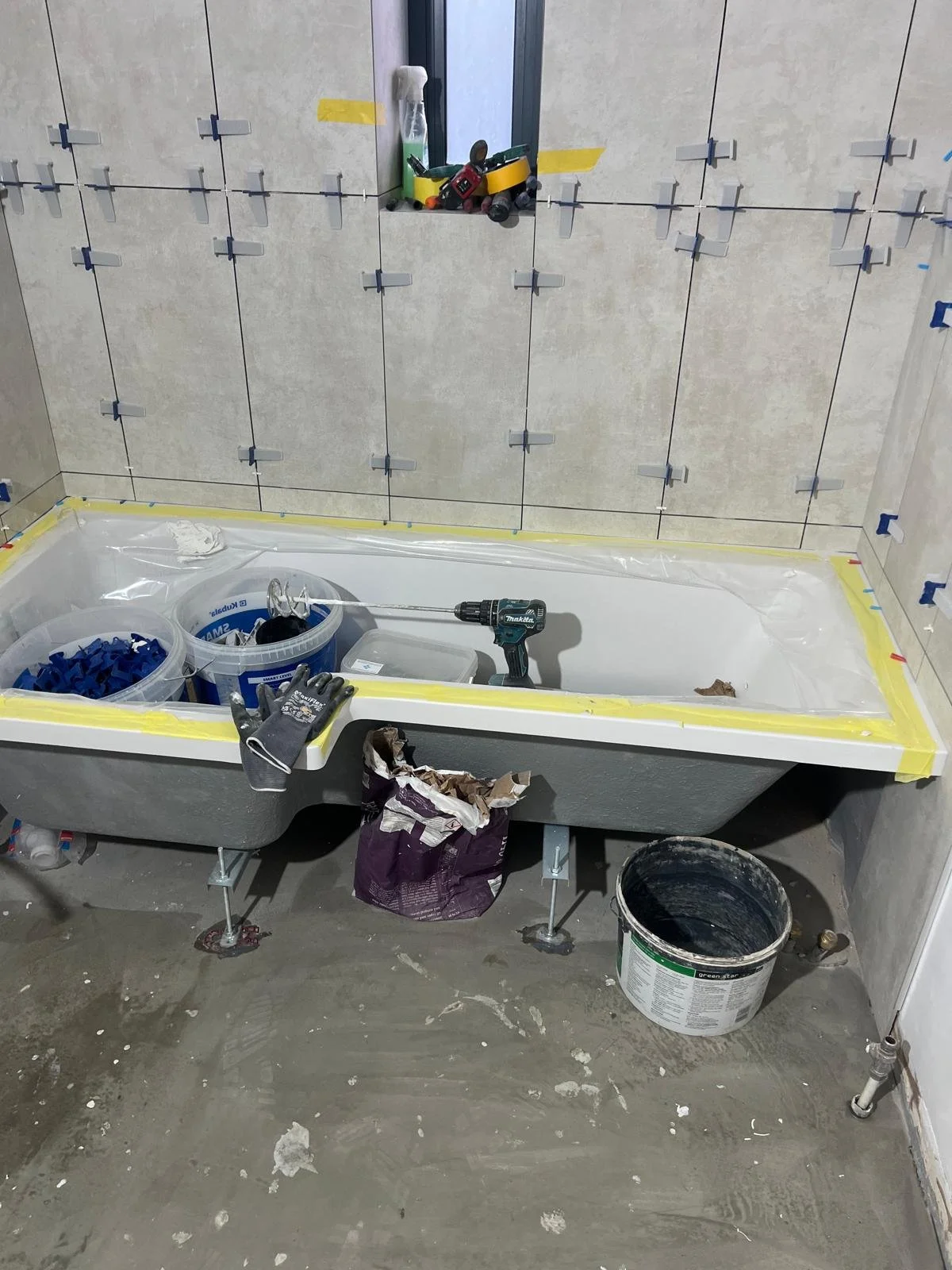

Bathroom under construction with a bathtub, tools, construction materials, and partially tiled walls.
Interior view of a bathroom under construction showing wooden framing, copper pipes, and plumbing fixtures.

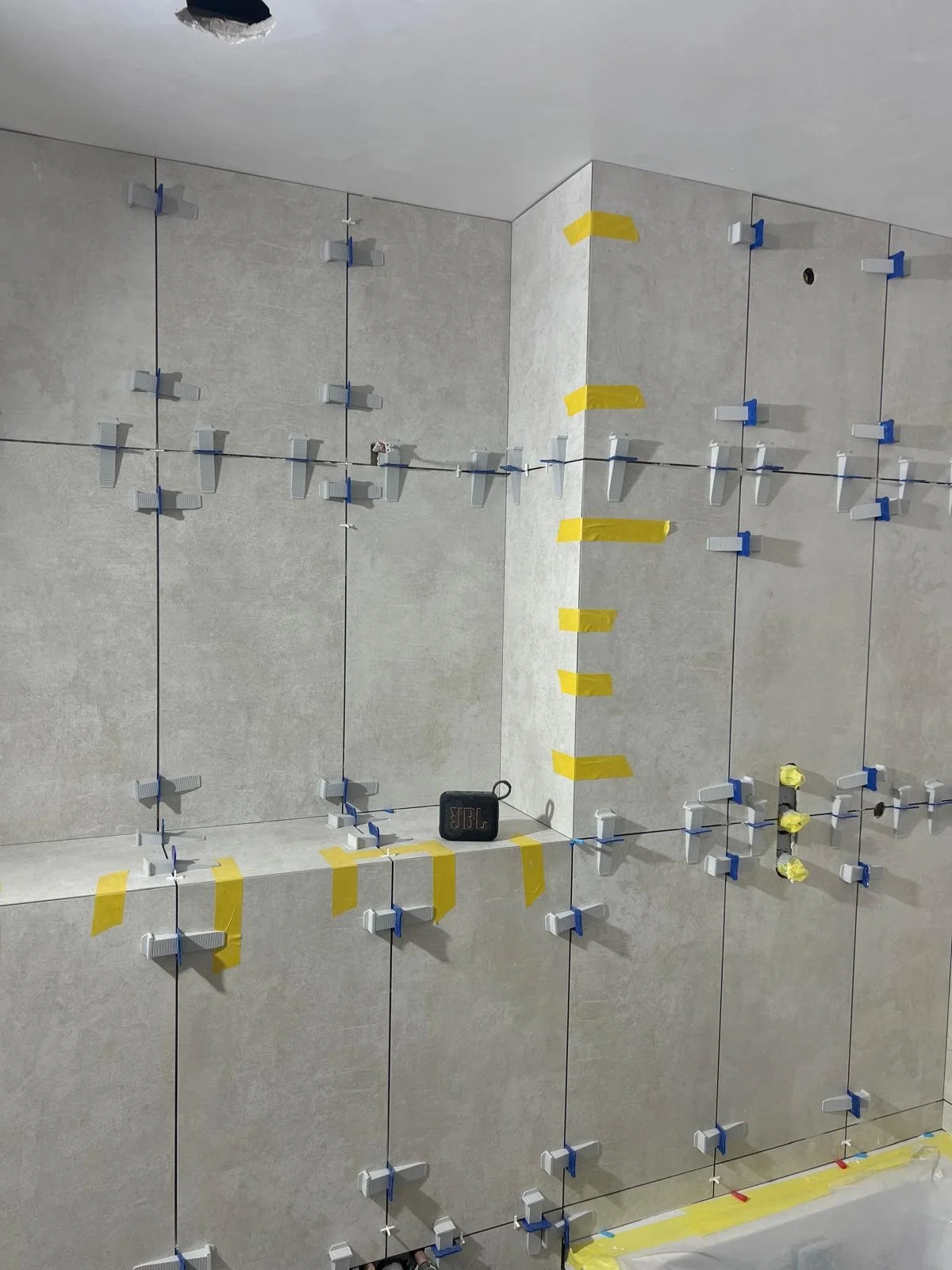

Installing large beige tiles on a wall with blue and yellow spacers and tape, with a small JBL speaker placed on a ledge.

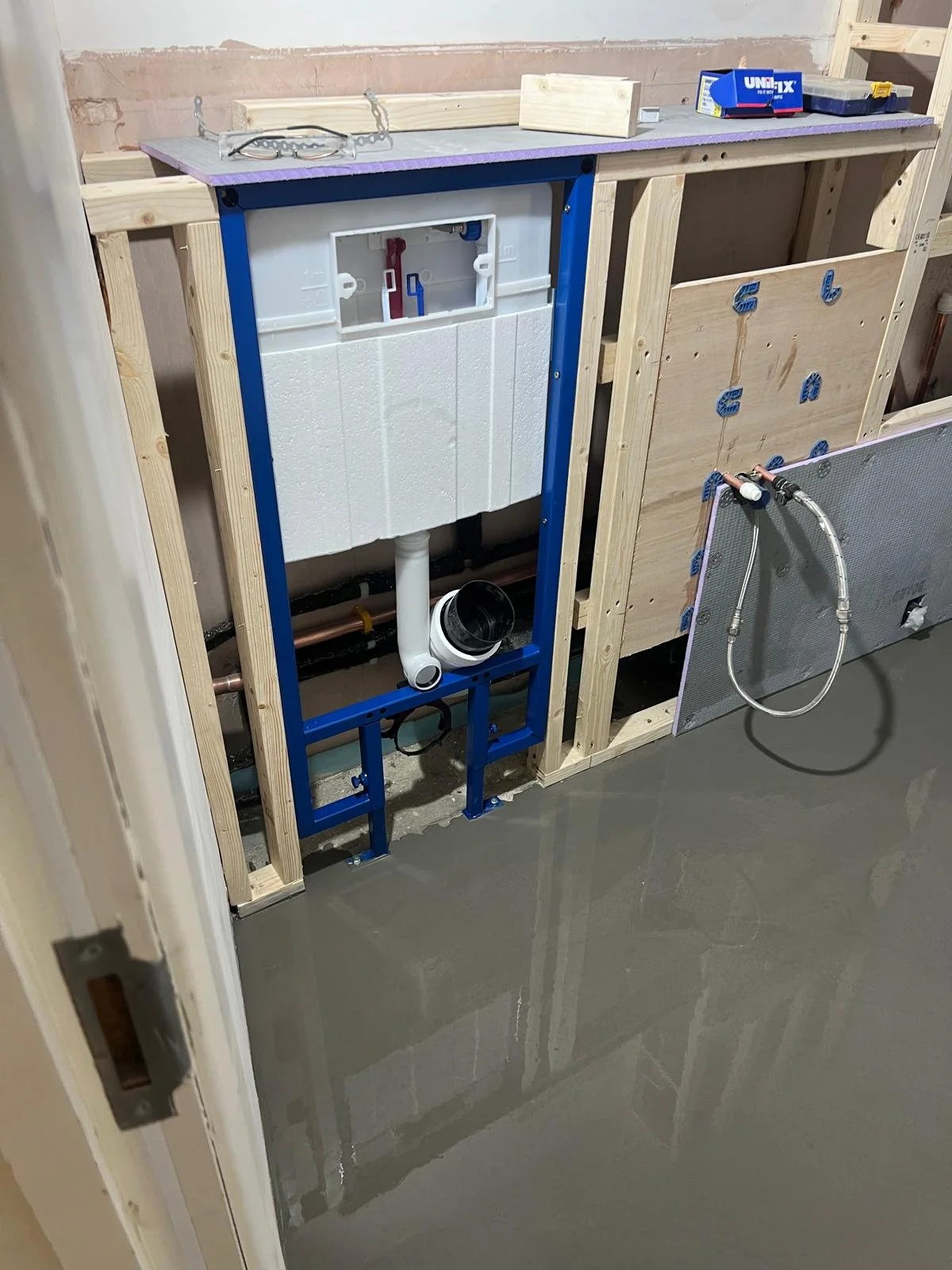

Under construction bathroom with a toilet tank frame mounted on wooden studs, plumbing pipes, and a mounted heater or radiator on the wall, with tools and materials on a countertop.

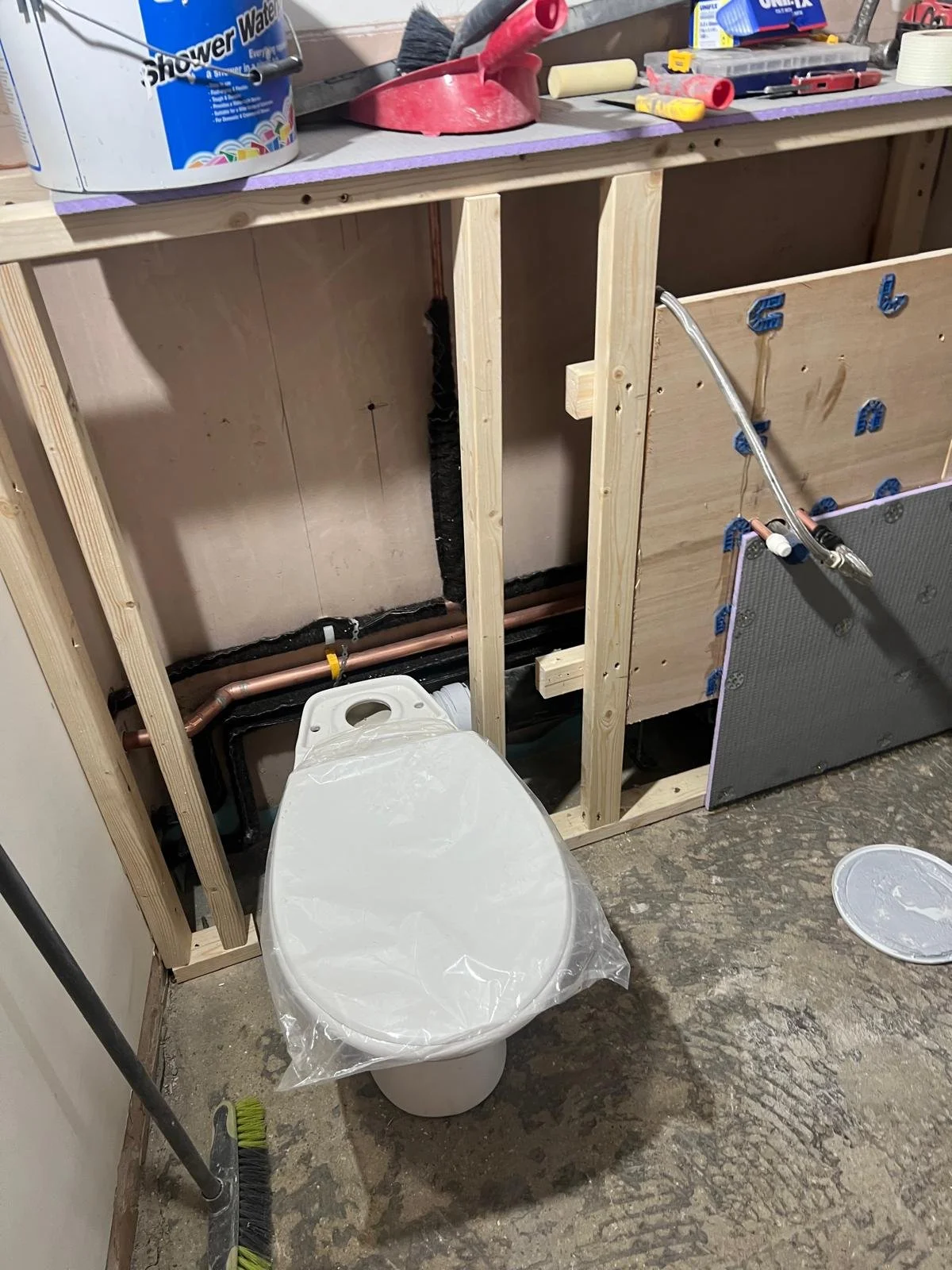

A partially constructed bathroom with exposed wooden framing, plumbing, and a toilet wrapped in plastic. Tools and materials are on the work surface above.
A bathroom under construction with a toilet seat wrapped in plastic, tiled walls, and construction clips and wires on the wall.

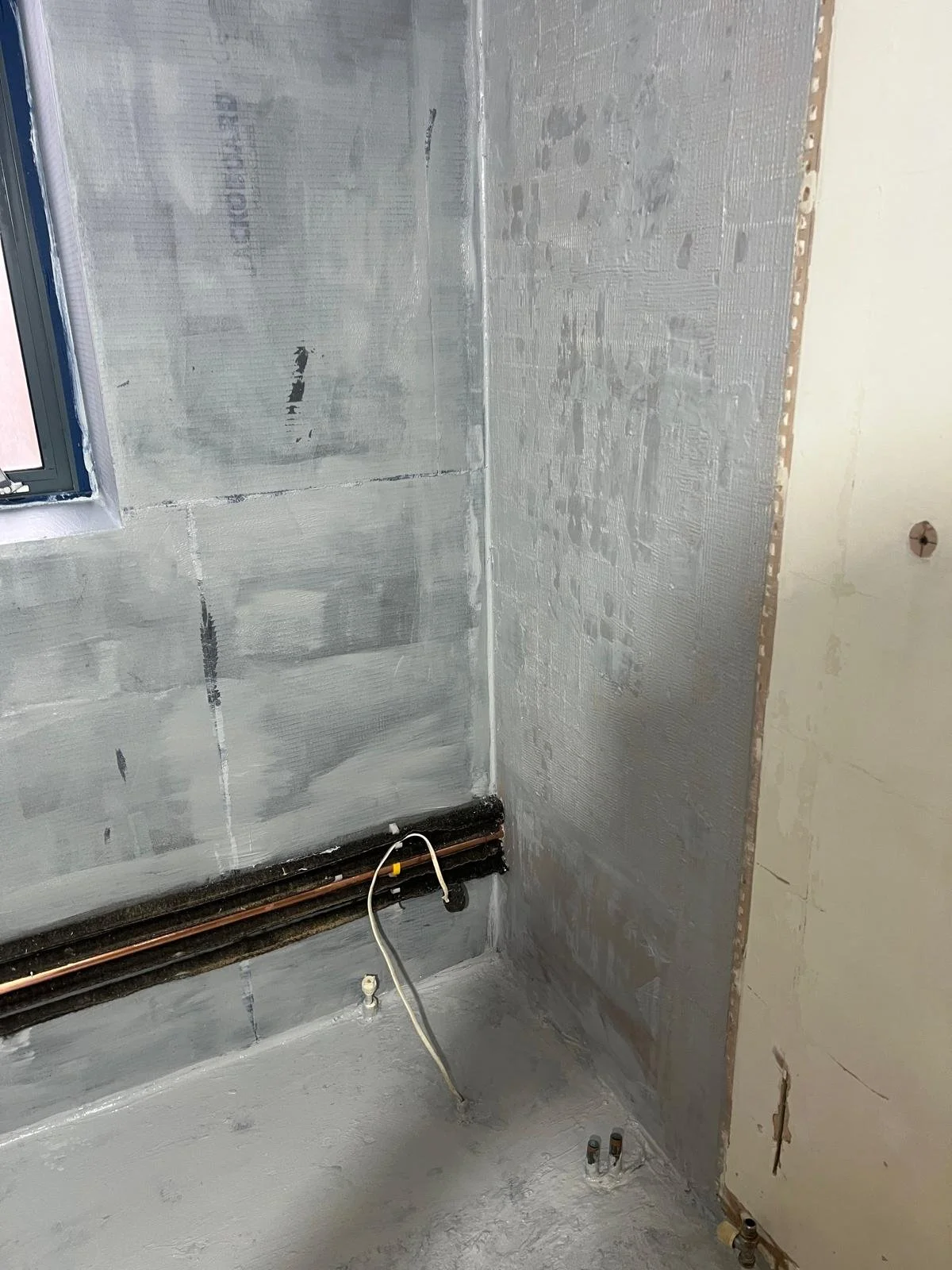

Interior view of a room under renovation with partially covered walls, exposed piping, and a window.

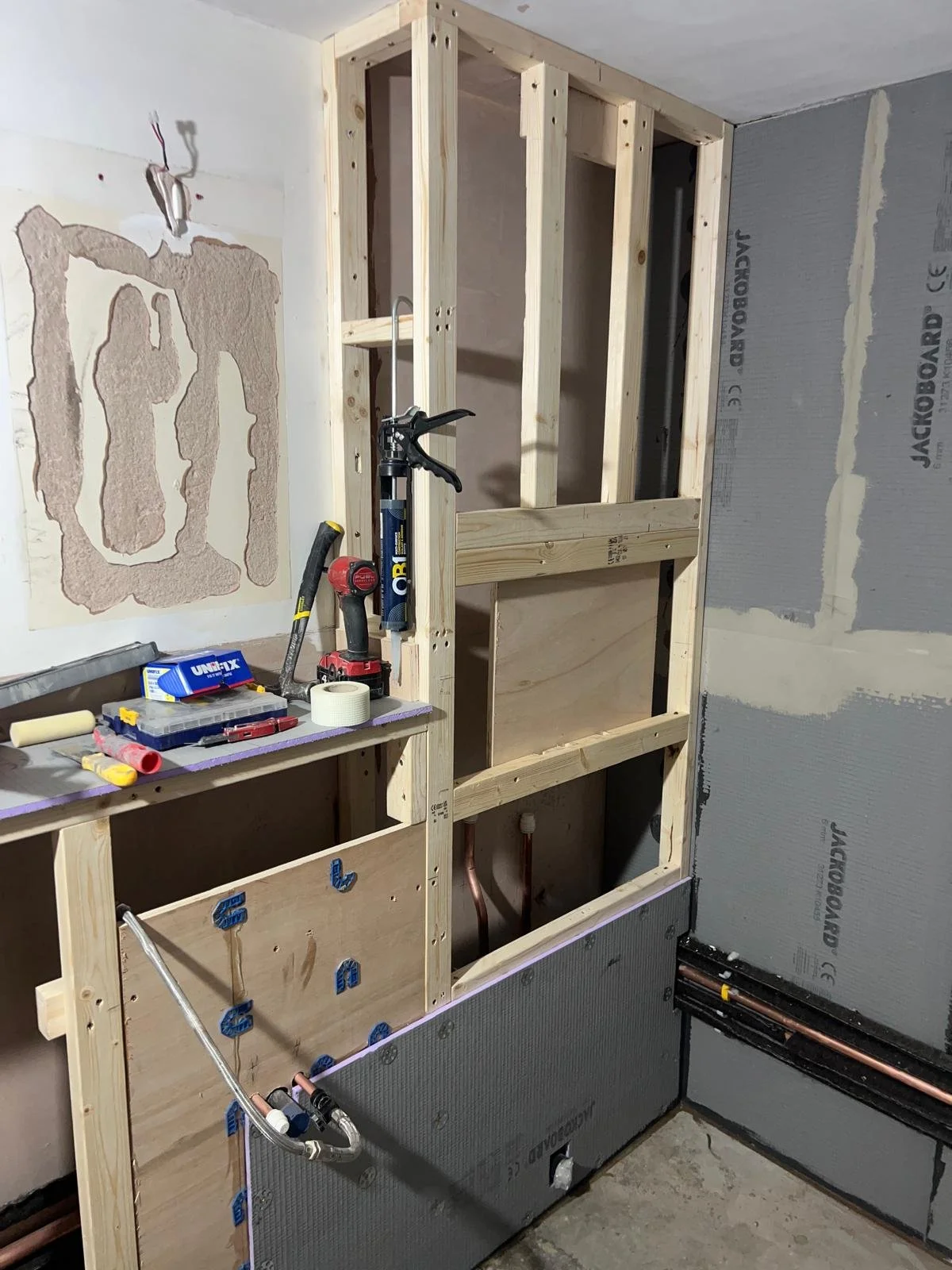

Bathroom construction site with exposed wooden framing, tools, and plumbing pipes. Part of the wall is covered with drywall and insulation.

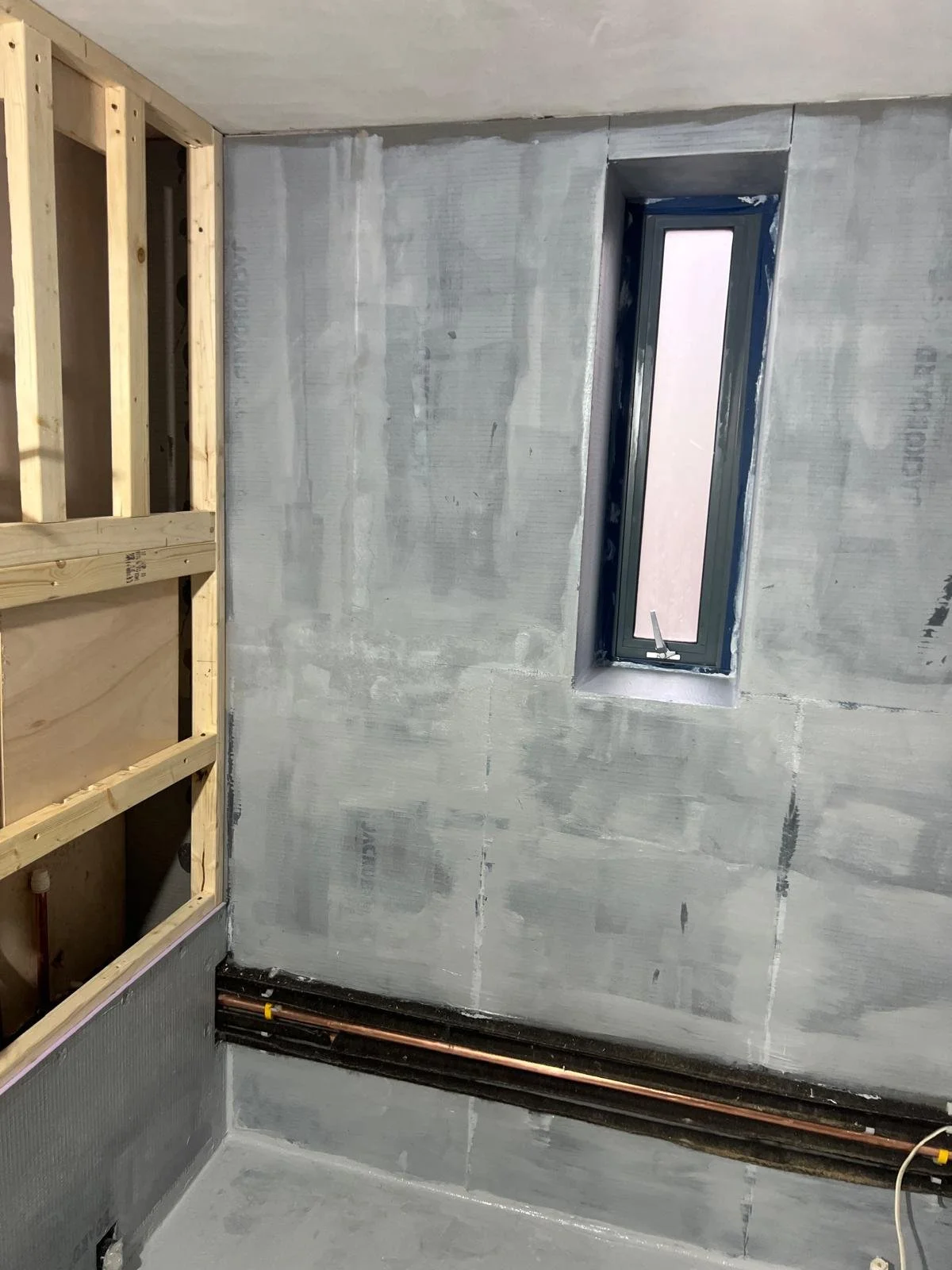

Interior of a room under construction with unfinished drywall, a narrow vertical window, and exposed plumbing pipes along the base wall.

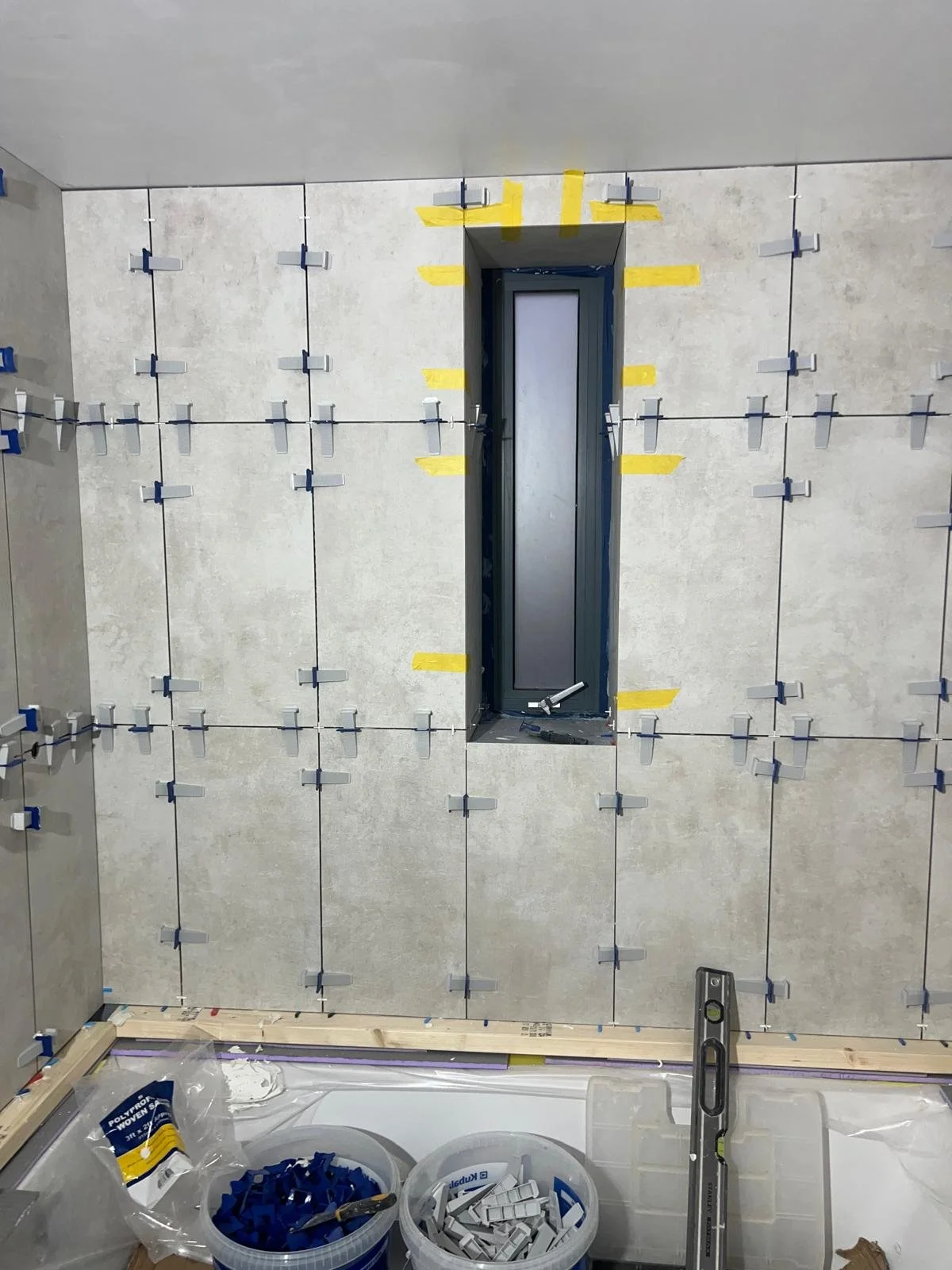

Bathroom wall with tiles being installed, with a small vertical window and construction tools and materials in the foreground.

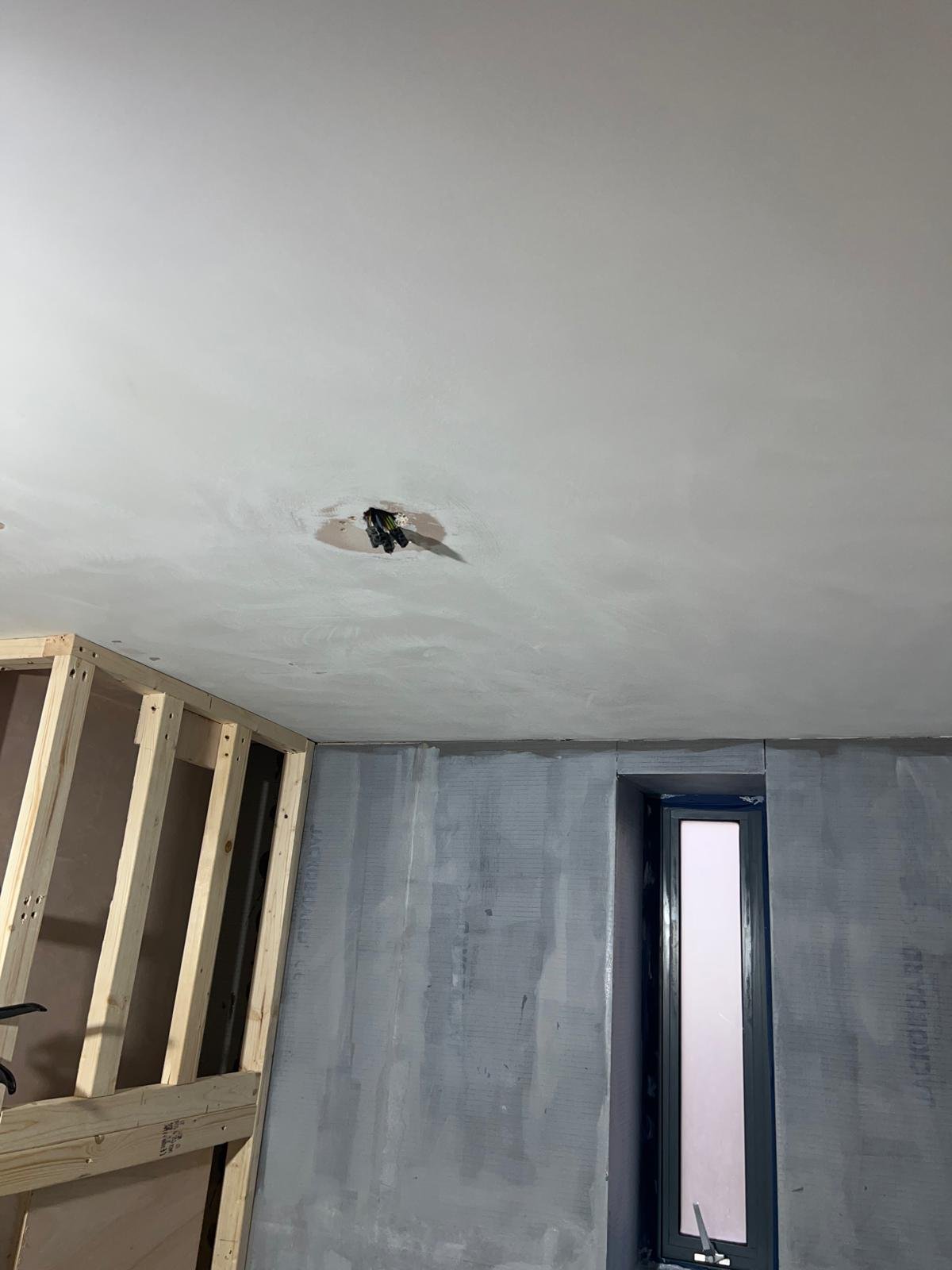

Interior of a room under construction with a partially installed ceiling, a window, and wooden framing for drywall or other wall material.

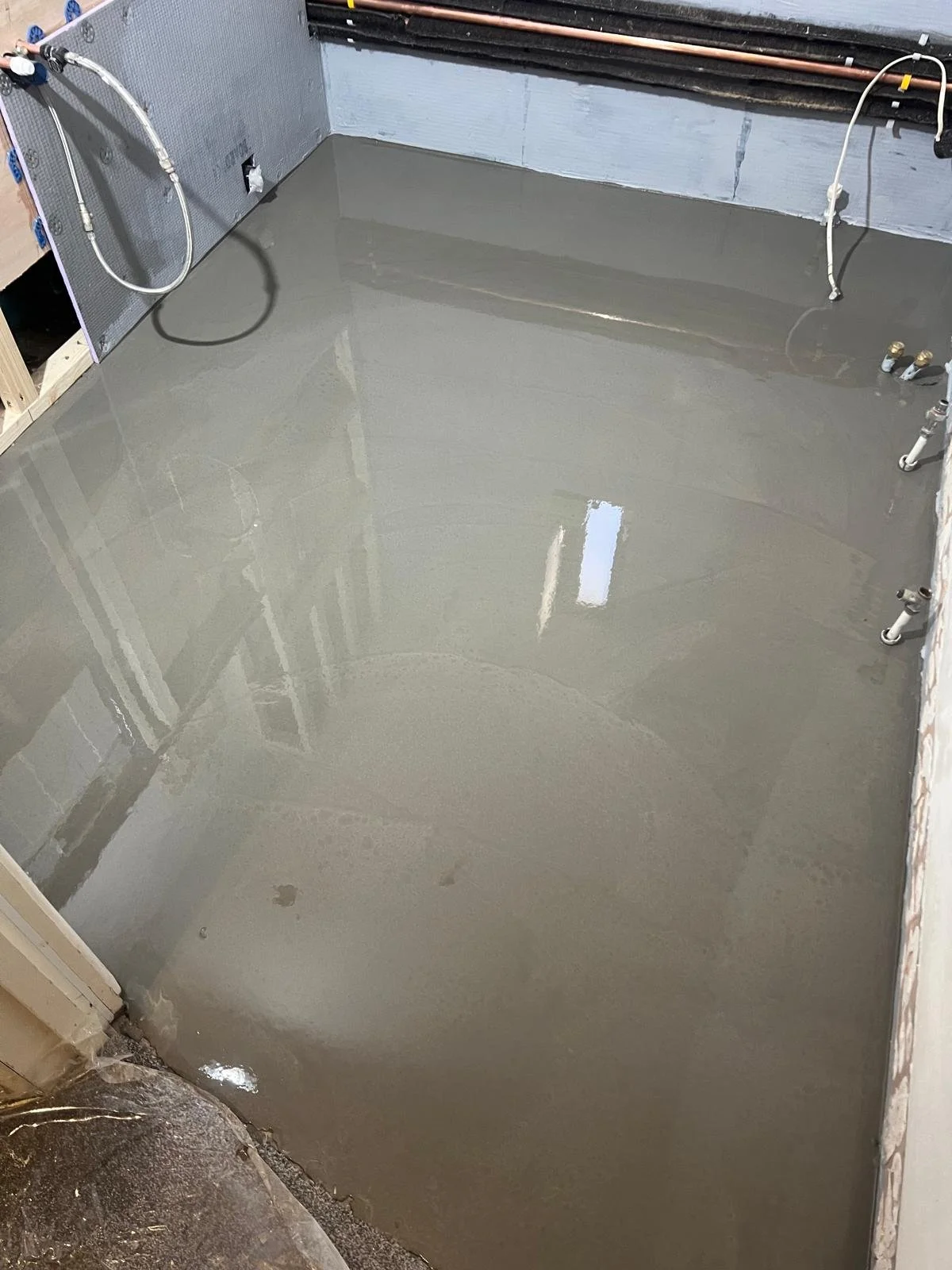

Freshly poured concrete floor in a construction site, with visible plumbing and electrical wiring.

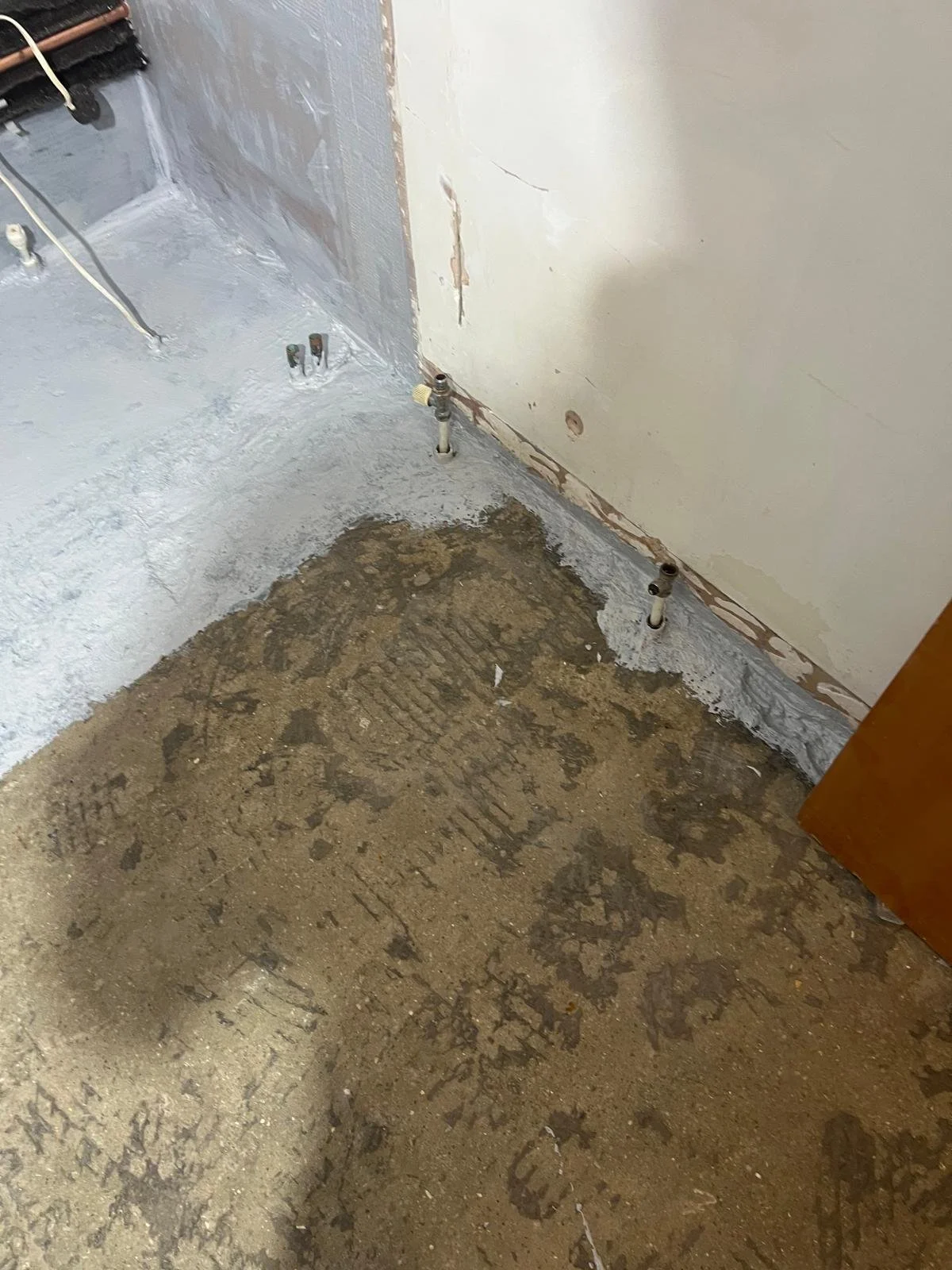

A room under renovation with a concrete subfloor and a wall with plumbing pipes protruding for a future fixture. The corner and base of the wall show exposed drywall and a partially finished coat of primer or paint.
Construction site showing a partially installed or repaired wall and floor with some insulation and piping visible.

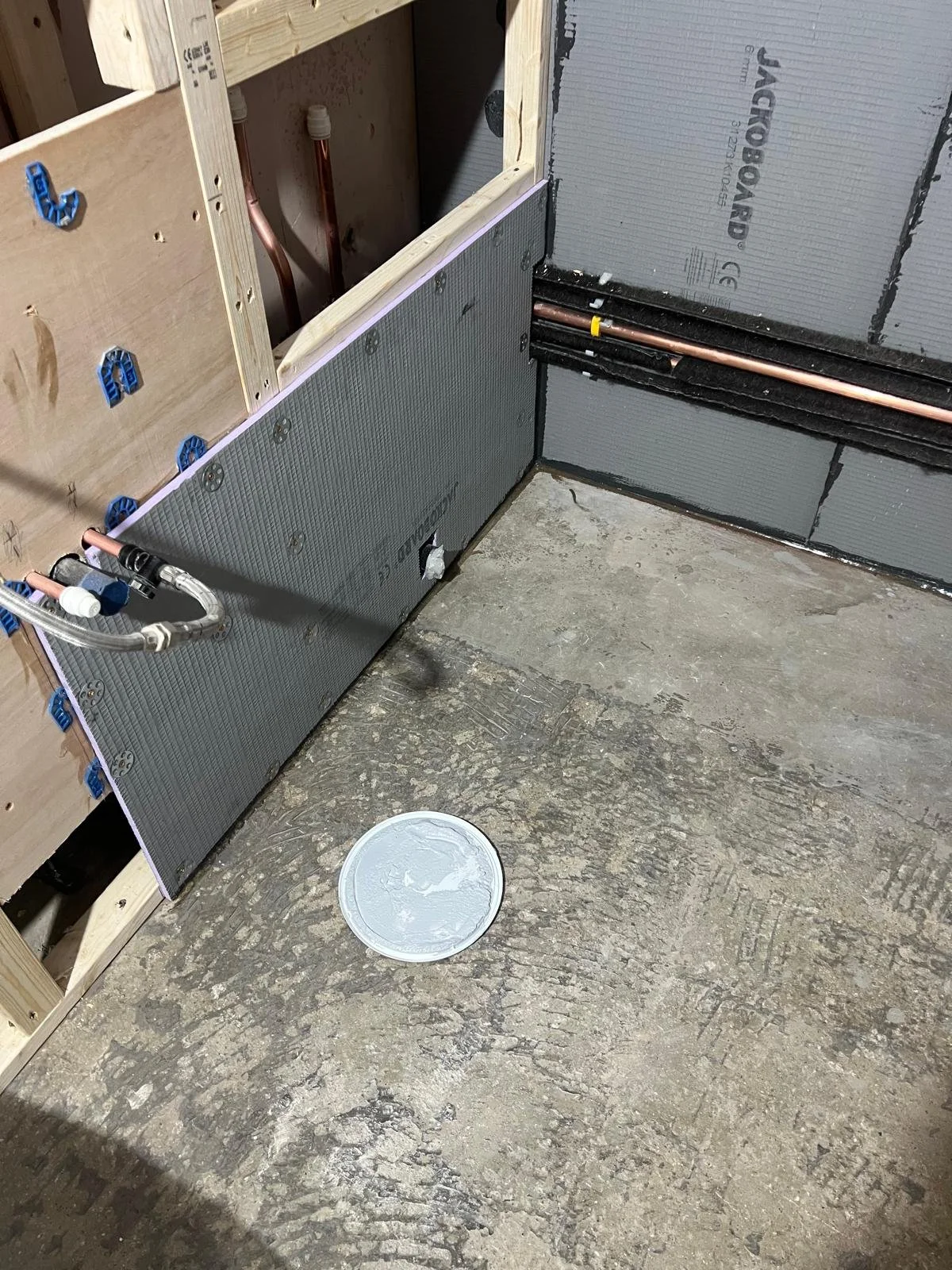

Construction site with plumbing and insulation materials, unfinished wooden framing, and a concrete floor.

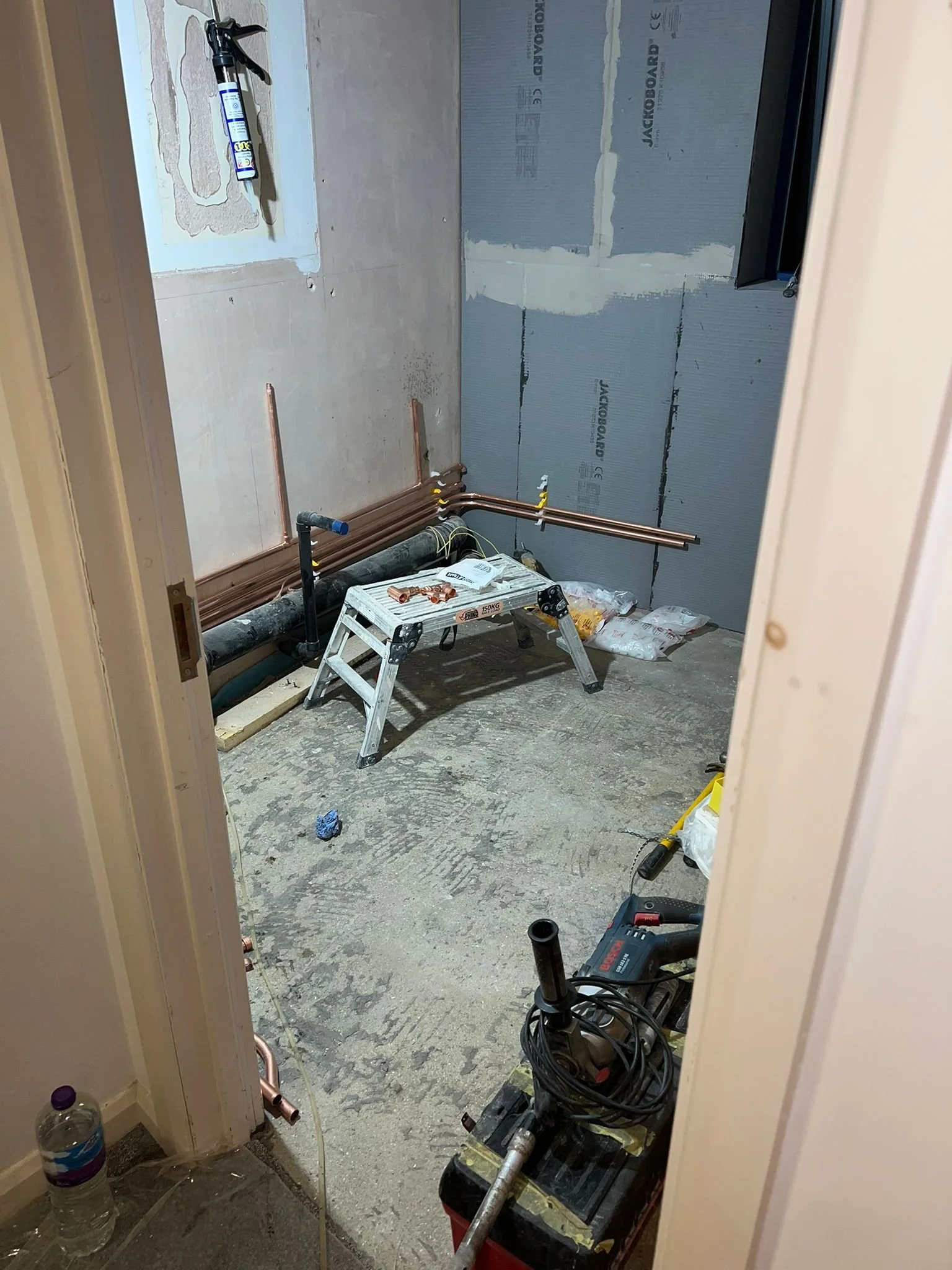

A room under construction with exposed copper pipes, construction tools, a level, a water bottle, and unfinished drywall on the walls.

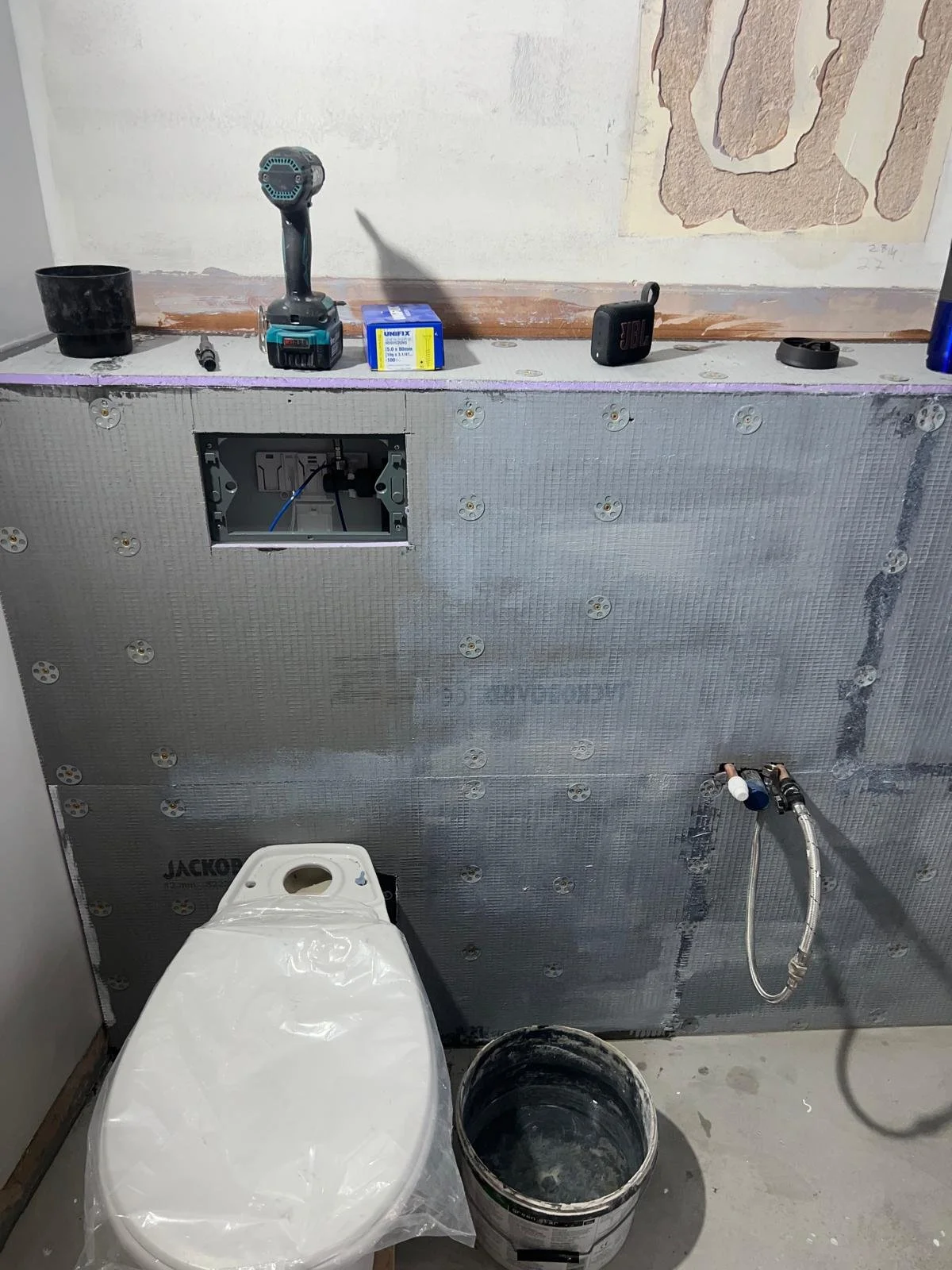

Bathroom under renovation showing a partially installed toilet and plumbing, with tools and materials on the wall behind.

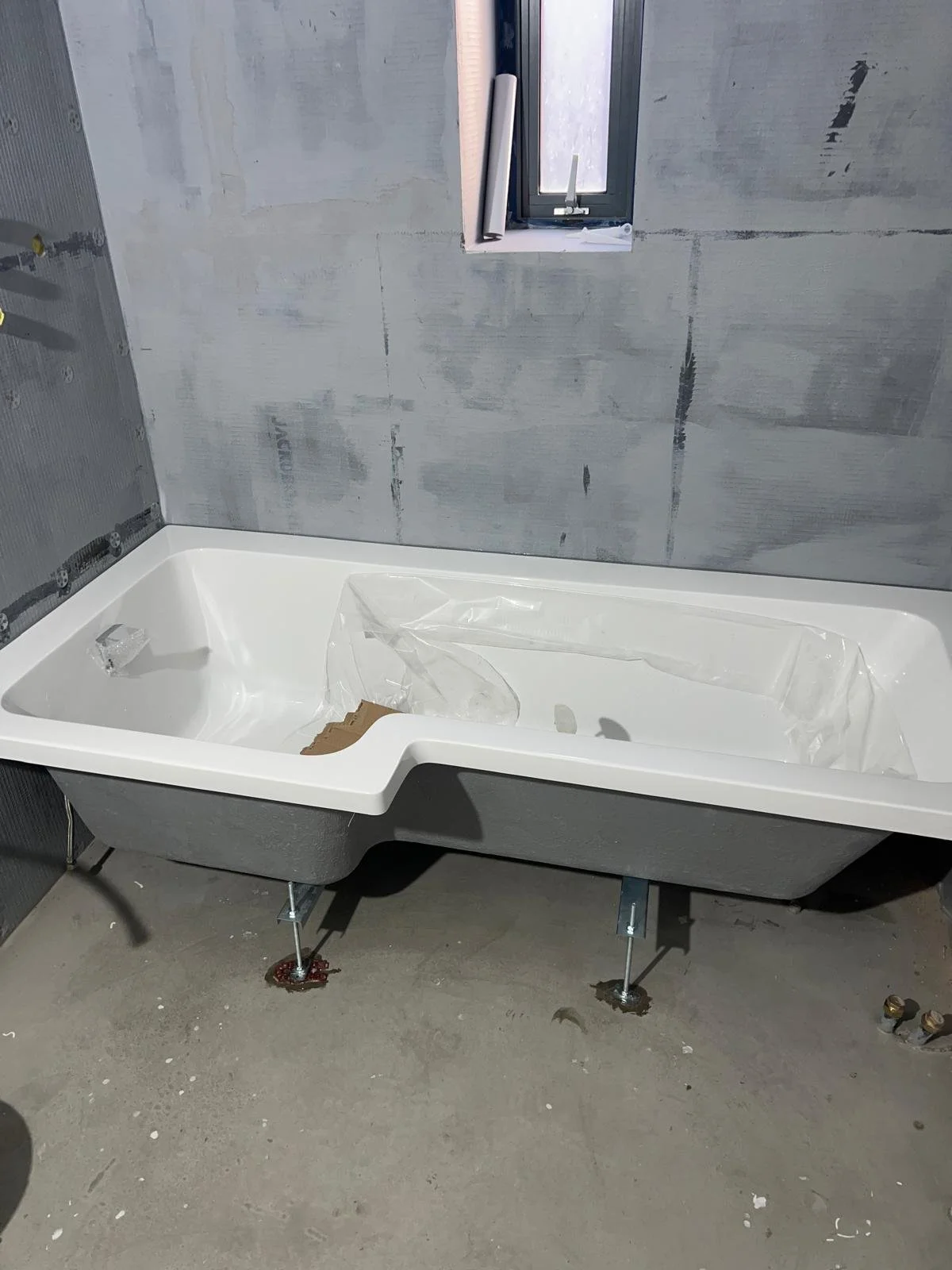

A bathroom under construction with a partially installed bathtub and unfinished wall drywall.
Bathroom under construction with vanity sink installed, a small window, and unfinished walls with exposed plumbing.

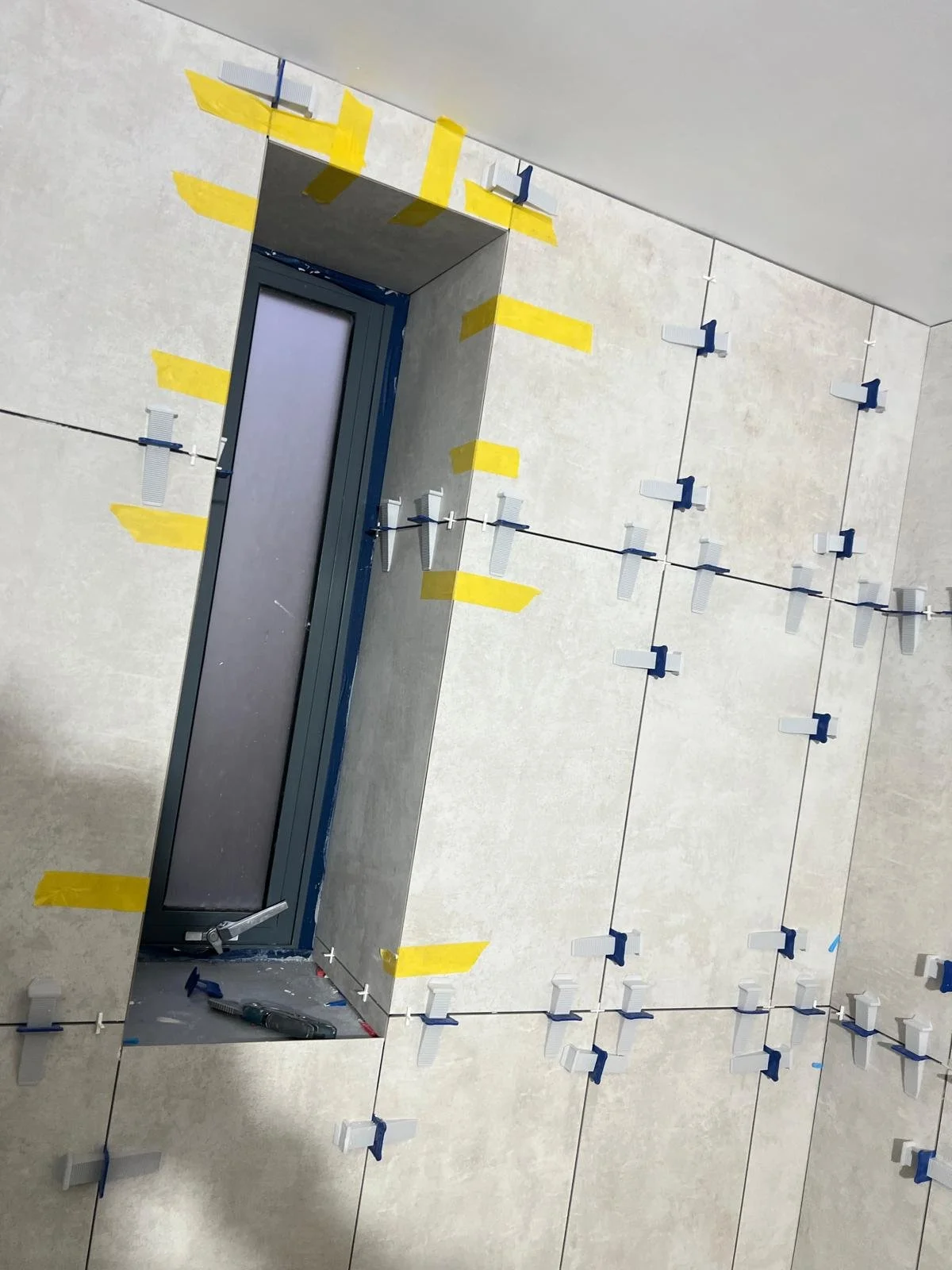

Bathroom wall with tile installation in progress, tiles are being secured with spacers and masking tape around the window frame.

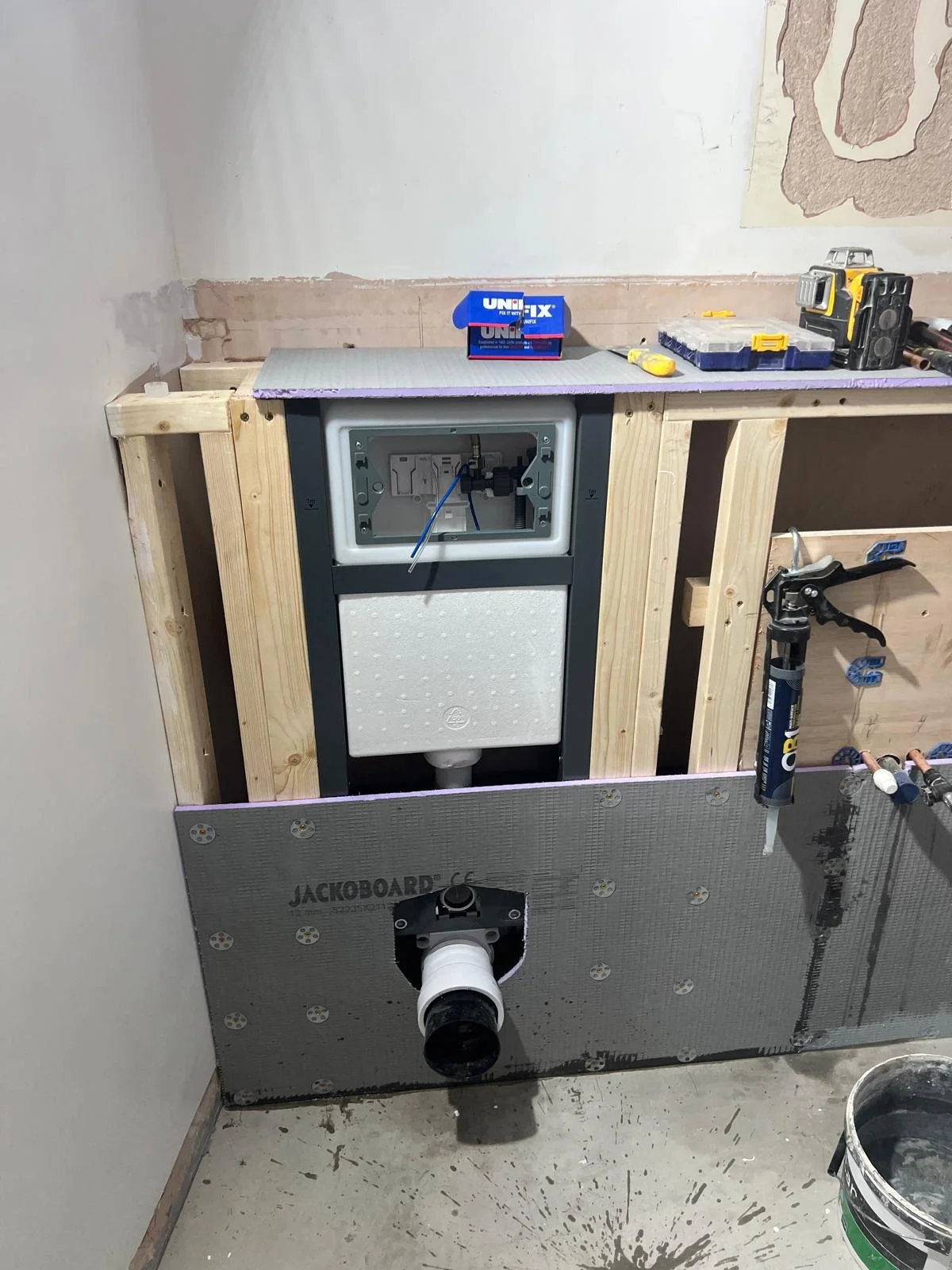

Interior of a bathroom under construction showing a toilet frame and plumbing, with tools and materials on a wooden ledge.

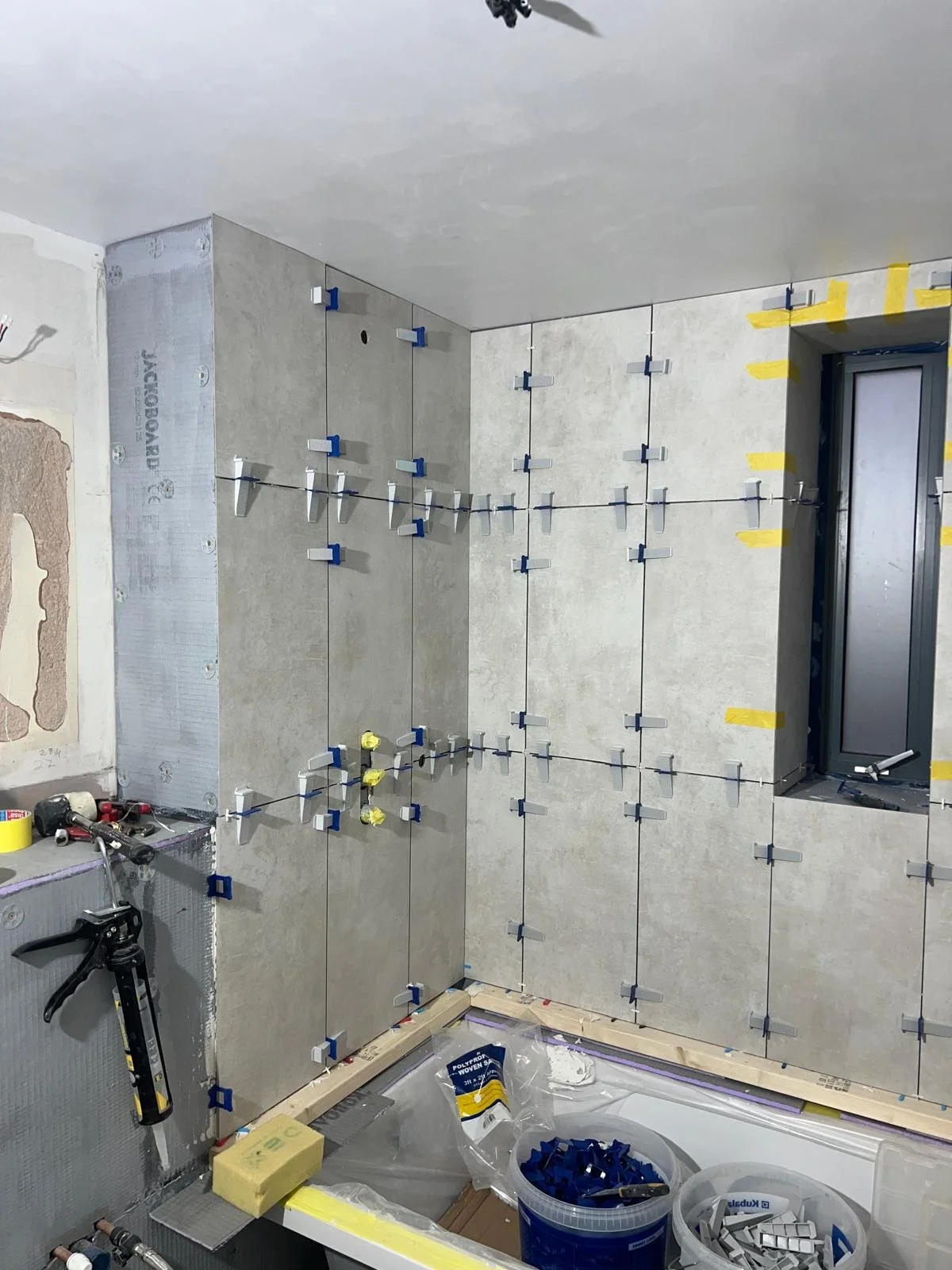

Interior wall under construction with tiles being installed, with tile spacers and tools visible.

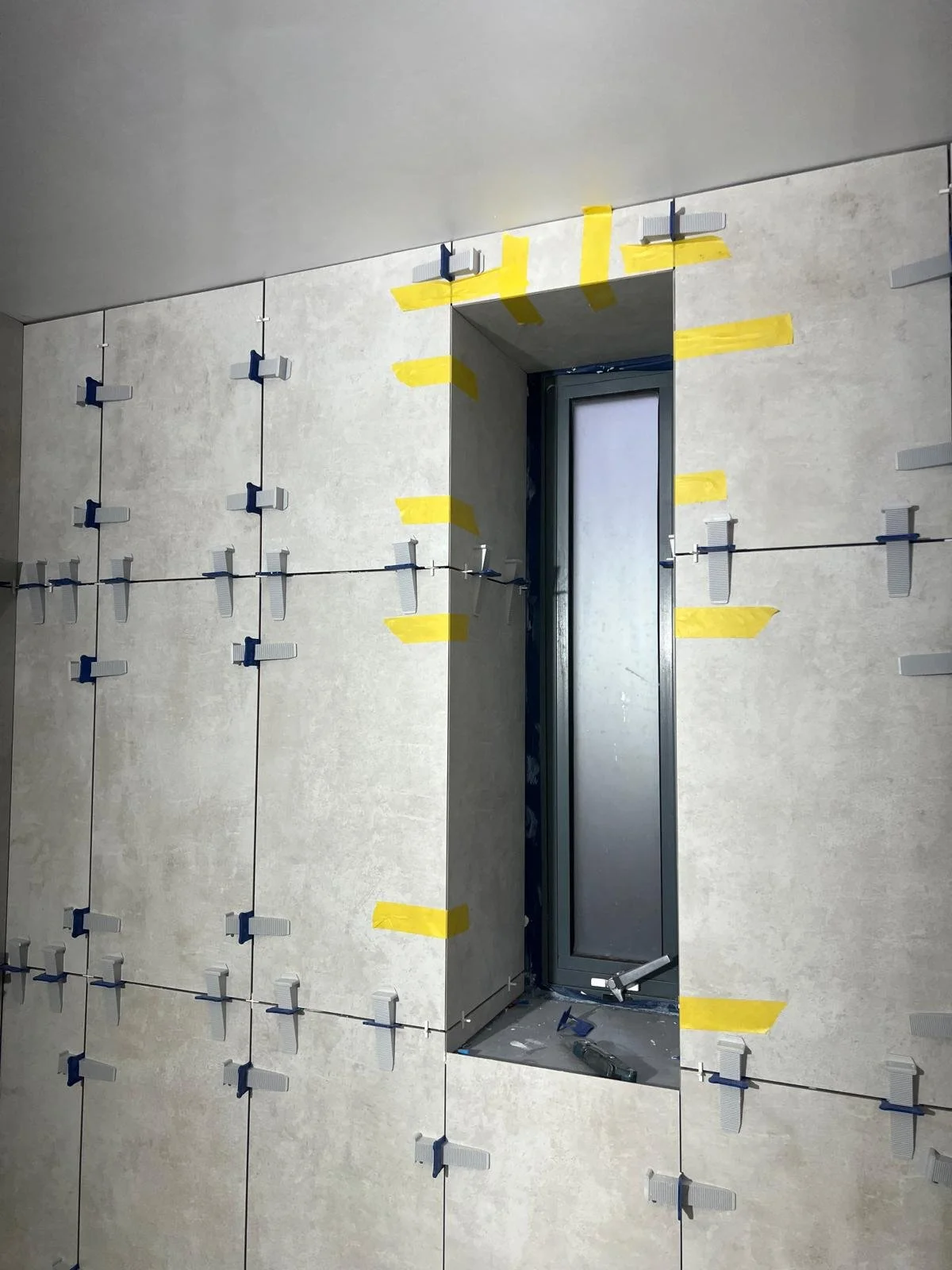

Wall with gray tiles installed and tile spacers and yellow painter's tape around a window opening during construction.

Final Result

A fully re-engineered system, combined with a properly constructed bathroom environment.

Everything is now:

  • accessible

  • controlled

  • and built for long-term performance

What was once hidden and failing is now structured, reliable, and designed to last.

This project was never about fixing a leak.
It was about correcting the system that caused it.

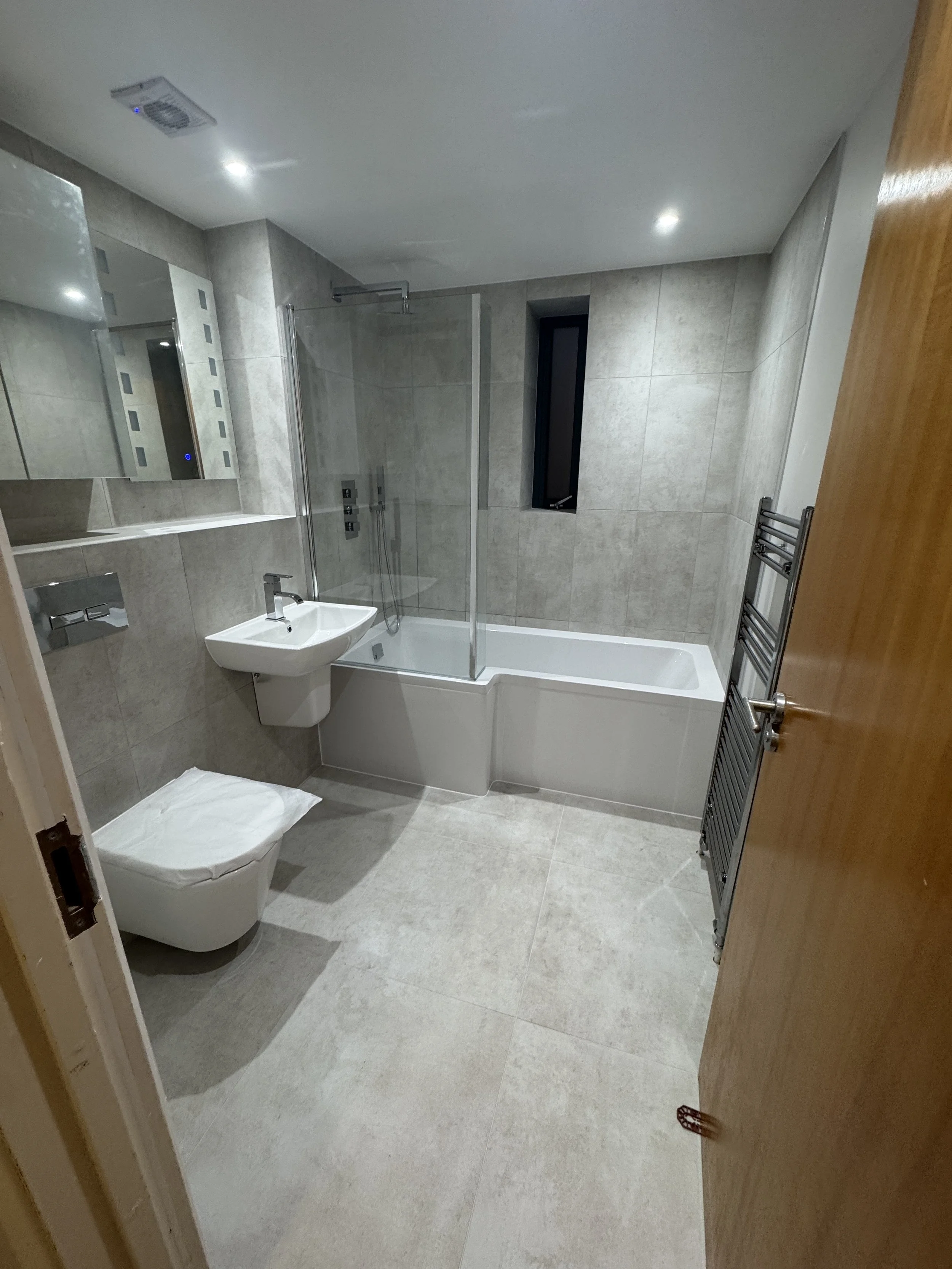

Modern bathroom with beige tiled walls and floor, a white toilet with a cloth on top, a small white sink, a mirrored cabinet, a glass shower enclosure, a narrow black window, metallic towel radiator, and wooden door.

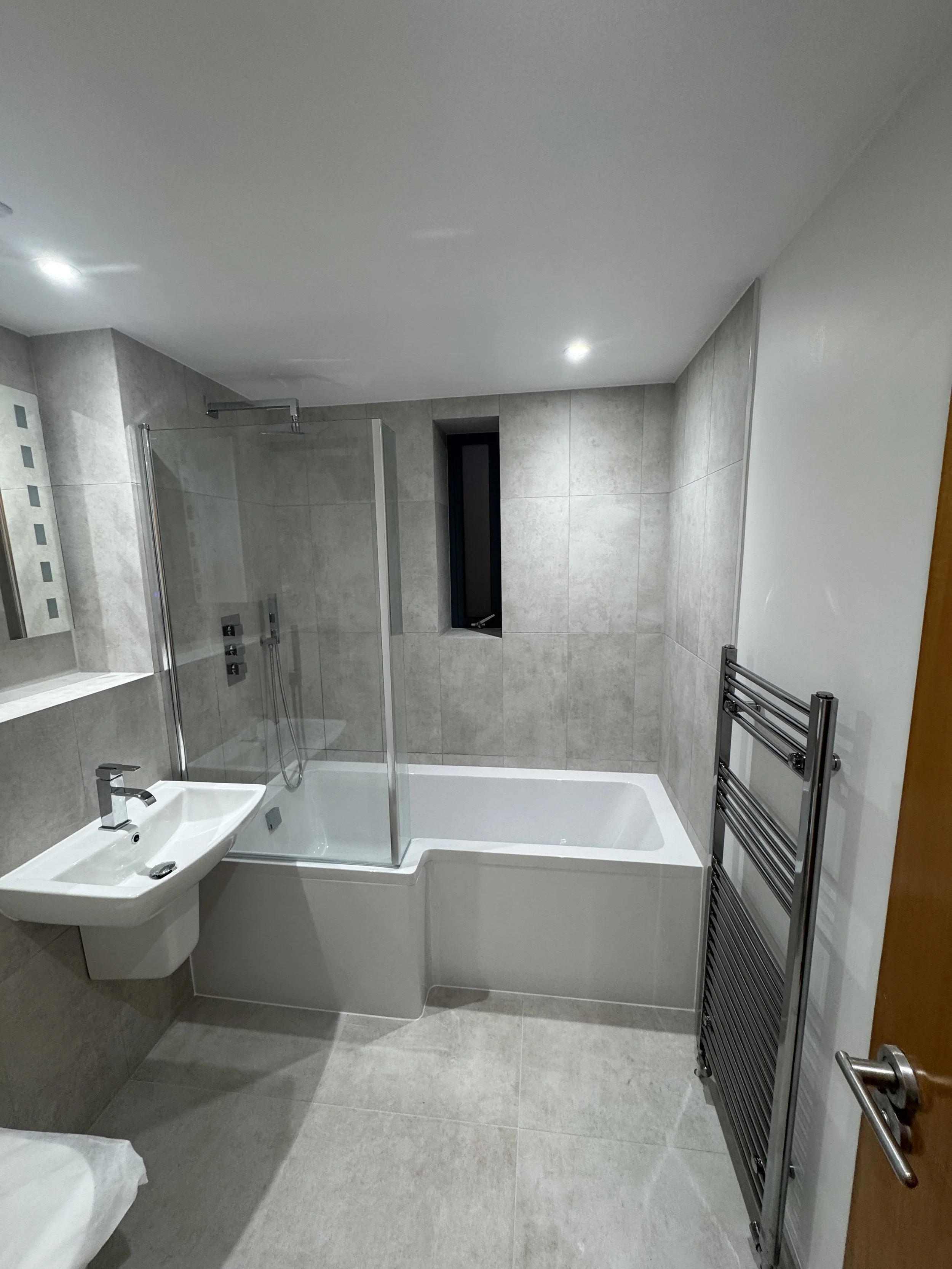

Modern bathroom with gray tiled walls and floor, featuring a bathtub with a glass shower screen, a small white sink, a window, and a wall-mounted heated towel rail.

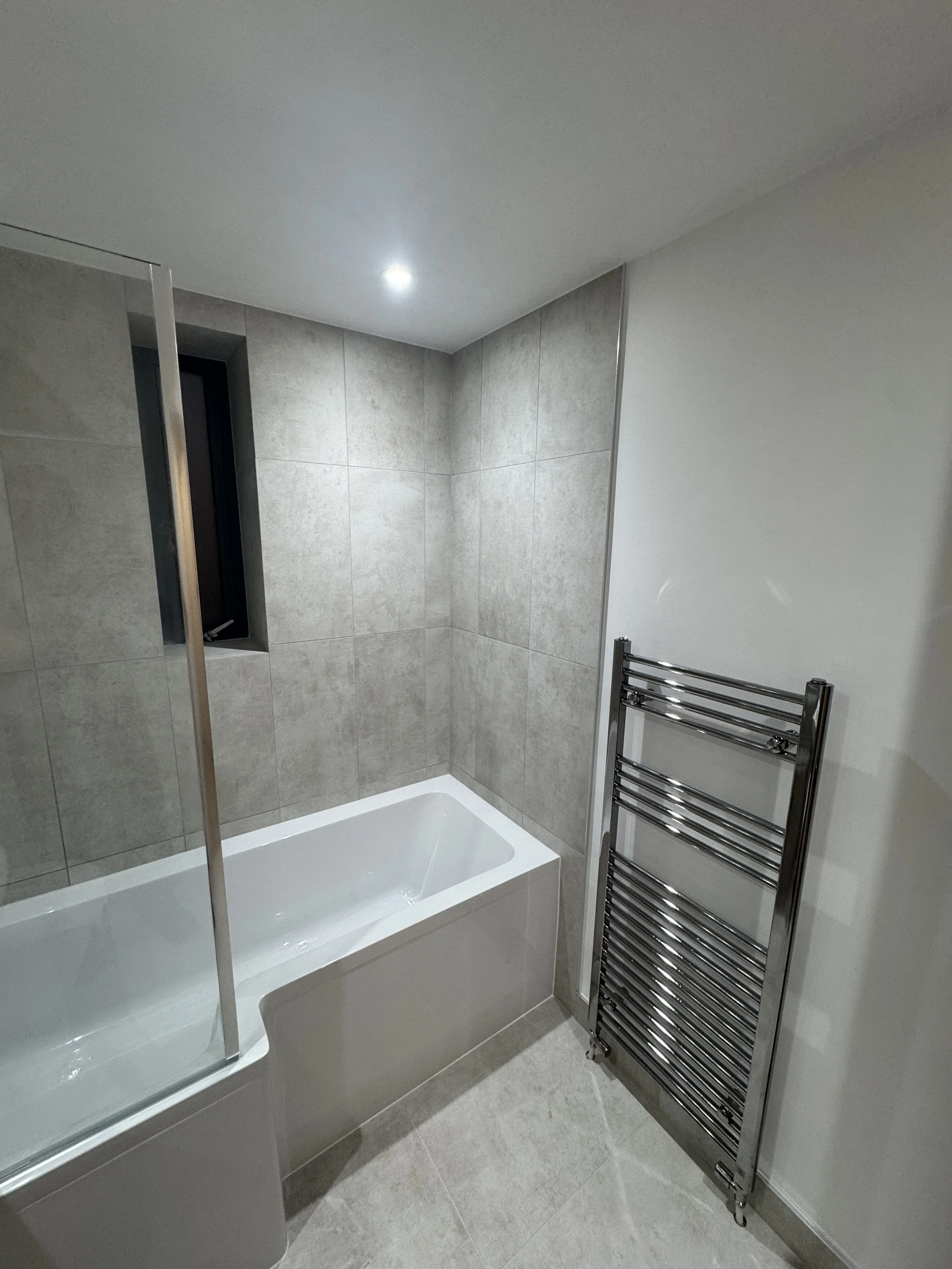

A modern bathroom with a bathtub, gray tiled walls, a small window, and a shiny silver heated towel rack.

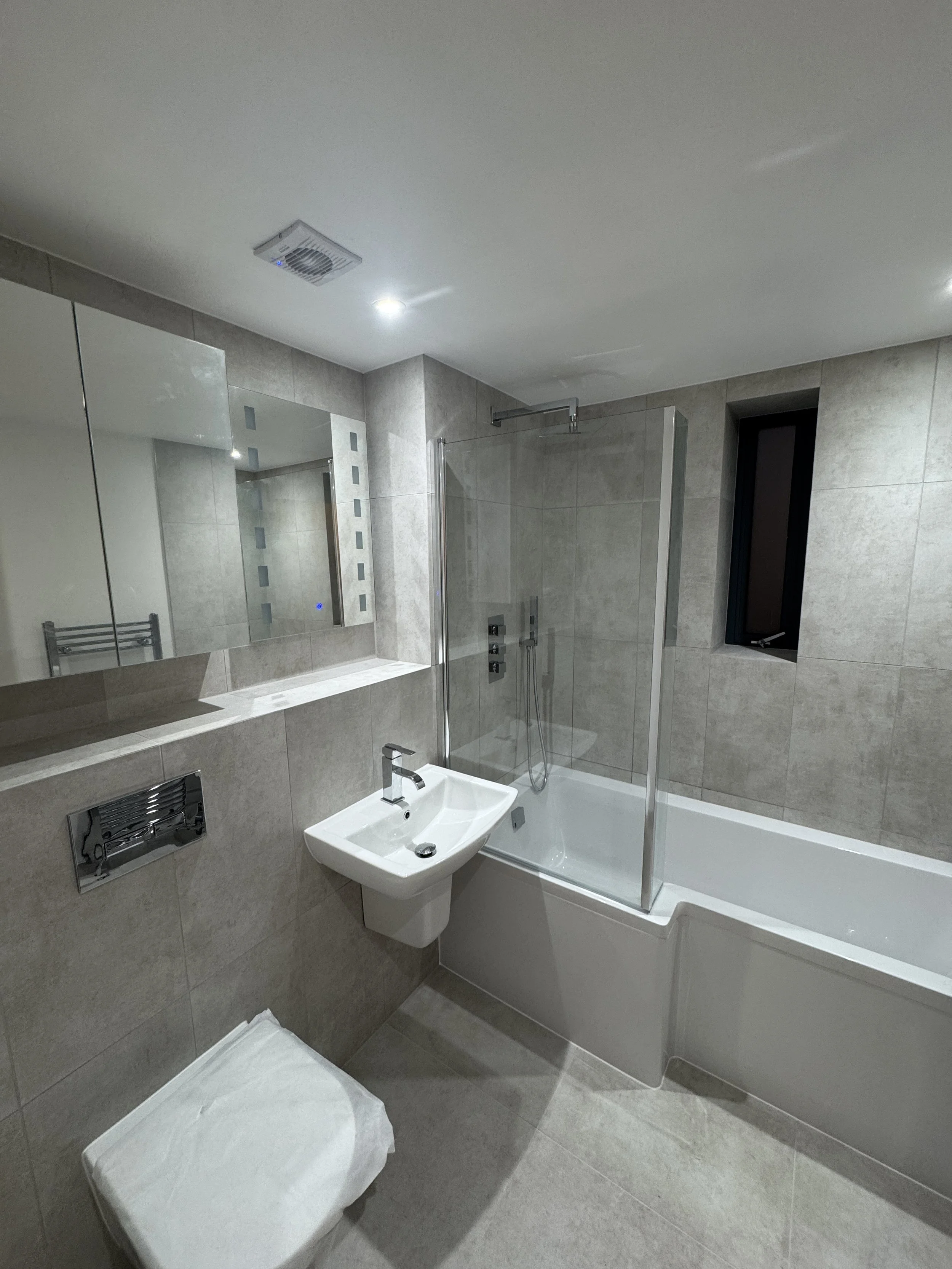

Modern bathroom with gray tiled walls and floor, a white sink, a bathtub with a glass shower enclosure, a large mirror, a small window, and a towel rail.

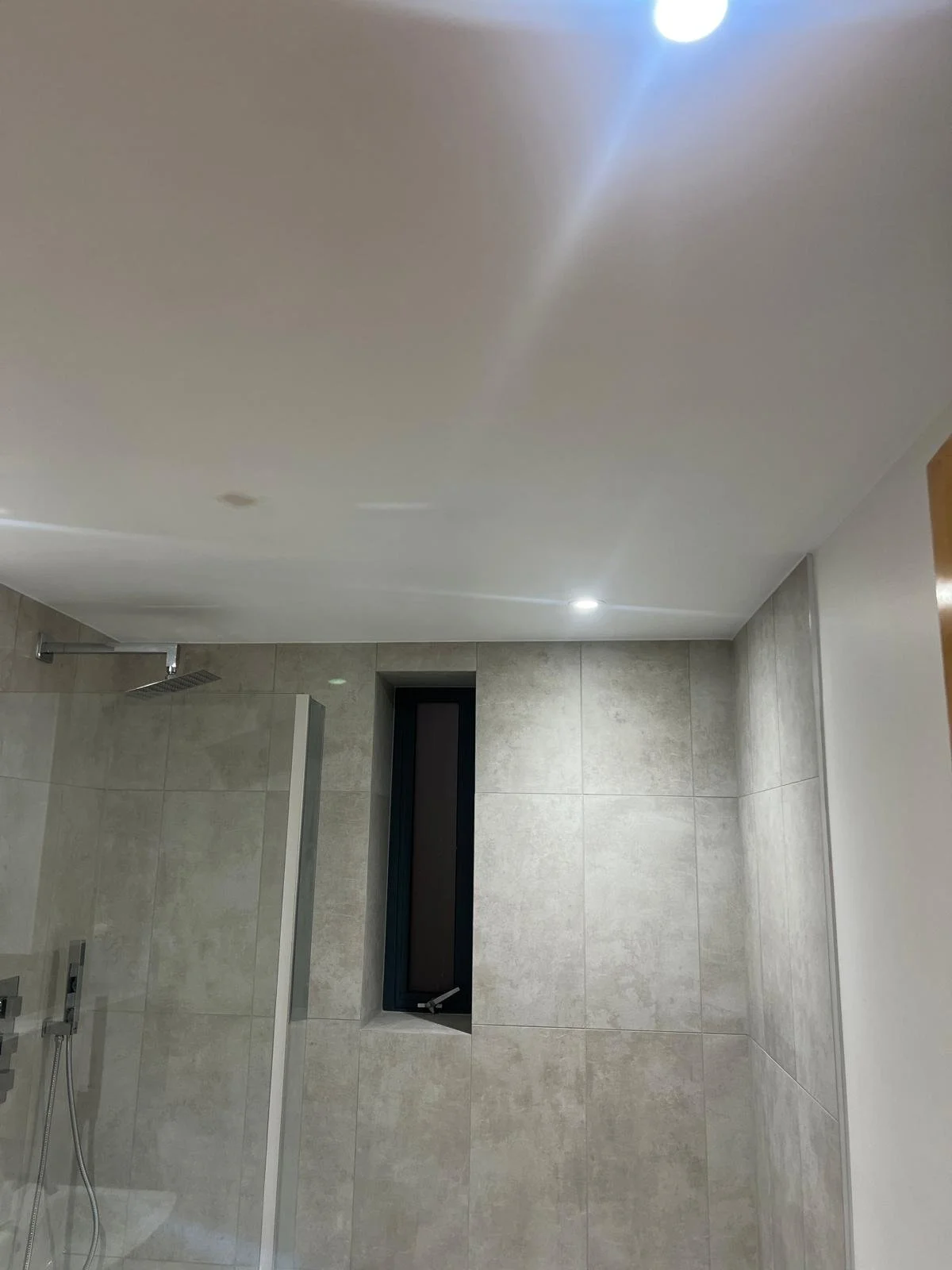

A modern bathroom with beige tiled walls, a shower area with a showerhead, a tall narrow window, and ceiling lights.

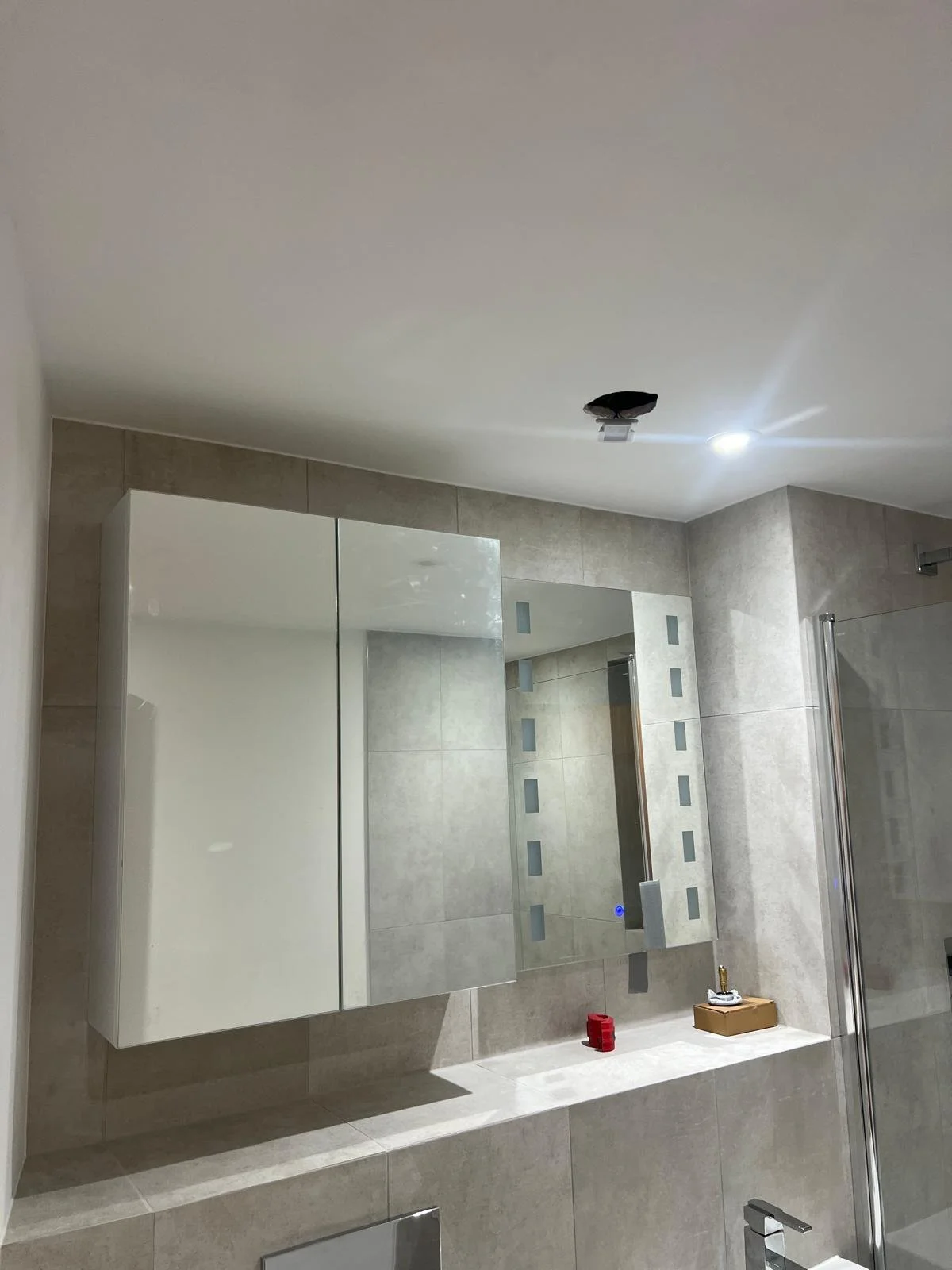

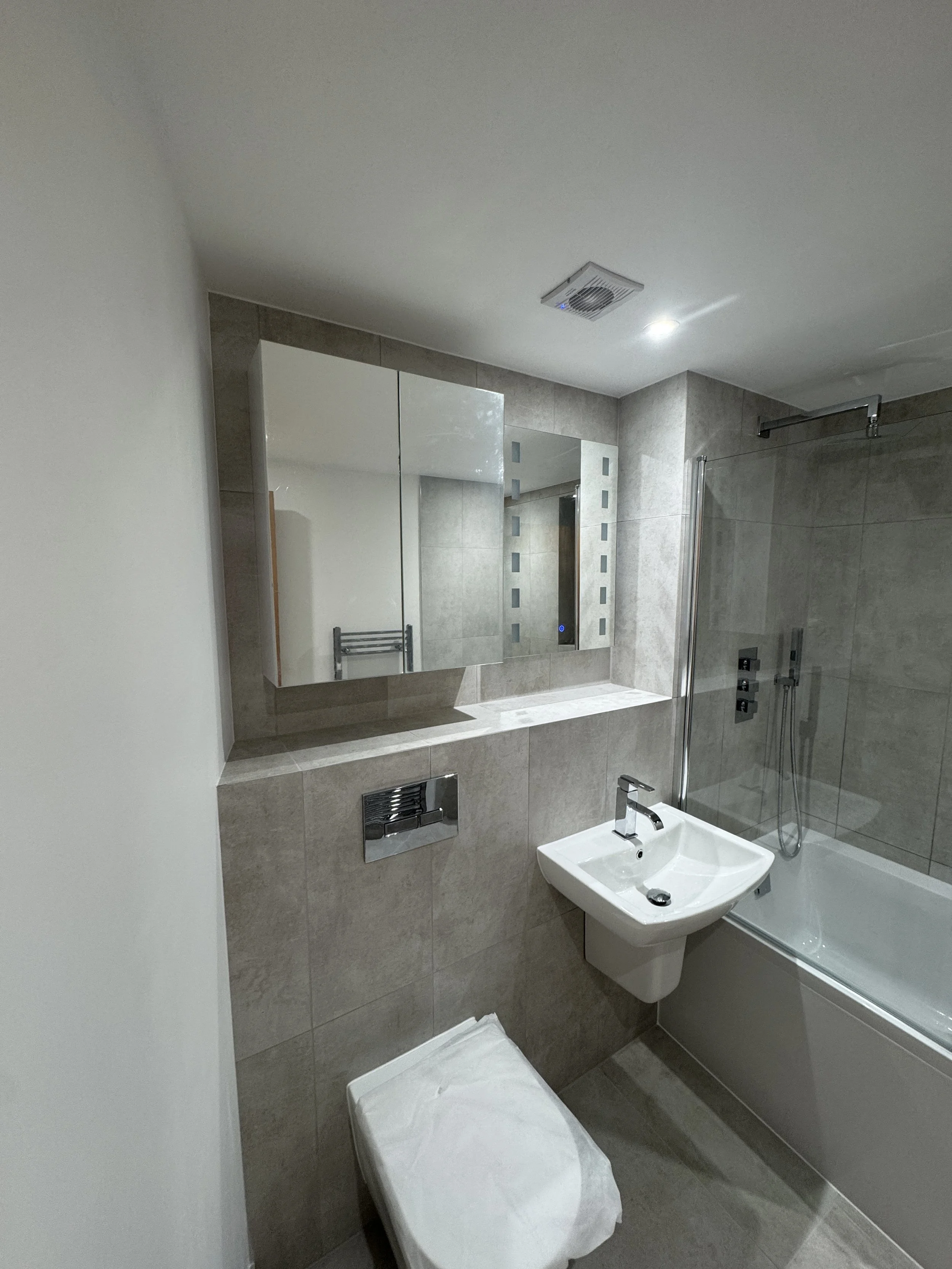

A modern bathroom featuring a wall-mounted mirror, a small rectangular sink with a chrome faucet, a wall-mounted toilet, a bathtub with a glass shower enclosure, and gray tiled walls. There is a towel heater mounted on the wall and an exhaust vent in
